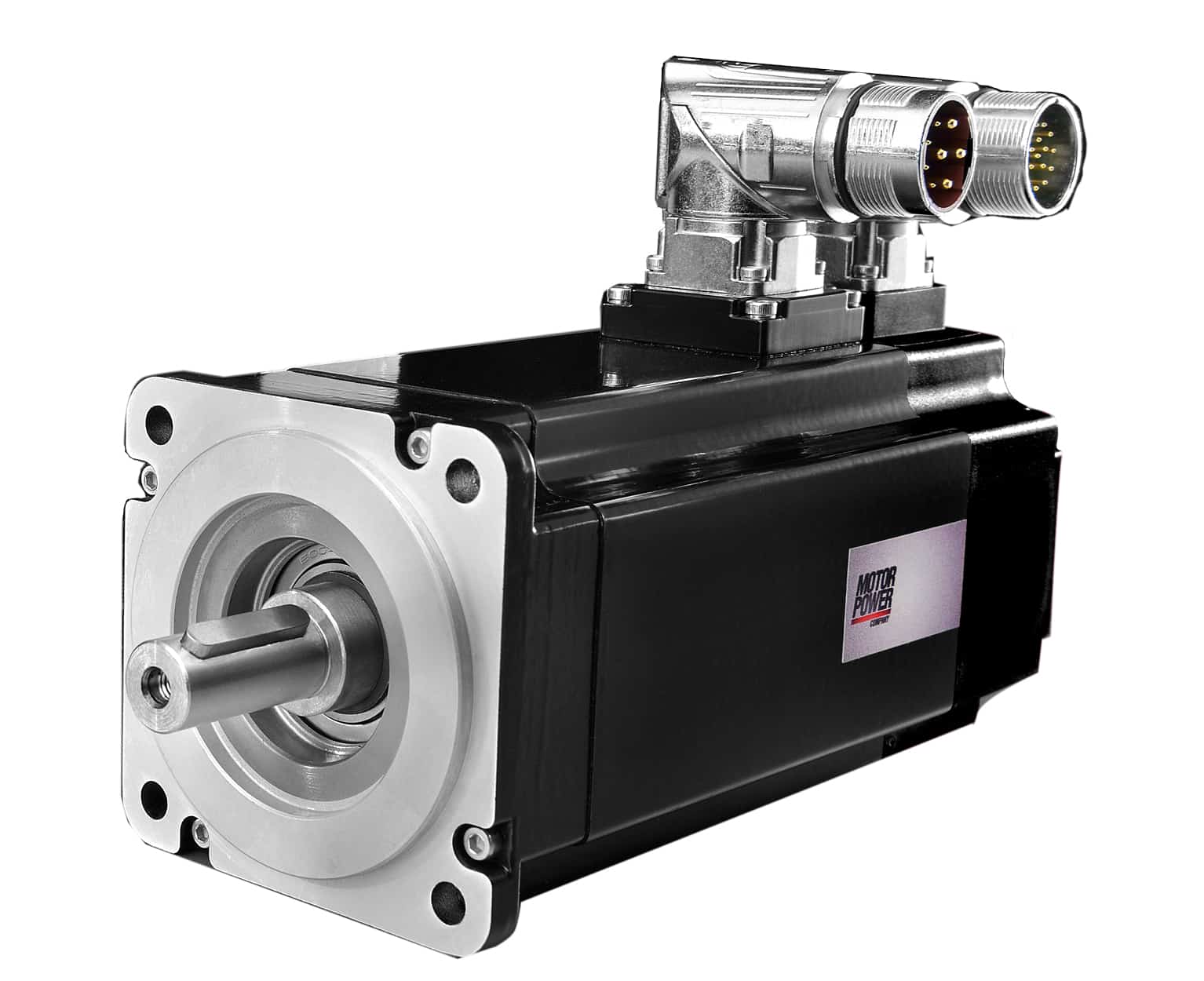

TC-X 60

Name: TC-X 60 - KOCO MOTION
SKU: TC-X 60

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 60 mm
Rated Output Power: 200 – 370 W
Rated Torque: 0,64 – 1,18 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-X 60 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 60 mm
Rated Output Power: 200 – 370 W
Rated Torque: 0,64 – 1,18 Nm
Rated Speed: 3000 rpm

Produktvergleich

Specification

Parameter	Unit	TC-X 60 0,65 21	TC-X 60 1,3 21	TC-X 60 1,3 15
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	0.69	1.31	1.31
Peak Torque (ambient temperature 0 to +40°C)	Nm	1.95	3.9	3.9
Nominal Torque (ambient temperature 0 to +40°C)	Nm	0.64	1.18	1.18
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	230	230	400
Nominal power (ambient temperature 0 to +40°C)	W	200	370	370
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	1.31	2.49	1.44
Maximun Current (ambient temperature 0 to +40°C)	Arms	3.71	7.41	4.29
Nominal Current (ambient temperature 0 to +40°C)	Arms	1.25	2.31	1.33
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000	3000	3000
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	5000	5000	3900
Maximum working speed 400VAC (ambient temperature 0 to +40°C)		–	–	5000
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.526	0.526	0.91
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	31.8	31.8	55
Winding resistance (ambient temperature 0 to +40°C)	Ω	12.9	4.2	14.4
Winding inductance (ambient temperature 0 to +40°C)	mH	26.5	14.9	41.8
Electrical time constant (ambient temperature 0 to +40°C)	ms	2.05	3.55	2.9
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	1.89	1.41	1.41
Mechanical time constant (ambient temperature 0 to +40°C)	ms	0.91	0.55	0.63
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.13	0.24	0.24
Mass (ambient temperature 0 to +40°C)	Kg	1.1	1.5	1.5
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	70	70	70
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	220	220	220

Family Specification

Family Specification	Unit	TC-X 60
Time Rating		Continous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		PT1000
Certification		CE

Family Overview

Family Overview	Unit	TC-X 60
Flange dimensions	mm	60
Rated Output Power	Watt	200 – 370
Rated Torque	Nm	0,64 – 1,18
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) G2 – 90° M23 turnable connectors – PT 1000 on power connector H2 – 90° M23 turnable connectors – PT 1000 on signal connector

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 60

TX-X-60-Specs-40°C-to-80°C.pdf (pdf, 321.34K)

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

TC-X-60-Dimensions.pdf (pdf, 452.91K)

Datenblatt

TC-X-60-Torque-Speed-Chart.pdf (pdf, 622.45K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Name

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC-X 60 0,65 21
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	0.69
Peak Torque (ambient temperature 0 to +40°C)	Nm	1.95
Nominal Torque (ambient temperature 0 to +40°C)	Nm	0.64
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	230
Nominal power (ambient temperature 0 to +40°C)	W	200
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	1.31
Maximun Current (ambient temperature 0 to +40°C)	Arms	3.71
Nominal Current (ambient temperature 0 to +40°C)	Arms	1.25
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	5000
Maximum working speed 400VAC (ambient temperature 0 to +40°C)		–
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.526
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	31.8
Winding resistance (ambient temperature 0 to +40°C)	Ω	12.9
Winding inductance (ambient temperature 0 to +40°C)	mH	26.5
Electrical time constant (ambient temperature 0 to +40°C)	ms	2.05
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	1.89
Mechanical time constant (ambient temperature 0 to +40°C)	ms	0.91
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.13
Mass (ambient temperature 0 to +40°C)	Kg	1.1
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	70
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	220

Family Specification

Family Specification	Unit	TC-X 60 0,65 21
Time Rating		Continous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		PT1000
Certification		CE

Family Overview

Family Overview	Unit	TC-X 60 0,65 21
Flange dimensions	mm	60
Rated Output Power	Watt	200 – 370
Rated Torque	Nm	0,64 – 1,18
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 60

TX-X-60-Specs-40°C-to-80°C.pdf (pdf, 321.34K)

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

TC-X-60-Dimensions.pdf (pdf, 452.91K)

Datenblatt

TC-X-60-Torque-Speed-Chart.pdf (pdf, 622.45K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Phone

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC-X 60 1,3 21
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	1.31
Peak Torque (ambient temperature 0 to +40°C)	Nm	3.9
Nominal Torque (ambient temperature 0 to +40°C)	Nm	1.18
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	230
Nominal power (ambient temperature 0 to +40°C)	W	370
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	2.49
Maximun Current (ambient temperature 0 to +40°C)	Arms	7.41
Nominal Current (ambient temperature 0 to +40°C)	Arms	2.31
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	5000
Maximum working speed 400VAC (ambient temperature 0 to +40°C)		–
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.526
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	31.8
Winding resistance (ambient temperature 0 to +40°C)	Ω	4.2
Winding inductance (ambient temperature 0 to +40°C)	mH	14.9
Electrical time constant (ambient temperature 0 to +40°C)	ms	3.55
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	1.41
Mechanical time constant (ambient temperature 0 to +40°C)	ms	0.55
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.24
Mass (ambient temperature 0 to +40°C)	Kg	1.5
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	70
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	220

Family Specification

Family Specification	Unit	TC-X 60 1,3 21
Time Rating		Continous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		PT1000
Certification		CE

Family Overview

Family Overview	Unit	TC-X 60 1,3 21
Flange dimensions	mm	60
Rated Output Power	Watt	200 – 370
Rated Torque	Nm	0,64 – 1,18
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 60

TX-X-60-Specs-40°C-to-80°C.pdf (pdf, 321.34K)

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

TC-X-60-Dimensions.pdf (pdf, 452.91K)

Datenblatt

TC-X-60-Torque-Speed-Chart.pdf (pdf, 622.45K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Phone

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC-X 60 1,3 15
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	1.31
Peak Torque (ambient temperature 0 to +40°C)	Nm	3.9
Nominal Torque (ambient temperature 0 to +40°C)	Nm	1.18
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	400
Nominal power (ambient temperature 0 to +40°C)	W	370
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	1.44
Maximun Current (ambient temperature 0 to +40°C)	Arms	4.29
Nominal Current (ambient temperature 0 to +40°C)	Arms	1.33
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	3900
Maximum working speed 400VAC (ambient temperature 0 to +40°C)		5000
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.91
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	55
Winding resistance (ambient temperature 0 to +40°C)	Ω	14.4
Winding inductance (ambient temperature 0 to +40°C)	mH	41.8
Electrical time constant (ambient temperature 0 to +40°C)	ms	2.9
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	1.41
Mechanical time constant (ambient temperature 0 to +40°C)	ms	0.63
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.24
Mass (ambient temperature 0 to +40°C)	Kg	1.5
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	70
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	220

Family Specification

Family Specification	Unit	TC-X 60 1,3 15
Time Rating		Continous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		PT1000
Certification		CE

Family Overview

Family Overview	Unit	TC-X 60 1,3 15
Flange dimensions	mm	60
Rated Output Power	Watt	200 – 370
Rated Torque	Nm	0,64 – 1,18
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 60

TX-X-60-Specs-40°C-to-80°C.pdf (pdf, 321.34K)

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

TC-X-60-Dimensions.pdf (pdf, 452.91K)

Datenblatt

TC-X-60-Torque-Speed-Chart.pdf (pdf, 622.45K)
