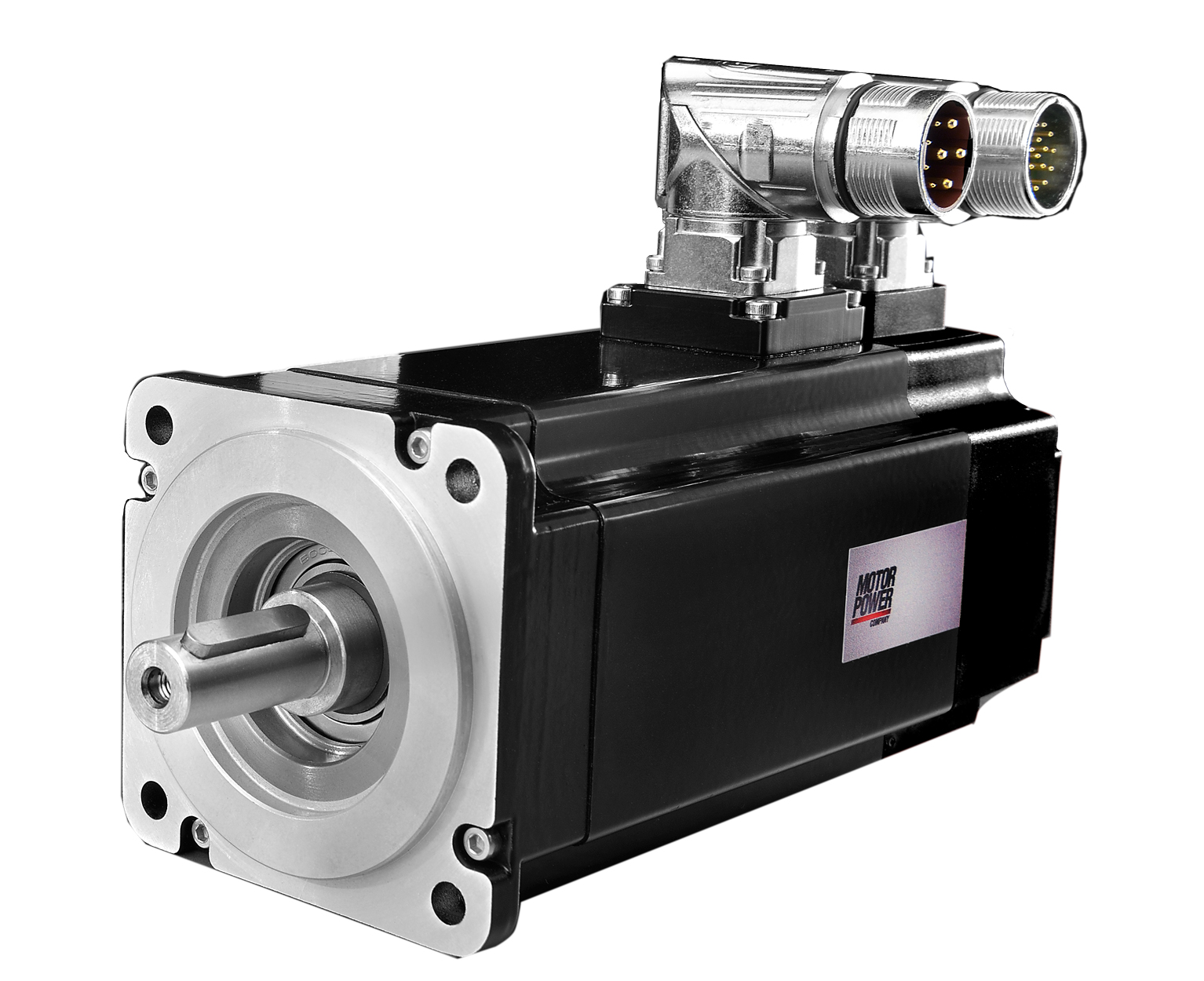

TC-X 40 0,32 01

Name: TC-X 40 0,32 01 - KOCO MOTION
SKU: TC-X 40 0,32 01

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-X 40 0,32 01 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Specification

Parameter	Unit	TC-X 40 0,32 01
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	0.34
Peak Torque (ambient temperature 0 to +40°C)	Nm	0.96
Nominal Torque (ambient temperature 0 to +40°C)	Nm	0.32
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	48
Nominal power (ambient temperature 0 to +40°C)	W	100
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	3.61
Maximun Current (ambient temperature 0 to +40°C)	Arms	10.18
Nominal Current (ambient temperature 0 to +40°C)	Arms	3.48
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000
Maximum working speed 24VDC (ambient temperature 0 to +40°C)	rpm	–
Maximum working speed 48VDC (ambient temperature 0 to +40°C)	rpm	5000
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	–
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.094
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	5.7
Winding resistance (ambient temperature 0 to +40°C)	Ohm	1.1
Winding inductance (ambient temperature 0 to +40°C)	mH	1.42
Electrical time constant (ambient temperature 0 to +40°C)	ms	1.29
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	2.3
Mechanical time constant (ambient temperature 0 to +40°C)	ms	0.88
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.047
Mass (ambient temperature 0 to +40°C)	Kg	0.54
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	30
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	180

Family Specification

Family Specification	Unit	TC-X 40 0,32 01
Time Rating		Continous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available
Certification		CE

Family Overview

Family Overview	Unit	TC-X 40 0,32 01
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) G2 – 90° M23 turnable connectors – PT 1000 on power connector H2 – 90° M23 turnable connectors – PT 1000 on signal connector

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-X 40

TX-X-40-Specs-40°C-to-80°C.pdf (pdf, 322.62K)

TC-X-Wiring-Cables-Connectors.pdf (pdf, 1.17M)

TC-X-Feedback-and-Thermal-Protection-Features.pdf (pdf, 258.2K)

TC-X-Servo-Drives.pdf (pdf, 1.95M)

TC-X-40-Dimensions.pdf (pdf, 355.26K)

Datenblatt

TC-X-40-Torque-Speed-Chart.pdf (pdf, 575.04K)
