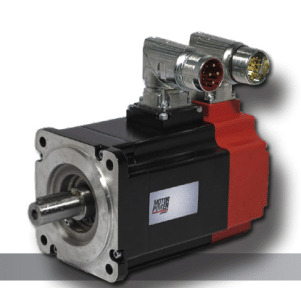

TC-L 60

Name: TC-L 60 - KOCO MOTION
SKU: TC-L 60

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

Flange dimensions: 60 mm
Rated Output Power: 200 – 370 W
Rated Torque: 0,64 – 1,18 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-L 60 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 60 mm
Rated Output Power: 200 – 370 W
Rated Torque: 0,64 – 1,18 Nm
Rated Speed: 3000 rpm

Produktvergleich

Specification	TC-L 60 0,65 00	TC-L 60 0,65 01	TC-L 60 0,65 32	TC-L 60 1,3 01	TC-L 60 1,3 32
Stall Torque	0.69 Nm	0.69 Nm	0.69 Nm	1.31 Nm	–
Stall Torque for S1	–	–	–	–	0.9 Nm
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	–	–	–	–	1.3 Nm
Peak Torque	1.95 Nm	1.95 Nm	1.95 Nm	3.9 Nm	3.9 Nm
Rated Torque	0.64 Nm	0.64 Nm	0.64 Nm	1.18 Nm	–
Rated Torque S1	–	–	–	–	0.87 Nm
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	–	–	–	–	1.18 Nm
Rated Voltage	48 Vdc	48 Vdc	24 Vdc	48 Vdc	24 Vdc
Rated Output Power	200 W	200 W	200 W	370 W	–
Rated Output Power for S1	–	–	–	–	280 W
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	–	–	–	–	370 W
Stall Current	9.32 Arms	7.34 Arms	13.8 Arms	13.8 Arms	–
Stall Current for S1	–	–	–	–	18 Arms
Stall Current for S2 for intermittent duty S2 T= 10’/20′	–	–	–	–	26 Arms
Peak Current	29 Arms	22.8 Arms	43 Arms	45.6 Arms	85 Arms
Rated Current	8.7 Arms	6.8 Arms	12.8 Arms	12.6 Arms	–
Rated Current for S1	–	–	–	–	17.85
Rated Current for S2 for intermittent duty S2 T= 10’/20′	–	–	–	–	23.6
Rated Speed	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Maximum Speed @24Vdc	–	–	5000 rpm	–	5000 rpm
Maximum Speed @48Vdc	5000 rpm	5000 rpm	–	5000 rpm	–
Torque Constant (± 5%)	0.074 Nm/Arms	0.094 Nm/Arms	0.05 Nm/Arms	0.094 Nm/Arms	0.05 Nm/Arms
Voltage Constant (± 5%)	4.5 Vrms/Krpm	5.7 Vrms/Krpm	3 Vrms/Krpm	5.7 Vrms/Krpm	3 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.21 Ω	0.38 Ω	0.1 Ω	0.16 Ω	0.09 Ω
Phase/phase inductance (± 10%)	0.5 mH	0.9 mH	0.28 mH	0.48 mH	0.11 mH
Electrical time constant	2.38 ms	2.4 ms	2.75 ms	3 ms	1.22 ms
Thermal Resistance	1.89 °C/W	1.89 °C/W	1.89 °C/W	1.41 °C/W	1.41 °C/W
Mechanical time constant	0.75 ms	0.8 ms	0.78 ms	0.65 ms	1.2 ms
Rotor Inertia without brake and without feedback	0.13 kg·cm²	0.13 kg·cm²	0.13 kg·cm²	0.24 kg·cm²	0.24 kg·cm²
Motor weight	1.1 Kg	1.1 Kg	1.1 Kg	1.5 Kg	1.5 Kg
Motor weight + Brake	1.5 Kg	1.5 Kg	1.5 Kg	1.9 Kg	1.9 Kg
Axial Load applied on the shaft’s center	70 N	70 N	70 N	70 N	70 N
Radial Load applied on the shaft’s center	220 N	220 N	220 N	220 N	220 N

Family Specification	TC-L 60
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL/CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	20 to 80% (non-condensing) %
Poles	8
Thermal Protection	PT 1000
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz

Family Overview	TC-L 60
Flange dimensions	60 mm
Rated Output Power	200 – 370 Watt
Rated Torque	0,64 – 1,18 Nm
Rated Speed	3000 rpm

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) specify D0/F88 if the connection is with Lite Pro drive G2 – 90° M23 turnable connectors – PT 1000 on power connector specify G2/F88 if the connection is with Lite Pro drive H2 – 90° M23 turnable connectors – PT 1000 on signal connector specify H2/F88 if the connection is with Lite Pro drive

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 60

Datenblatt

Dimensions (pdf, 463.47K)

Torque-Speed-Chart (pdf, 370.16K)

TC-L-Servo-Drives (pdf, 1.33M)

TC-L-Feedback-Features (pdf, 177.13K)

TC-L-Brake-and-Thermal-Protection-Features (pdf, 257.92K)

TC-L-Wiring-Cables-Connectors (pdf, 1.21M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification	TC-L 60 0,65 00
Stall Torque	0.69 Nm
Stall Torque for S1	–
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	–
Peak Torque	1.95 Nm
Rated Torque	0.64 Nm
Rated Torque S1	–
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	–
Rated Voltage	48 Vdc
Rated Output Power	200 W
Rated Output Power for S1	–
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	–
Stall Current	9.32 Arms
Stall Current for S1	–
Stall Current for S2 for intermittent duty S2 T= 10’/20′	–
Peak Current	29 Arms
Rated Current	8.7 Arms
Rated Current for S1	–
Rated Current for S2 for intermittent duty S2 T= 10’/20′	–
Rated Speed	3000 rpm
Maximum Speed @24Vdc	–
Maximum Speed @48Vdc	5000 rpm
Torque Constant (± 5%)	0.074 Nm/Arms
Voltage Constant (± 5%)	4.5 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.21 Ω
Phase/phase inductance (± 10%)	0.5 mH
Electrical time constant	2.38 ms
Thermal Resistance	1.89 °C/W
Mechanical time constant	0.75 ms
Rotor Inertia without brake and without feedback	0.13 kg·cm²
Motor weight	1.1 Kg
Motor weight + Brake	1.5 Kg
Axial Load applied on the shaft’s center	70 N
Radial Load applied on the shaft’s center	220 N

Family Specification	TC-L 60 0,65 00
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL/CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	20 to 80% (non-condensing) %
Poles	8
Thermal Protection	PT 1000
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz

Family Overview	TC-L 60 0,65 00
Flange dimensions	60 mm
Rated Output Power	200 – 370 Watt
Rated Torque	0,64 – 1,18 Nm
Rated Speed	3000 rpm

Optionen

Mechanical Arrangement

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 60

Datenblatt

Dimensions (pdf, 463.47K)

Torque-Speed-Chart (pdf, 370.16K)

TC-L-Servo-Drives (pdf, 1.33M)

TC-L-Feedback-Features (pdf, 177.13K)

TC-L-Brake-and-Thermal-Protection-Features (pdf, 257.92K)

TC-L-Wiring-Cables-Connectors (pdf, 1.21M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Phone

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification	TC-L 60 0,65 01
Stall Torque	0.69 Nm
Stall Torque for S1	–
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	–
Peak Torque	1.95 Nm
Rated Torque	0.64 Nm
Rated Torque S1	–
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	–
Rated Voltage	48 Vdc
Rated Output Power	200 W
Rated Output Power for S1	–
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	–
Stall Current	7.34 Arms
Stall Current for S1	–
Stall Current for S2 for intermittent duty S2 T= 10’/20′	–
Peak Current	22.8 Arms
Rated Current	6.8 Arms
Rated Current for S1	–
Rated Current for S2 for intermittent duty S2 T= 10’/20′	–
Rated Speed	3000 rpm
Maximum Speed @24Vdc	–
Maximum Speed @48Vdc	5000 rpm
Torque Constant (± 5%)	0.094 Nm/Arms
Voltage Constant (± 5%)	5.7 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.38 Ω
Phase/phase inductance (± 10%)	0.9 mH
Electrical time constant	2.4 ms
Thermal Resistance	1.89 °C/W
Mechanical time constant	0.8 ms
Rotor Inertia without brake and without feedback	0.13 kg·cm²
Motor weight	1.1 Kg
Motor weight + Brake	1.5 Kg
Axial Load applied on the shaft’s center	70 N
Radial Load applied on the shaft’s center	220 N

Family Specification	TC-L 60 0,65 01
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL/CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	20 to 80% (non-condensing) %
Poles	8
Thermal Protection	PT 1000
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz

Family Overview	TC-L 60 0,65 01
Flange dimensions	60 mm
Rated Output Power	200 – 370 Watt
Rated Torque	0,64 – 1,18 Nm
Rated Speed	3000 rpm

Optionen

Mechanical Arrangement

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 60

Datenblatt

Dimensions (pdf, 463.47K)

Torque-Speed-Chart (pdf, 370.16K)

TC-L-Servo-Drives (pdf, 1.33M)

TC-L-Feedback-Features (pdf, 177.13K)

TC-L-Brake-and-Thermal-Protection-Features (pdf, 257.92K)

TC-L-Wiring-Cables-Connectors (pdf, 1.21M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Comments

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification	TC-L 60 0,65 32
Stall Torque	0.69 Nm
Stall Torque for S1	–
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	–
Peak Torque	1.95 Nm
Rated Torque	0.64 Nm
Rated Torque S1	–
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	–
Rated Voltage	24 Vdc
Rated Output Power	200 W
Rated Output Power for S1	–
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	–
Stall Current	13.8 Arms
Stall Current for S1	–
Stall Current for S2 for intermittent duty S2 T= 10’/20′	–
Peak Current	43 Arms
Rated Current	12.8 Arms
Rated Current for S1	–
Rated Current for S2 for intermittent duty S2 T= 10’/20′	–
Rated Speed	3000 rpm
Maximum Speed @24Vdc	5000 rpm
Maximum Speed @48Vdc	–
Torque Constant (± 5%)	0.05 Nm/Arms
Voltage Constant (± 5%)	3 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.1 Ω
Phase/phase inductance (± 10%)	0.28 mH
Electrical time constant	2.75 ms
Thermal Resistance	1.89 °C/W
Mechanical time constant	0.78 ms
Rotor Inertia without brake and without feedback	0.13 kg·cm²
Motor weight	1.1 Kg
Motor weight + Brake	1.5 Kg
Axial Load applied on the shaft’s center	70 N
Radial Load applied on the shaft’s center	220 N

Family Specification	TC-L 60 0,65 32
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL/CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	20 to 80% (non-condensing) %
Poles	8
Thermal Protection	PT 1000
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz

Family Overview	TC-L 60 0,65 32
Flange dimensions	60 mm
Rated Output Power	200 – 370 Watt
Rated Torque	0,64 – 1,18 Nm
Rated Speed	3000 rpm

Optionen

Mechanical Arrangement

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 60

Datenblatt

Dimensions (pdf, 463.47K)

Torque-Speed-Chart (pdf, 370.16K)

TC-L-Servo-Drives (pdf, 1.33M)

TC-L-Feedback-Features (pdf, 177.13K)

TC-L-Brake-and-Thermal-Protection-Features (pdf, 257.92K)

TC-L-Wiring-Cables-Connectors (pdf, 1.21M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Phone

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification	TC-L 60 1,3 01
Stall Torque	1.31 Nm
Stall Torque for S1	–
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	–
Peak Torque	3.9 Nm
Rated Torque	1.18 Nm
Rated Torque S1	–
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	–
Rated Voltage	48 Vdc
Rated Output Power	370 W
Rated Output Power for S1	–
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	–
Stall Current	13.8 Arms
Stall Current for S1	–
Stall Current for S2 for intermittent duty S2 T= 10’/20′	–
Peak Current	45.6 Arms
Rated Current	12.6 Arms
Rated Current for S1	–
Rated Current for S2 for intermittent duty S2 T= 10’/20′	–
Rated Speed	3000 rpm
Maximum Speed @24Vdc	–
Maximum Speed @48Vdc	5000 rpm
Torque Constant (± 5%)	0.094 Nm/Arms
Voltage Constant (± 5%)	5.7 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.16 Ω
Phase/phase inductance (± 10%)	0.48 mH
Electrical time constant	3 ms
Thermal Resistance	1.41 °C/W
Mechanical time constant	0.65 ms
Rotor Inertia without brake and without feedback	0.24 kg·cm²
Motor weight	1.5 Kg
Motor weight + Brake	1.9 Kg
Axial Load applied on the shaft’s center	70 N
Radial Load applied on the shaft’s center	220 N

Family Specification	TC-L 60 1,3 01
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL/CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	20 to 80% (non-condensing) %
Poles	8
Thermal Protection	PT 1000
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz

Family Overview	TC-L 60 1,3 01
Flange dimensions	60 mm
Rated Output Power	200 – 370 Watt
Rated Torque	0,64 – 1,18 Nm
Rated Speed	3000 rpm

Optionen

Mechanical Arrangement

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 60

Datenblatt

Dimensions (pdf, 463.47K)

Torque-Speed-Chart (pdf, 370.16K)

TC-L-Servo-Drives (pdf, 1.33M)

TC-L-Feedback-Features (pdf, 177.13K)

TC-L-Brake-and-Thermal-Protection-Features (pdf, 257.92K)

TC-L-Wiring-Cables-Connectors (pdf, 1.21M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Phone

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification	TC-L 60 1,3 32
Stall Torque	–
Stall Torque for S1	0.9 Nm
Stall Torque for S2 for intermittent duty S2 T= 10’/20′	1.3 Nm
Peak Torque	3.9 Nm
Rated Torque	–
Rated Torque S1	0.87 Nm
Rated Torque for S2 for intermittent duty S2 T= 10’/20′	1.18 Nm
Rated Voltage	24 Vdc
Rated Output Power	–
Rated Output Power for S1	280 W
Rated Output Power for S2 for intermittent duty S2 T= 10’/20′	370 W
Stall Current	–
Stall Current for S1	18 Arms
Stall Current for S2 for intermittent duty S2 T= 10’/20′	26 Arms
Peak Current	85 Arms
Rated Current	–
Rated Current for S1	17.85
Rated Current for S2 for intermittent duty S2 T= 10’/20′	23.6
Rated Speed	3000 rpm
Maximum Speed @24Vdc	5000 rpm
Maximum Speed @48Vdc	–
Torque Constant (± 5%)	0.05 Nm/Arms
Voltage Constant (± 5%)	3 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.09 Ω
Phase/phase inductance (± 10%)	0.11 mH
Electrical time constant	1.22 ms
Thermal Resistance	1.41 °C/W
Mechanical time constant	1.2 ms
Rotor Inertia without brake and without feedback	0.24 kg·cm²
Motor weight	1.5 Kg
Motor weight + Brake	1.9 Kg
Axial Load applied on the shaft’s center	70 N
Radial Load applied on the shaft’s center	220 N

Family Specification	TC-L 60 1,3 32
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL/CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	20 to 80% (non-condensing) %
Poles	8
Thermal Protection	PT 1000
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz

Family Overview	TC-L 60 1,3 32
Flange dimensions	60 mm
Rated Output Power	200 – 370 Watt
Rated Torque	0,64 – 1,18 Nm
Rated Speed	3000 rpm

Optionen

Mechanical Arrangement

Feedback

E1 – Encoder TTL 2000ppr R1 – Resolver 2 poles A1 – Absolute Multiturn Encoder

Brake

0 = without brake 1 = with brake

Connection

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-L 60

Datenblatt

Dimensions (pdf, 463.47K)

Torque-Speed-Chart (pdf, 370.16K)

TC-L-Servo-Drives (pdf, 1.33M)

TC-L-Feedback-Features (pdf, 177.13K)

TC-L-Brake-and-Thermal-Protection-Features (pdf, 257.92K)

TC-L-Wiring-Cables-Connectors (pdf, 1.21M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Phone

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Weiterlesen	TC-L 60 0,65 00	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	TC-L 60 0,65 01	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	TC-L 60 0,65 32	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	TC-L 60 1,3 01	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	TC-L 60 1,3 32	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.

Brushless DC Motors

Brushed DC Motors

Stepper Motors

Linear Actuators

Controller

Industrieautomation / Maschinenbau

Sicherheitstechnik / Schließtechnik

Smart Home und Gebäudetechnik

Medizintechnik

Akkutools

Automotive

TC-L 60

Beschreibung

Ähnliche Produkte

iSV2-RS8675V48H

iSV2-CAN8075V48H

iSV2-CAN6020V48G

iSV-B23130T-S21

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

TC-L 60

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

TC-L 60

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

TC-L 60

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

TC-L 60

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

TC-L 60

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

TC-L 60

Datenblatt

Nehmen Sie Kontakt auf
