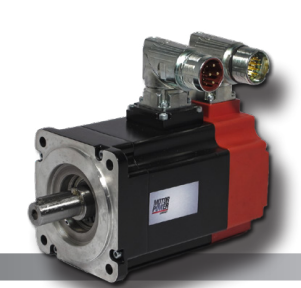

Specification
| Parameter | Unit | TC-L 60 0,65 00 | TC-L 60 0,65 01 | TC-L 60 0,65 32 | TC-L 60 1,3 01 | TC-L 60 1,3 32 |
|---|---|---|---|---|---|---|
| Stall torque | Nm | 0.69 | 0.69 | 0.69 | 1.31 | – |
| Rated output power for S1 | W | – | – | – | – | 280 |
| Rated Output Power for S2 for intermittent duty S2 T= 10’/20′ | W | – | – | – | – | 370 |
| Stall current | Arms | 9.32 | 7.34 | 13.8 | 13.8 | – |
| Stall Current for S1 | Arms | – | – | – | – | 18 |
| Stall Current for S2 for intermittent duty S2 T= 10’/20′ | Arms | – | – | – | – | 26 |
| Peak current | Arms | 29 | 22.8 | 43 | 45.6 | 85 |
| Nominal current | Arms | 8.7 | 6.8 | 12.8 | 12.6 | – |
| Rated Current for S1 | – | – | – | – | 17.85 | |
| Rated Current for S2 for intermittent duty S2 T= 10’/20′ | – | – | – | – | 23.6 | |
| Nominal speed | rpm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Stall torque for S1 | Nm | – | – | – | – | 0.9 |
| Maximum Speed @24Vdc | rpm | – | – | 5000 | – | 5000 |
| Maximum Speed @48Vdc | rpm | 5000 | 5000 | – | 5000 | – |
| Torque Constant (± 5%) | Nm/Arms | 0.074 | 0.094 | 0.05 | 0.094 | 0.05 |
| Voltage constant | Vrms/Krpm | 4.5 | 5.7 | 3 | 5.7 | 3 |
| Phase resistance | Ω | 0.21 | 0.38 | 0.1 | 0.16 | 0.09 |
| Phase inductance | mH | 0.5 | 0.9 | 0.28 | 0.48 | 0.11 |
| Electrical time constant | ms | 2.38 | 2.4 | 2.75 | 3 | 1.22 |
| Thermal resistance | °C/W | 1.89 | 1.89 | 1.89 | 1.41 | 1.41 |
| Mechanical time constant | ms | 0.75 | 0.8 | 0.78 | 0.65 | 1.2 |
| Rotor Inertia without brake and without feedback | kg·cm² | 0.13 | 0.13 | 0.13 | 0.24 | 0.24 |
| Stall torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – | – | – | – | 1.3 |
| Motor weight | Kg | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 |
| Motor weight + Brake | Kg | 1.5 | 1.5 | 1.5 | 1.9 | 1.9 |
| Axial Load applied on the shaft’s center | N | 70 | 70 | 70 | 70 | 70 |
| Radial Load applied on the shaft’s center | N | 220 | 220 | 220 | 220 | 220 |
| Motor length (without brake) | mm | 111 | 111 | 111 | 136 | 136 |
| Motor length (with brake) | mm | 148 | 148 | 148 | 173 | 173 |
| Peak Torque | Nm | 1.95 | 1.95 | 1.95 | 3.9 | 3.9 |
| Nominal torque | Nm | 0.64 | 0.64 | 0.64 | 1.18 | – |
| Rated torque S1 | Nm | – | – | – | – | 0.87 |
| Rated Torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – | – | – | – | 1.18 |
| Rated voltage | Vdc | 48 | 48 | 24 | 48 | 24 |
| Rated output power | W | 200 | 200 | 200 | 370 | – |
Family Specification
| Family Specification | Unit | TC-L 60 |
|---|---|---|
| Time Rating | Continuous | |
| Certification | CE | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL/CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | % | 20 to 80% (non-condensing) |
| Poles | 8 | |
| Thermal Protection | PT 1000 |
Family Overview
| Family Overview | Unit | TC-L 60 |
|---|---|---|
| Flange dimensions | mm | 60 |
| Rated Output Power | Watt | 200 – 370 |
| Rated Torque | Nm | 0,64 – 1,18 |
| Rated Speed | rpm | 3000 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | TC-L 60 0,65 00 |
|---|---|---|
| Stall torque | Nm | 0.69 |
| Rated output power for S1 | W | – |
| Rated Output Power for S2 for intermittent duty S2 T= 10’/20′ | W | – |
| Stall current | Arms | 9.32 |
| Stall Current for S1 | Arms | – |
| Stall Current for S2 for intermittent duty S2 T= 10’/20′ | Arms | – |
| Peak current | Arms | 29 |
| Nominal current | Arms | 8.7 |
| Rated Current for S1 | – | |
| Rated Current for S2 for intermittent duty S2 T= 10’/20′ | – | |
| Nominal speed | rpm | 3000 |
| Stall torque for S1 | Nm | – |
| Maximum Speed @24Vdc | rpm | – |
| Maximum Speed @48Vdc | rpm | 5000 |
| Torque Constant (± 5%) | Nm/Arms | 0.074 |
| Voltage constant | Vrms/Krpm | 4.5 |
| Phase resistance | Ω | 0.21 |
| Phase inductance | mH | 0.5 |
| Electrical time constant | ms | 2.38 |
| Thermal resistance | °C/W | 1.89 |
| Mechanical time constant | ms | 0.75 |
| Rotor Inertia without brake and without feedback | kg·cm² | 0.13 |
| Stall torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – |
| Motor weight | Kg | 1.1 |
| Motor weight + Brake | Kg | 1.5 |
| Axial Load applied on the shaft’s center | N | 70 |
| Radial Load applied on the shaft’s center | N | 220 |
| Motor length (without brake) | mm | 111 |
| Motor length (with brake) | mm | 148 |
| Peak Torque | Nm | 1.95 |
| Nominal torque | Nm | 0.64 |
| Rated torque S1 | Nm | – |
| Rated Torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – |
| Rated voltage | Vdc | 48 |
| Rated output power | W | 200 |
Family Specification
| Family Specification | Unit | TC-L 60 0,65 00 |
|---|---|---|
| Time Rating | Continuous | |
| Certification | CE | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL/CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | % | 20 to 80% (non-condensing) |
| Poles | 8 | |
| Thermal Protection | PT 1000 |
Family Overview
| Family Overview | Unit | TC-L 60 0,65 00 |
|---|---|---|
| Flange dimensions | mm | 60 |
| Rated Output Power | Watt | 200 – 370 |
| Rated Torque | Nm | 0,64 – 1,18 |
| Rated Speed | rpm | 3000 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | TC-L 60 0,65 01 |
|---|---|---|
| Stall torque | Nm | 0.69 |
| Rated output power for S1 | W | – |
| Rated Output Power for S2 for intermittent duty S2 T= 10’/20′ | W | – |
| Stall current | Arms | 7.34 |
| Stall Current for S1 | Arms | – |
| Stall Current for S2 for intermittent duty S2 T= 10’/20′ | Arms | – |
| Peak current | Arms | 22.8 |
| Nominal current | Arms | 6.8 |
| Rated Current for S1 | – | |
| Rated Current for S2 for intermittent duty S2 T= 10’/20′ | – | |
| Nominal speed | rpm | 3000 |
| Stall torque for S1 | Nm | – |
| Maximum Speed @24Vdc | rpm | – |
| Maximum Speed @48Vdc | rpm | 5000 |
| Torque Constant (± 5%) | Nm/Arms | 0.094 |
| Voltage constant | Vrms/Krpm | 5.7 |
| Phase resistance | Ω | 0.38 |
| Phase inductance | mH | 0.9 |
| Electrical time constant | ms | 2.4 |
| Thermal resistance | °C/W | 1.89 |
| Mechanical time constant | ms | 0.8 |
| Rotor Inertia without brake and without feedback | kg·cm² | 0.13 |
| Stall torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – |
| Motor weight | Kg | 1.1 |
| Motor weight + Brake | Kg | 1.5 |
| Axial Load applied on the shaft’s center | N | 70 |
| Radial Load applied on the shaft’s center | N | 220 |
| Motor length (without brake) | mm | 111 |
| Motor length (with brake) | mm | 148 |
| Peak Torque | Nm | 1.95 |
| Nominal torque | Nm | 0.64 |
| Rated torque S1 | Nm | – |
| Rated Torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – |
| Rated voltage | Vdc | 48 |
| Rated output power | W | 200 |
Family Specification
| Family Specification | Unit | TC-L 60 0,65 01 |
|---|---|---|
| Time Rating | Continuous | |
| Certification | CE | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL/CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | % | 20 to 80% (non-condensing) |
| Poles | 8 | |
| Thermal Protection | PT 1000 |
Family Overview
| Family Overview | Unit | TC-L 60 0,65 01 |
|---|---|---|
| Flange dimensions | mm | 60 |
| Rated Output Power | Watt | 200 – 370 |
| Rated Torque | Nm | 0,64 – 1,18 |
| Rated Speed | rpm | 3000 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | TC-L 60 0,65 32 |
|---|---|---|
| Stall torque | Nm | 0.69 |
| Rated output power for S1 | W | – |
| Rated Output Power for S2 for intermittent duty S2 T= 10’/20′ | W | – |
| Stall current | Arms | 13.8 |
| Stall Current for S1 | Arms | – |
| Stall Current for S2 for intermittent duty S2 T= 10’/20′ | Arms | – |
| Peak current | Arms | 43 |
| Nominal current | Arms | 12.8 |
| Rated Current for S1 | – | |
| Rated Current for S2 for intermittent duty S2 T= 10’/20′ | – | |
| Nominal speed | rpm | 3000 |
| Stall torque for S1 | Nm | – |
| Maximum Speed @24Vdc | rpm | 5000 |
| Maximum Speed @48Vdc | rpm | – |
| Torque Constant (± 5%) | Nm/Arms | 0.05 |
| Voltage constant | Vrms/Krpm | 3 |
| Phase resistance | Ω | 0.1 |
| Phase inductance | mH | 0.28 |
| Electrical time constant | ms | 2.75 |
| Thermal resistance | °C/W | 1.89 |
| Mechanical time constant | ms | 0.78 |
| Rotor Inertia without brake and without feedback | kg·cm² | 0.13 |
| Stall torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – |
| Motor weight | Kg | 1.1 |
| Motor weight + Brake | Kg | 1.5 |
| Axial Load applied on the shaft’s center | N | 70 |
| Radial Load applied on the shaft’s center | N | 220 |
| Motor length (without brake) | mm | 111 |
| Motor length (with brake) | mm | 148 |
| Peak Torque | Nm | 1.95 |
| Nominal torque | Nm | 0.64 |
| Rated torque S1 | Nm | – |
| Rated Torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – |
| Rated voltage | Vdc | 24 |
| Rated output power | W | 200 |
Family Specification
| Family Specification | Unit | TC-L 60 0,65 32 |
|---|---|---|
| Time Rating | Continuous | |
| Certification | CE | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL/CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | % | 20 to 80% (non-condensing) |
| Poles | 8 | |
| Thermal Protection | PT 1000 |
Family Overview
| Family Overview | Unit | TC-L 60 0,65 32 |
|---|---|---|
| Flange dimensions | mm | 60 |
| Rated Output Power | Watt | 200 – 370 |
| Rated Torque | Nm | 0,64 – 1,18 |
| Rated Speed | rpm | 3000 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | TC-L 60 1,3 01 |
|---|---|---|
| Stall torque | Nm | 1.31 |
| Rated output power for S1 | W | – |
| Rated Output Power for S2 for intermittent duty S2 T= 10’/20′ | W | – |
| Stall current | Arms | 13.8 |
| Stall Current for S1 | Arms | – |
| Stall Current for S2 for intermittent duty S2 T= 10’/20′ | Arms | – |
| Peak current | Arms | 45.6 |
| Nominal current | Arms | 12.6 |
| Rated Current for S1 | – | |
| Rated Current for S2 for intermittent duty S2 T= 10’/20′ | – | |
| Nominal speed | rpm | 3000 |
| Stall torque for S1 | Nm | – |
| Maximum Speed @24Vdc | rpm | – |
| Maximum Speed @48Vdc | rpm | 5000 |
| Torque Constant (± 5%) | Nm/Arms | 0.094 |
| Voltage constant | Vrms/Krpm | 5.7 |
| Phase resistance | Ω | 0.16 |
| Phase inductance | mH | 0.48 |
| Electrical time constant | ms | 3 |
| Thermal resistance | °C/W | 1.41 |
| Mechanical time constant | ms | 0.65 |
| Rotor Inertia without brake and without feedback | kg·cm² | 0.24 |
| Stall torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – |
| Motor weight | Kg | 1.5 |
| Motor weight + Brake | Kg | 1.9 |
| Axial Load applied on the shaft’s center | N | 70 |
| Radial Load applied on the shaft’s center | N | 220 |
| Motor length (without brake) | mm | 136 |
| Motor length (with brake) | mm | 173 |
| Peak Torque | Nm | 3.9 |
| Nominal torque | Nm | 1.18 |
| Rated torque S1 | Nm | – |
| Rated Torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | – |
| Rated voltage | Vdc | 48 |
| Rated output power | W | 370 |
Family Specification
| Family Specification | Unit | TC-L 60 1,3 01 |
|---|---|---|
| Time Rating | Continuous | |
| Certification | CE | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL/CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | % | 20 to 80% (non-condensing) |
| Poles | 8 | |
| Thermal Protection | PT 1000 |
Family Overview
| Family Overview | Unit | TC-L 60 1,3 01 |
|---|---|---|
| Flange dimensions | mm | 60 |
| Rated Output Power | Watt | 200 – 370 |
| Rated Torque | Nm | 0,64 – 1,18 |
| Rated Speed | rpm | 3000 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | TC-L 60 1,3 32 |
|---|---|---|
| Stall torque | Nm | – |
| Rated output power for S1 | W | 280 |
| Rated Output Power for S2 for intermittent duty S2 T= 10’/20′ | W | 370 |
| Stall current | Arms | – |
| Stall Current for S1 | Arms | 18 |
| Stall Current for S2 for intermittent duty S2 T= 10’/20′ | Arms | 26 |
| Peak current | Arms | 85 |
| Nominal current | Arms | – |
| Rated Current for S1 | 17.85 | |
| Rated Current for S2 for intermittent duty S2 T= 10’/20′ | 23.6 | |
| Nominal speed | rpm | 3000 |
| Stall torque for S1 | Nm | 0.9 |
| Maximum Speed @24Vdc | rpm | 5000 |
| Maximum Speed @48Vdc | rpm | – |
| Torque Constant (± 5%) | Nm/Arms | 0.05 |
| Voltage constant | Vrms/Krpm | 3 |
| Phase resistance | Ω | 0.09 |
| Phase inductance | mH | 0.11 |
| Electrical time constant | ms | 1.22 |
| Thermal resistance | °C/W | 1.41 |
| Mechanical time constant | ms | 1.2 |
| Rotor Inertia without brake and without feedback | kg·cm² | 0.24 |
| Stall torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | 1.3 |
| Motor weight | Kg | 1.5 |
| Motor weight + Brake | Kg | 1.9 |
| Axial Load applied on the shaft’s center | N | 70 |
| Radial Load applied on the shaft’s center | N | 220 |
| Motor length (without brake) | mm | 136 |
| Motor length (with brake) | mm | 173 |
| Peak Torque | Nm | 3.9 |
| Nominal torque | Nm | – |
| Rated torque S1 | Nm | 0.87 |
| Rated Torque for S2 for intermittent duty S2 T= 10’/20′ | Nm | 1.18 |
| Rated voltage | Vdc | 24 |
| Rated output power | W | – |
Family Specification
| Family Specification | Unit | TC-L 60 1,3 32 |
|---|---|---|
| Time Rating | Continuous | |
| Certification | CE | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Stall torque at switching frequency 12,5Khz | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL/CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | % | 20 to 80% (non-condensing) |
| Poles | 8 | |
| Thermal Protection | PT 1000 |
Family Overview
| Family Overview | Unit | TC-L 60 1,3 32 |
|---|---|---|
| Flange dimensions | mm | 60 |
| Rated Output Power | Watt | 200 – 370 |
| Rated Torque | Nm | 0,64 – 1,18 |
| Rated Speed | rpm | 3000 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
