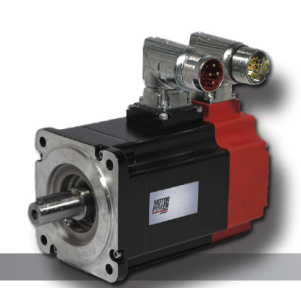

Flange dimensions: 60 mm
Rated Output Power: 200 – 370 W
Rated Torque: 0,64 – 1,18 Nm
Rated Speed: 3000 rpm
Flange dimensions: 60 mm
Rated Output Power: 200 – 370 W
Rated Torque: 0,64 – 1,18 Nm
Rated Speed: 3000 rpm
| Specification | TC-L 60 1,3 01 |
|---|---|
| Stall Torque | 1.31 Nm |
| Stall Torque for S1 | – |
| Stall Torque for S2 for intermittent duty S2 T= 10’/20′ | – |
| Peak Torque | 3.9 Nm |
| Rated Torque | 1.18 Nm |
| Rated Torque S1 | – |
| Rated Torque for S2 for intermittent duty S2 T= 10’/20′ | – |
| Rated Voltage | 48 Vdc |
| Rated Output Power | 370 W |
| Rated Output Power for S1 | – |
| Rated Output Power for S2 for intermittent duty S2 T= 10’/20′ | – |
| Stall Current | 13.8 Arms |
| Stall Current for S1 | – |
| Stall Current for S2 for intermittent duty S2 T= 10’/20′ | – |
| Peak Current | 45.6 Arms |
| Rated Current | 12.6 Arms |
| Rated Current for S1 | – |
| Rated Current for S2 for intermittent duty S2 T= 10’/20′ | – |
| Rated Speed | 3000 rpm |
| Maximum Speed @24Vdc | – |
| Maximum Speed @48Vdc | 5000 rpm |
| Torque Constant (± 5%) | 0.094 Nm/Arms |
| Voltage Constant (± 5%) | 5.7 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.16 Ω |
| Phase/phase inductance (± 10%) | 0.48 mH |
| Electrical time constant | 3 ms |
| Thermal Resistance | 1.41 °C/W |
| Mechanical time constant | 0.65 ms |
| Rotor Inertia without brake and without feedback | 0.24 kg·cm² |
| Motor weight | 1.5 Kg |
| Motor weight + Brake | 1.9 Kg |
| Axial Load applied on the shaft’s center | 70 N |
| Radial Load applied on the shaft’s center | 220 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
