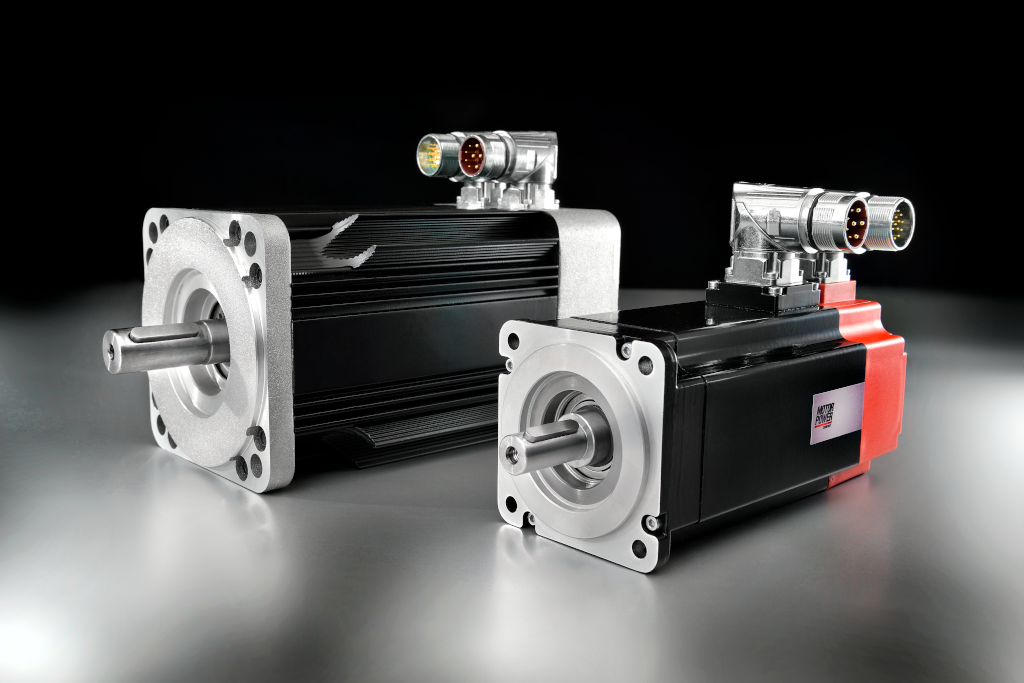

TC-E 80 3B F3 4

Name: TC-E 80 3B F3 4 - KOCO MOTION
SKU: TC-E 80 3B F3 4

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

Flange dimensions: 80 mm
Rated Output Power: 400 – 750 W
Rated Torque: 1,27 – 2,39 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC-E 80 3B F3 4 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 80 mm
Rated Output Power: 400 – 750 W
Rated Torque: 1,27 – 2,39 Nm
Rated Speed: 3000 rpm

Specification	TC-E 80 3B F3 4
Continuous Stall Torque	2.39 Nm
Peak Torque	7.16 Nm
Nominal working Speed	3000 rpm
Maximum working speed	6000 rpm
Nominal Torque	2.39 Nm
Nominal Current	2.81 Arms
Nominal Power	0.75 kW
Rated winding voltage	400 Vac
Maximum winding voltage	650 Vdc
Maximum voltage to ground	265 Vac
Maximum current	8.66 Arms
Continuous Stall current	2.63 Arms
Voltage Constant	55 Vrms/Krpm
Torque Constant	0.91 Nm/Arms
Winding resistance	3.5 Ω
Winding inductance qu-v	15.4 mH
Winding inductance du-v	14.2 mH
Rotor inertia without holding brake	1.18 kg·cm²
Rotor inertia with holding brake	1.23 kg·cm²
Rotor high inertia without holding brake	1.53
Rotor high inertia with holding brake	1.58
Mass without holding brake	2.8 Kg
Mass with holding brake	3.6 Kg
High inertia mass without holding brake	2.9
High inertia mass with holding brake	3.7
Thermal time constant	28 min
Maximum radial shaft load	332 N
Maximum axial shaft load	115 N

Family Specification	TC-E 80 3B F3 4
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 54 Standard IP 65 with shaft sealing
Ambient Temperature	-20 to 40 °C
Ambient Humidity	5 to 85% (non-condensing) %
Poles	8
Certification	UL 1004, CSA, CE, RoHS, Reach compliance
Recommendation	Rated output with 250x250x12mm aluminum heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied

Family Overview	TC-E 80 3B F3 4
Flange dimensions	80 mm
Rated Output Power	400 – 750 Watt
Rated Torque	1,27 – 2,39 Nm
Rated Speed	3000 rpm

Optionen

Feedback

E1 – Encoder TTL 2500ppr, E1 and A6 not available for TC-E 40 models A1 – Absolute multiturn encoder (Hiperface) A2 – Proprietary 20 bit absolute encoder A6 – Absolute multiturn encode (with battery box) 24 bit – not available for TC-E 40 models

Mechanical Arrangement

0 – Smooth shaft 4 1 – Smooth shaft + oil seal 2 – Keyed shaft 3 – Keyed shaft + oil seal 4 – High inertia smooth shaft, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only 5 – High inertia smooth shaft + oil seal, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only 6 – High inertia keyed shaft, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only 7 – High inertia keyed shaft + oil seal, not available for models TC-E 80 3B D4 2, TC-E 80 3B F3 4, TC-E 130 5C F1 2, TC-E 130 5C F1 4, TC-E 180 6A G2 2, TC-E 180 6A G3 4 only

Brake

0 = without brake 1 = with brake

Connection

D0 – 300mm output cable lenght with plastic connector (TC-E 40, 60, 80) C2 – 90° M23 turnable connectors (TC-E 60, 80, 100, 130, 180 models 6A, 6B, 6C, 6D) C3 – MS connectors (TC-E 100, 130, 180)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC-E 80

Datenblatt

Dimensions (pdf, 1.82M)

Torque-Speed-Chart (pdf, 588.91K)

TC-E-Servo-Drive (pdf, 1.93M)

TC-E-Feedback-Features (pdf, 260.05K)

TC-E-Brake-Features (pdf, 252.26K)

TC-E-Wiring-Cables-Connectors (pdf, 2.25M)

TC-E-Protection-Class (pdf, 277.79K)

TC-E-Transportation-Storage-Handling-Instruction (pdf, 547.4K)
