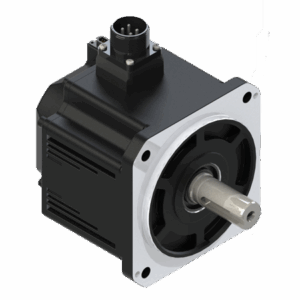

Beschreibung
Flange dimensions: 180 mm
Rated Output Power: 2000 – 7500 W
Rated Torque: 9,55 – 47,75 Nm
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
Flange dimensions: 180 mm
Rated Output Power: 2000 – 7500 W
Rated Torque: 9,55 – 47,75 Nm
Flange dimensions: 180 mm
Rated Output Power: 2000 – 7500 W
Rated Torque: 9,55 – 47,75 Nm
Specification | TC-E 180 6E G1 2 |
---|---|
Continuous Stall Torque | 28.65 Nm |
Peak Torque | 71.62 Nm |
Nominal working Speed | 1500 rpm |
Maximum working speed | 2500 rpm |
Nominal Torque | 28.65 Nm |
Nominal Current | 22.8 Arms |
Nominal Power | 4.5 kW |
Rated winding voltage | 230 Vac |
Maximum winding voltage | 360 Vdc |
Maximum voltage to ground | 255 Vac |
Maximum current | 61 Arms |
Continuous Stall current | 19.68 Arms |
Voltage Constant | 88 Vrms/Krpm |
Torque Constant | 1.46 Nm/Arms |
Winding resistance | 0.199 Ω |
Winding inductance qu-v | 4 mH |
Winding inductance du-v | 3.8 mH |
Rotor inertia without holding brake | 73.31 kg·cm² |
Rotor inertia with holding brake | 73.99 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 23.64 Kg |
Mass with holding brake | 28 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 40 min |
Maximum radial shaft load | 1200 N |
Maximum axial shaft load | 49.7 N |
Family Specification | TC-E 180 6E G1 2 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 550x550x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 180 6E G1 2 |
---|---|
Flange dimensions | 180 mm |
Rated Output Power | 2000 – 7500 Watt |
Rated Torque | 9,55 – 47,75 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
