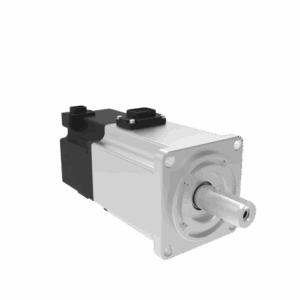

TC 40

Name: TC 40 - KOCO MOTION
SKU: TC 40

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Artikelnummer: TC 40 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm

Produktvergleich

Specification

Parameter	Unit	TC 40 0,16 32	TC 40 0,16 01	TC 40 0,32 01	TC 40 0,32 21
Continous Stall Torque	Nm	0.21	0.21	0.34	0.34
Peak Torque	Nm	0.48	0.48	0.96	0.96
Nominal Torque	Nm	0.19	0.19	0.32	0.32
Rated Voltage	V	24	48	48	230
Nominal power	W	60	60	100	100
Continuous stall Current	Arms	4.23	2.23	3.61	0.65
Maximun Current	Arms	9.67	5.09	10.18	1.82
Nominal Current	Arms	3.96	2.09	3.48	0.62
Nominal working Speed	rpm	3000	3000	3000	3000
Maximum working speed 24VDC	rpm	5000	–	–	–
Maximum working speed 48VDC	rpm	–	5000	5000	–
Maximum working speed 230VAC	rpm	–	–	–	5000
Torque Constant	Nm/Arms	0.05	0.094	0.094	0.526
Voltage Constant	Vrms/Krpm	3	5.7	5.7	31.8
Winding resistance	Ohm	1	3.2	1.1	36.2
Winding inductance	mH	0.7	2.5	1.42	44
Electrical time constant	ms	0.7	0.78	1.29	1.21
Thermal Resistance	°C/W	2.38	2.38	2.3	2.3
Mechanical time constant	ms	1.62	1.47	0.88	0.92
Rotor Inertia without brake and without feedback	kg·cm²	0.027	0.027	0.047	0.047
Mass without holding brake	Kg	0.4	0.4	0.54	0.54
Mass with holding brake	Kg	0.54	0.54	0.68	0.68
Mass without holding brake with absolute encoder	Kg	0.41	0.41	0.55	0.55
Mass with holding brake with absolute encoder	Kg	0.61	0.61	0.75	0.75
Maximum axial shaft load applied on the shaft’s center	N	30	30	30	30
Maximun radial shaft load applied on the shaft’s center	N	180	180	180	180

Family Specification

Family Specification	Unit	TC 40
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC 40
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

0 = Shaft with key / without oil seal (front flange side IP 54) 1 = Shaft with key / with oil seal (front flange side IP 65) 2 = Shaft without key / without oil seal (front flange side IP 54) 3 = Shaft without key / with oil seal (front flange side IP 65)

Feedback

E1 = Encoder TTL 2000 ppr R1 = Resolver 2p A1 = Absolute multiturn encoder

Brake

0 = without brake 1 = with brake

Connection

D0 = 300mm cable length with AMP connectors, without thermal protection, specify D0/F88 if the connection is with Lite Pro drive G2 = 90° M23 turnable connectors – PT 1000 on power connector specify G2/F88 if the connection is with Lite Pro drive H2 = 90° M23 turnable connectors – PT 1000 on signal connector specify H2/F88 if the connection is with Lite Pro drive

Anwendungen

Medical Biomedical Agriculture Processing & Packaging Logistic & Intralogistic

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Name

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC 40 0,16 32
Continous Stall Torque	Nm	0.21
Peak Torque	Nm	0.48
Nominal Torque	Nm	0.19
Rated Voltage	V	24
Nominal power	W	60
Continuous stall Current	Arms	4.23
Maximun Current	Arms	9.67
Nominal Current	Arms	3.96
Nominal working Speed	rpm	3000
Maximum working speed 24VDC	rpm	5000
Maximum working speed 48VDC	rpm	–
Maximum working speed 230VAC	rpm	–
Torque Constant	Nm/Arms	0.05
Voltage Constant	Vrms/Krpm	3
Winding resistance	Ohm	1
Winding inductance	mH	0.7
Electrical time constant	ms	0.7
Thermal Resistance	°C/W	2.38
Mechanical time constant	ms	1.62
Rotor Inertia without brake and without feedback	kg·cm²	0.027
Mass without holding brake	Kg	0.4
Mass with holding brake	Kg	0.54
Mass without holding brake with absolute encoder	Kg	0.41
Mass with holding brake with absolute encoder	Kg	0.61
Maximum axial shaft load applied on the shaft’s center	N	30
Maximun radial shaft load applied on the shaft’s center	N	180

Family Specification

Family Specification	Unit	TC 40 0,16 32
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC 40 0,16 32
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

E1 = Encoder TTL 2000 ppr R1 = Resolver 2p A1 = Absolute multiturn encoder

Brake

0 = without brake 1 = with brake

Connection

Anwendungen

Medical Biomedical Agriculture Processing & Packaging Logistic & Intralogistic

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC 40 0,16 32


TC 40

TC-40-Dimensions.pdf (pdf, 375.15K)

TC-Servo-Drive.pdf (pdf, 3.02M)

TC-Brake-Features.pdf (pdf, 256.12K)

TC-40-Torque-Speed-Chart.pdf (pdf, 559.55K)

TC-Feedback-Features.pdf (pdf, 162.32K)

TC-Thermal-Protection-Features.pdf (pdf, 256.31K)

Datenblatt

TC-Wiring-Cables-Connectors.pdf (pdf, 1.86M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Comments

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC 40 0,16 01
Continous Stall Torque	Nm	0.21
Peak Torque	Nm	0.48
Nominal Torque	Nm	0.19
Rated Voltage	V	48
Nominal power	W	60
Continuous stall Current	Arms	2.23
Maximun Current	Arms	5.09
Nominal Current	Arms	2.09
Nominal working Speed	rpm	3000
Maximum working speed 24VDC	rpm	–
Maximum working speed 48VDC	rpm	5000
Maximum working speed 230VAC	rpm	–
Torque Constant	Nm/Arms	0.094
Voltage Constant	Vrms/Krpm	5.7
Winding resistance	Ohm	3.2
Winding inductance	mH	2.5
Electrical time constant	ms	0.78
Thermal Resistance	°C/W	2.38
Mechanical time constant	ms	1.47
Rotor Inertia without brake and without feedback	kg·cm²	0.027
Mass without holding brake	Kg	0.4
Mass with holding brake	Kg	0.54
Mass without holding brake with absolute encoder	Kg	0.41
Mass with holding brake with absolute encoder	Kg	0.61
Maximum axial shaft load applied on the shaft’s center	N	30
Maximun radial shaft load applied on the shaft’s center	N	180

Family Specification

Family Specification	Unit	TC 40 0,16 01
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC 40 0,16 01
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

E1 = Encoder TTL 2000 ppr R1 = Resolver 2p A1 = Absolute multiturn encoder

Brake

0 = without brake 1 = with brake

Connection

Anwendungen

Medical Biomedical Agriculture Processing & Packaging Logistic & Intralogistic

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC 40 0,16 01


TC 40

TC-40-Dimensions.pdf (pdf, 375.15K)

TC-Servo-Drive.pdf (pdf, 3.02M)

TC-Brake-Features.pdf (pdf, 256.12K)

TC-40-Torque-Speed-Chart.pdf (pdf, 559.55K)

TC-Feedback-Features.pdf (pdf, 162.32K)

TC-Thermal-Protection-Features.pdf (pdf, 256.31K)

Datenblatt

TC-Wiring-Cables-Connectors.pdf (pdf, 1.86M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC 40 0,32 01
Continous Stall Torque	Nm	0.34
Peak Torque	Nm	0.96
Nominal Torque	Nm	0.32
Rated Voltage	V	48
Nominal power	W	100
Continuous stall Current	Arms	3.61
Maximun Current	Arms	10.18
Nominal Current	Arms	3.48
Nominal working Speed	rpm	3000
Maximum working speed 24VDC	rpm	–
Maximum working speed 48VDC	rpm	5000
Maximum working speed 230VAC	rpm	–
Torque Constant	Nm/Arms	0.094
Voltage Constant	Vrms/Krpm	5.7
Winding resistance	Ohm	1.1
Winding inductance	mH	1.42
Electrical time constant	ms	1.29
Thermal Resistance	°C/W	2.3
Mechanical time constant	ms	0.88
Rotor Inertia without brake and without feedback	kg·cm²	0.047
Mass without holding brake	Kg	0.54
Mass with holding brake	Kg	0.68
Mass without holding brake with absolute encoder	Kg	0.55
Mass with holding brake with absolute encoder	Kg	0.75
Maximum axial shaft load applied on the shaft’s center	N	30
Maximun radial shaft load applied on the shaft’s center	N	180

Family Specification

Family Specification	Unit	TC 40 0,32 01
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC 40 0,32 01
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

E1 = Encoder TTL 2000 ppr R1 = Resolver 2p A1 = Absolute multiturn encoder

Brake

0 = without brake 1 = with brake

Connection

Anwendungen

Medical Biomedical Agriculture Processing & Packaging Logistic & Intralogistic

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC 40 0,32 01


TC 40

TC-40-Dimensions.pdf (pdf, 375.15K)

TC-Servo-Drive.pdf (pdf, 3.02M)

TC-Brake-Features.pdf (pdf, 256.12K)

TC-40-Torque-Speed-Chart.pdf (pdf, 559.55K)

TC-Feedback-Features.pdf (pdf, 162.32K)

TC-Thermal-Protection-Features.pdf (pdf, 256.31K)

Datenblatt

TC-Wiring-Cables-Connectors.pdf (pdf, 1.86M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Comments

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Specification

Parameter	Unit	TC 40 0,32 21
Continous Stall Torque	Nm	0.34
Peak Torque	Nm	0.96
Nominal Torque	Nm	0.32
Rated Voltage	V	230
Nominal power	W	100
Continuous stall Current	Arms	0.65
Maximun Current	Arms	1.82
Nominal Current	Arms	0.62
Nominal working Speed	rpm	3000
Maximum working speed 24VDC	rpm	–
Maximum working speed 48VDC	rpm	–
Maximum working speed 230VAC	rpm	5000
Torque Constant	Nm/Arms	0.526
Voltage Constant	Vrms/Krpm	31.8
Winding resistance	Ohm	36.2
Winding inductance	mH	44
Electrical time constant	ms	1.21
Thermal Resistance	°C/W	2.3
Mechanical time constant	ms	0.92
Rotor Inertia without brake and without feedback	kg·cm²	0.047
Mass without holding brake	Kg	0.54
Mass with holding brake	Kg	0.68
Mass without holding brake with absolute encoder	Kg	0.55
Mass with holding brake with absolute encoder	Kg	0.75
Maximum axial shaft load applied on the shaft’s center	N	30
Maximun radial shaft load applied on the shaft’s center	N	180

Family Specification

Family Specification	Unit	TC 40 0,32 21
Time Rating		Continuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity	%	5 to 85% (non-condensing)
Poles		8
Thermal Protection		Not available
Certification		CE
Recommendation		Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	TC 40 0,32 21
Flange dimensions	mm	40
Rated Output Power	Watt	60 – 100
Rated Torque	Nm	0,19 – 0,32
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

Feedback

E1 = Encoder TTL 2000 ppr R1 = Resolver 2p A1 = Absolute multiturn encoder

Brake

0 = without brake 1 = with brake

Connection

Anwendungen

Medical Biomedical Agriculture Processing & Packaging Logistic & Intralogistic

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

TC 40 0,32 21


TC 40

TC-40-Dimensions.pdf (pdf, 375.15K)

TC-Servo-Drive.pdf (pdf, 3.02M)

TC-Brake-Features.pdf (pdf, 256.12K)

TC-40-Torque-Speed-Chart.pdf (pdf, 559.55K)

TC-Feedback-Features.pdf (pdf, 162.32K)

TC-Thermal-Protection-Features.pdf (pdf, 256.31K)

Datenblatt

TC-Wiring-Cables-Connectors.pdf (pdf, 1.86M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Produkt

Stückzahl

Firma(erforderlich)

Telefon

Name

E-Mail(erforderlich)

Anschrift

Nachricht

CAPTCHA

Phone

Dieses Feld dient zur Validierung und sollte nicht verändert werden.

Weiterlesen	TC 40 0,16 32	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
Weiterlesen	TC 40 0,16 01	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
Weiterlesen	TC 40 0,32 01	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
Weiterlesen	TC 40 0,32 21	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Brushless DC Motors

Brushed DC Motors

Stepper Motors

Linear Actuators

Controller

Industrieautomation / Maschinenbau

Sicherheitstechnik / Schließtechnik

Smart Home und Gebäudetechnik

Medizintechnik

Akkutools

Automotive

TC 40

Beschreibung

Ähnliche Produkte

ELM1H-0050MA40F

ELM1H-0100MA40E

ELM1H-0750MA80F

ELM1H-1300MD130F-H

Specification

Family Specification

Family Overview

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

Anwendungen

TC 40

Datenblatt

TC 40 0,16 32

TC 40 0,16 01

TC 40 0,32 01

TC 40 0,32 21

Nehmen Sie Kontakt auf

Specification

Family Specification

Family Overview

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

Anwendungen

TC 40 0,16 32

TC 40

Datenblatt

Nehmen Sie Kontakt auf

Specification

Family Specification

Family Overview

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

Anwendungen

TC 40 0,16 01

TC 40

Datenblatt

Nehmen Sie Kontakt auf

Specification

Family Specification

Family Overview

Optionen

Mechanical Arrangement

Feedback

Brake

Connection

Anwendungen

TC 40 0,32 01

TC 40

Datenblatt

Nehmen Sie Kontakt auf

Specification

Family Specification

Family Overview

Optionen

Mechanical Arrangement

Feedback

Brake
