Size 24 [60mm] Stepper Lead Screw Linear Actuator provides high performance, a longer working cycle, and is capable of 1050N.

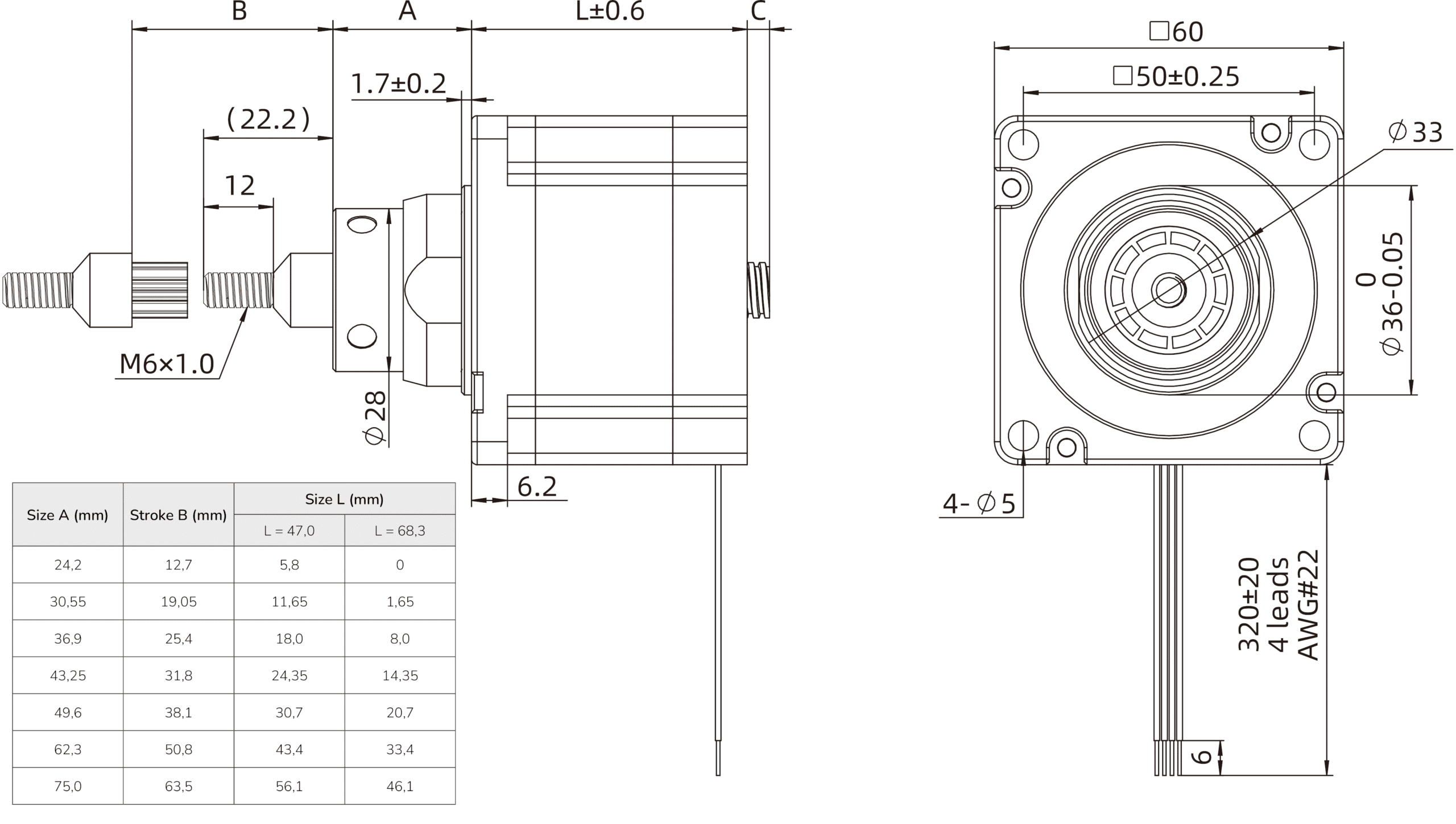

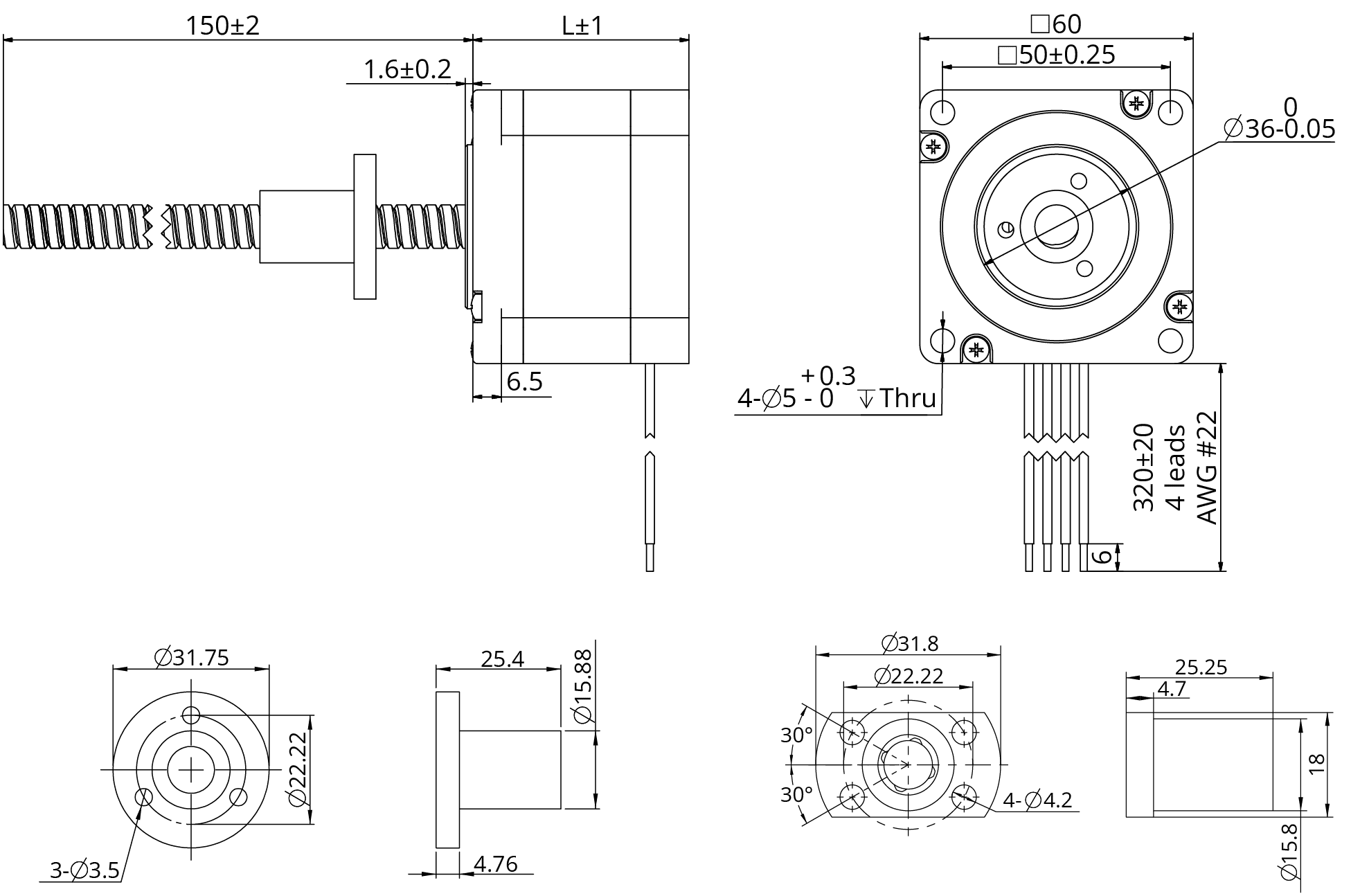

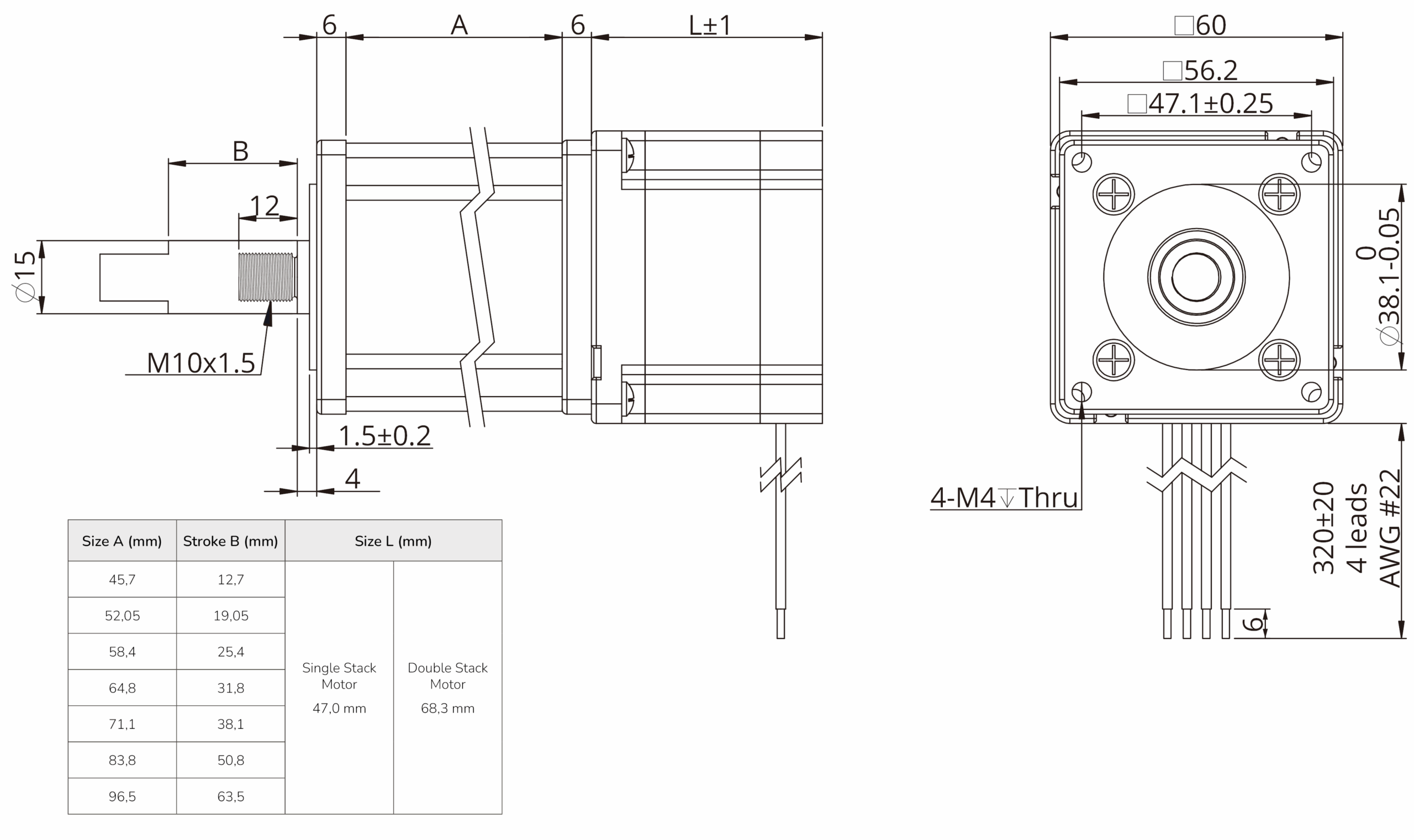

Size 24 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
Size 24 [60mm] Stepper Lead Screw Linear Actuator provides high performance, a longer working cycle, and is capable of 1050N.
Size 24 Stepper Lead Screw Linear Actuator has four form factors available – External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
![SLSLA - Size 6 [14mm]](https://www.kocomotion.de/wp-content/uploads/2024/06/stepper_size614mm-300x300.png)
inkl. MwSt.
Produkte anzeigen![SBSLA - Size 8 [20mm]](https://www.kocomotion.de/wp-content/uploads/2024/06/Ball_size820mm-300x300.png)
inkl. MwSt.
Produkte anzeigen![SLSLA - Size 11 [28mm]](https://www.kocomotion.de/wp-content/uploads/2024/06/stepper_size1128mm-300x300.png)
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen| Motor Characteristics | 24-2120 | 24-2130 | 24-2140 | 24-2230 | 24-2240 | 24-2250 |
|---|---|---|---|---|---|---|
| Voltage | 3 V | 1.8 V | 1.6 V | 3 V | 2.4 V | 1.5 V |
| Current | 2 A | 3 A | 4 A | 3 A | 4 A | 5 A |
| Resistance | 1.5 Ω | 0.6 Ω | 0.4 Ω | 1 Ω | 0.6 Ω | 0.3 Ω |
| Inductance | 3.9 mH | 1.6 mH | 0.9 mH | 3.4 mH | 1.9 mH | 1.2 mH |
| Weight | 680 g | 680 g | 680 g | 1080 g | 1080 g | 1080 g |
| Lead Wire No. | 4 | 4 | 4 | 4 | 4 | 4 |
| Motor Length | 47 mm | 47 mm | 47 mm | 68.3 mm | 68.3 mm | 68.3 mm |
| Size | 24 Nema | 24 Nema | 24 Nema | 24 Nema | 24 Nema | 24 Nema |
| Flange size | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Lead Screw Code | SLSLA – Size 24 [60mm] |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 24-2120 |
|---|---|
| Voltage | 3 V |
| Current | 2 A |
| Resistance | 1.5 Ω |
| Inductance | 3.9 mH |
| Weight | 680 g |
| Lead Wire No. | 4 |
| Motor Length | 47 mm |
| Size | 24 Nema |
| Flange size | 60 mm |
| Lead Screw Code | 24-2120 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 24-2130 |
|---|---|
| Voltage | 1.8 V |
| Current | 3 A |
| Resistance | 0.6 Ω |
| Inductance | 1.6 mH |
| Weight | 680 g |
| Lead Wire No. | 4 |
| Motor Length | 47 mm |
| Size | 24 Nema |
| Flange size | 60 mm |
| Lead Screw Code | 24-2130 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 24-2140 |
|---|---|
| Voltage | 1.6 V |
| Current | 4 A |
| Resistance | 0.4 Ω |
| Inductance | 0.9 mH |
| Weight | 680 g |
| Lead Wire No. | 4 |
| Motor Length | 47 mm |
| Size | 24 Nema |
| Flange size | 60 mm |
| Lead Screw Code | 24-2140 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 24-2230 |
|---|---|
| Voltage | 3 V |
| Current | 3 A |
| Resistance | 1 Ω |
| Inductance | 3.4 mH |
| Weight | 1080 g |
| Lead Wire No. | 4 |
| Motor Length | 68.3 mm |
| Size | 24 Nema |
| Flange size | 60 mm |
| Lead Screw Code | 24-2230 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 24-2240 |
|---|---|
| Voltage | 2.4 V |
| Current | 4 A |
| Resistance | 0.6 Ω |
| Inductance | 1.9 mH |
| Weight | 1080 g |
| Lead Wire No. | 4 |
| Motor Length | 68.3 mm |
| Size | 24 Nema |
| Flange size | 60 mm |
| Lead Screw Code | 24-2240 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
| Specification | 24-2250 |
|---|---|
| Voltage | 1.5 V |
| Current | 5 A |
| Resistance | 0.3 Ω |
| Inductance | 1.2 mH |
| Weight | 1080 g |
| Lead Wire No. | 4 |
| Motor Length | 68.3 mm |
| Size | 24 Nema |
| Flange size | 60 mm |
| Lead Screw Code | 24-2250 |
|---|---|
| G, Screw Lead | 10 mm |
| A, Screw Lead | 9.525 mm |
| D, Screw Lead | 9.525 mm |
| F, Screw Lead | 9.525 mm |
| H, Screw Lead | 9.525 mm |
| K, Screw Lead | 9.525 mm |
| L, Screw Lead | 9.525 mm |
| P, Screw Lead | 9.525 mm |
| R, Screw Lead | 9.525 mm |
| S, Screw Lead | 9.525 mm |
| V, Screw Lead | 9.525 mm |
| W, Screw Lead | 9.525 mm |
| X, Screw Lead | 9.525 mm |
| Y, Screw Lead | 9.525 mm |
| Z, Screw Lead | 9.525 mm |
