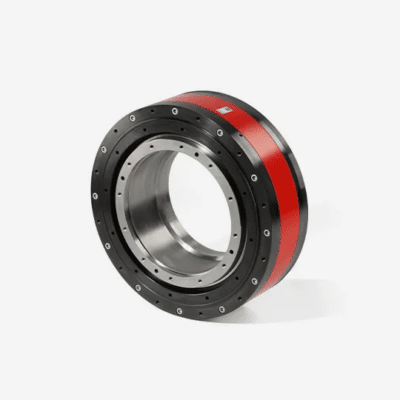

SKA RT 430

Name: SKA RT 430 - KOCO MOTION
SKU: SKA RT 430

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

SKA Rotary Table
Stall Torque: 210 – 760 Nm
Peak Torque: 458 – 2400 Nm
Rated Speed: 70/100 rpm
Rated Volatage: 400 Vac
External Diameter (D): 490 mm
Holed Diameter (d): 290 mm

Weiterlesen	SKA RT 430.30 56	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 430.60 52	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 430.60 56	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 430.90 55	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 430.90 56	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 430.120 53	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 430.150 66	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 430.180 54	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.

Artikelnummer: SKA RT 430 Kategorie: Unkategorisiert

Beschreibung

Beschreibung

SKA Rotary Table
Stall Torque: 210 – 760 Nm
Peak Torque: 458 – 2400 Nm
Rated Speed: 70/100 rpm
Rated Volatage: 400 Vac
External Diameter (D): 490 mm
Holed Diameter (d): 290 mm

Produktvergleich

Specification	SKA RT 430.30 56	SKA RT 430.60 52	SKA RT 430.60 56	SKA RT 430.90 55	SKA RT 430.90 56	SKA RT 430.120 53	SKA RT 430.150 66	SKA RT 430.180 54
Stall torque	210 Nm	340 Nm	340 Nm	450 Nm	450 Nm	560 Nm	660 Nm	760 Nm
Peak torque	458 Nm	840 Nm	840 Nm	1200 Nm	1200 Nm	1600 Nm	1900 Nm	2400 Nm
Rated torque	175 Nm	268 Nm	268 Nm	332 Nm	332 Nm	450 Nm	520 Nm	680 Nm
Rated voltage	400 Vac	400 Vac	400 Vac	400 Vac	400 Vac	400 Vac	400 Vac	400 Vac
Stall current	9.07 Arms	21.63 Arms	14.68 Arms	4.77 Arms	19.43 Arms	17.82 Arms	17.73 Arms	14.58 Arms
Peak current	27 Arms	70 Arms	47.5 Arms	17.19 Arms	70 Arms	70 Arms	70 Arms	63.5 Arms
Rated current	7.78 Arms	17.56 Arms	11.92 Arms	3.63 Arms	14.77 Arms	14.75 Arms	14.39 Arms	13.44 Arms
Rated speed	100 rpm	100 rpm	100 rpm	60 rpm	100 rpm	100 rpm	100 rpm	100 rpm
Maximum speed	150 rpm	150 rpm	150 rpm	70 rpm	150 rpm	150 rpm	150 rpm	110 rpm
Torque constant	23.16 Nm/Arms	15.72 Nm/Arms	23.16 Nm/Arms	94.29 Nm/Arms	23.16 Nm/Arms	31.43 Nm/Arms	37.22 Nm/Arms	52.11 Nm/Arms
Voltage constant	1400 Vrms/krpm	950 Vrms/krpm	1400 Vrms/krpm	5700 Vrms/krpm	1400 Vrms/krpm	1900 Vrms/krpm	2250 Vrms/krpm	3150 Vrms/krpm
Phase/phase resistance	3.25 Ω	0.68 Ω	1.47 Ω	16.16 Ω	0.98 Ω	1.37 Ω	1.64 Ω	2.5 Ω
Phase/phase inductance	22.8 mH	6.68 mH	14.5 mH	162 mH	9.8 mH	16 mH	20 mH	32 mH
Electrical time constant	7 msec	9.9 msec	9.9 msec	10 msec	10.1 msec	11.7 msec	12.2 msec	12.8 msec
Thermal resistance	0.17 °C/W	0.14 °C/W	0.14 °C/W	0.12 °C/W	0.12 °C/W	0.1 °C/W	0.09 °C/W	0.09 °C/W
Mechanical time constant	7.91 ms	4.37 ms	4.37 ms	3.43 ms	3.43 ms	3.01 ms	2.92 ms	2.54 ms
Max. theoretical acceleration	527 rad/s2	790 rad/s2	790 rad/s2	954 rad/s2	954 rad/s2	1102 rad/s2	1155 rad/s2	1305 rad/s2
Rotor inertia	8698 kg·cm²	10637 kg·cm²	10637 kg·cm²	12577 kg·cm²	12577 kg·cm²	14516 kg·cm²	16455 kg·cm²	18394 kg·cm²
Motor height H	150 mm	180 mm	180 mm	210 mm	210 mm	240 mm	270 mm	300 mm
Motor weight	105.7 Kg	133.7 Kg	133.7 Kg	161.1 Kg	161.1 Kg	188.7 Kg	215.7 Kg	243.3 Kg
Radial load	7700 N(@30rpm)	7700 N(@30rpm)	7700 N(@30rpm)	7700 N(@30rpm)	7700 N(@30rpm)	7700 N(@30rpm)	7700 N(@30rpm)	7700 N(@30rpm)
Axial load	6700 N(@60rpm)	6700 N(@60rpm)	6700 N(@60rpm)	6700 N(@60rpm)	6700 N(@60rpm)	6700 N(@60rpm)	6700 N(@60rpm)	6700 N(@60rpm)
Tilt moment	800 N(@15rpm)	800 N(@15rpm)	800 N(@15rpm)	800 N(@15rpm)	800 N(@15rpm)	800 N(@15rpm)	800 N(@15rpm)	800 N(@15rpm)

Family Specification	SKA RT 430
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	56
Thermal protection	PT 1000

Family Overview	SKA RT 430
Stall Torque	10 – 760 Nm
Peak Torque	458 – 2400 Nm
Rated Speed	70/100 rpm
Rated Voltage	400 Vac
External Diameter (D)	490 mm
Hole Diameter (d)	290 mm

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 430.30 56
Stall torque	210 Nm
Peak torque	458 Nm
Rated torque	175 Nm
Rated voltage	400 Vac
Stall current	9.07 Arms
Peak current	27 Arms
Rated current	7.78 Arms
Rated speed	100 rpm
Maximum speed	150 rpm
Torque constant	23.16 Nm/Arms
Voltage constant	1400 Vrms/krpm
Phase/phase resistance	3.25 Ω
Phase/phase inductance	22.8 mH
Electrical time constant	7 msec
Thermal resistance	0.17 °C/W
Mechanical time constant	7.91 ms
Max. theoretical acceleration	527 rad/s2
Rotor inertia	8698 kg·cm²
Motor height H	150 mm
Motor weight	105.7 Kg
Radial load	7700 N(@30rpm)
Axial load	6700 N(@60rpm)
Tilt moment	800 N(@15rpm)

Family Specification	SKA RT 430.30 56
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	56
Thermal protection	PT 1000

Family Overview	SKA RT 430.30 56
Stall Torque	10 – 760 Nm
Peak Torque	458 – 2400 Nm
Rated Speed	70/100 rpm
Rated Voltage	400 Vac
External Diameter (D)	490 mm
Hole Diameter (d)	290 mm

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 430.60 52
Stall torque	340 Nm
Peak torque	840 Nm
Rated torque	268 Nm
Rated voltage	400 Vac
Stall current	21.63 Arms
Peak current	70 Arms
Rated current	17.56 Arms
Rated speed	100 rpm
Maximum speed	150 rpm
Torque constant	15.72 Nm/Arms
Voltage constant	950 Vrms/krpm
Phase/phase resistance	0.68 Ω
Phase/phase inductance	6.68 mH
Electrical time constant	9.9 msec
Thermal resistance	0.14 °C/W
Mechanical time constant	4.37 ms
Max. theoretical acceleration	790 rad/s2
Rotor inertia	10637 kg·cm²
Motor height H	180 mm
Motor weight	133.7 Kg
Radial load	7700 N(@30rpm)
Axial load	6700 N(@60rpm)
Tilt moment	800 N(@15rpm)

Family Specification	SKA RT 430.60 52
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	56
Thermal protection	PT 1000

Family Overview	SKA RT 430.60 52
Stall Torque	10 – 760 Nm
Peak Torque	458 – 2400 Nm
Rated Speed	70/100 rpm
Rated Voltage	400 Vac
External Diameter (D)	490 mm
Hole Diameter (d)	290 mm

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 430.60 56
Stall torque	340 Nm
Peak torque	840 Nm
Rated torque	268 Nm
Rated voltage	400 Vac
Stall current	14.68 Arms
Peak current	47.5 Arms
Rated current	11.92 Arms
Rated speed	100 rpm
Maximum speed	150 rpm
Torque constant	23.16 Nm/Arms
Voltage constant	1400 Vrms/krpm
Phase/phase resistance	1.47 Ω
Phase/phase inductance	14.5 mH
Electrical time constant	9.9 msec
Thermal resistance	0.14 °C/W
Mechanical time constant	4.37 ms
Max. theoretical acceleration	790 rad/s2
Rotor inertia	10637 kg·cm²
Motor height H	180 mm
Motor weight	133.7 Kg
Radial load	7700 N(@30rpm)
Axial load	6700 N(@60rpm)
Tilt moment	800 N(@15rpm)

Family Specification	SKA RT 430.60 56
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	56
Thermal protection	PT 1000

Family Overview	SKA RT 430.60 56
Stall Torque	10 – 760 Nm
Peak Torque	458 – 2400 Nm
Rated Speed	70/100 rpm
Rated Voltage	400 Vac
External Diameter (D)	490 mm
Hole Diameter (d)	290 mm

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 430.90 55
Stall torque	450 Nm
Peak torque	1200 Nm
Rated torque	332 Nm
Rated voltage	400 Vac
Stall current	4.77 Arms
Peak current	17.19 Arms
Rated current	3.63 Arms
Rated speed	60 rpm
Maximum speed	70 rpm
Torque constant	94.29 Nm/Arms
Voltage constant	5700 Vrms/krpm
Phase/phase resistance	16.16 Ω
Phase/phase inductance	162 mH
Electrical time constant	10 msec
Thermal resistance	0.12 °C/W
Mechanical time constant	3.43 ms
Max. theoretical acceleration	954 rad/s2
Rotor inertia	12577 kg·cm²
Motor height H	210 mm
Motor weight	161.1 Kg
Radial load	7700 N(@30rpm)
Axial load	6700 N(@60rpm)
Tilt moment	800 N(@15rpm)

Family Specification	SKA RT 430.90 55
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	56
Thermal protection	PT 1000

Family Overview	SKA RT 430.90 55
Stall Torque	10 – 760 Nm
Peak Torque	458 – 2400 Nm
Rated Speed	70/100 rpm
Rated Voltage	400 Vac
External Diameter (D)	490 mm
Hole Diameter (d)	290 mm

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 430.90 56
Stall torque	450 Nm
Peak torque	1200 Nm
Rated torque	332 Nm
Rated voltage	400 Vac
Stall current	19.43 Arms
Peak current	70 Arms
Rated current	14.77 Arms
Rated speed	100 rpm
Maximum speed	150 rpm
Torque constant	23.16 Nm/Arms
Voltage constant	1400 Vrms/krpm
Phase/phase resistance	0.98 Ω
Phase/phase inductance	9.8 mH
Electrical time constant	10.1 msec
Thermal resistance	0.12 °C/W
Mechanical time constant	3.43 ms
Max. theoretical acceleration	954 rad/s2
Rotor inertia	12577 kg·cm²
Motor height H	210 mm
Motor weight	161.1 Kg
Radial load	7700 N(@30rpm)
Axial load	6700 N(@60rpm)
Tilt moment	800 N(@15rpm)

Family Specification	SKA RT 430.90 56
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	56
Thermal protection	PT 1000

Family Overview	SKA RT 430.90 56
Stall Torque	10 – 760 Nm
Peak Torque	458 – 2400 Nm
Rated Speed	70/100 rpm
Rated Voltage	400 Vac
External Diameter (D)	490 mm
Hole Diameter (d)	290 mm

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 430.120 53
Stall torque	560 Nm
Peak torque	1600 Nm
Rated torque	450 Nm
Rated voltage	400 Vac
Stall current	17.82 Arms
Peak current	70 Arms
Rated current	14.75 Arms
Rated speed	100 rpm
Maximum speed	150 rpm
Torque constant	31.43 Nm/Arms
Voltage constant	1900 Vrms/krpm
Phase/phase resistance	1.37 Ω
Phase/phase inductance	16 mH
Electrical time constant	11.7 msec
Thermal resistance	0.1 °C/W
Mechanical time constant	3.01 ms
Max. theoretical acceleration	1102 rad/s2
Rotor inertia	14516 kg·cm²
Motor height H	240 mm
Motor weight	188.7 Kg
Radial load	7700 N(@30rpm)
Axial load	6700 N(@60rpm)
Tilt moment	800 N(@15rpm)

Family Specification	SKA RT 430.120 53
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	56
Thermal protection	PT 1000

Family Overview	SKA RT 430.120 53
Stall Torque	10 – 760 Nm
Peak Torque	458 – 2400 Nm
Rated Speed	70/100 rpm
Rated Voltage	400 Vac
External Diameter (D)	490 mm
Hole Diameter (d)	290 mm

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 430.150 66
Stall torque	660 Nm
Peak torque	1900 Nm
Rated torque	520 Nm
Rated voltage	400 Vac
Stall current	17.73 Arms
Peak current	70 Arms
Rated current	14.39 Arms
Rated speed	100 rpm
Maximum speed	150 rpm
Torque constant	37.22 Nm/Arms
Voltage constant	2250 Vrms/krpm
Phase/phase resistance	1.64 Ω
Phase/phase inductance	20 mH
Electrical time constant	12.2 msec
Thermal resistance	0.09 °C/W
Mechanical time constant	2.92 ms
Max. theoretical acceleration	1155 rad/s2
Rotor inertia	16455 kg·cm²
Motor height H	270 mm
Motor weight	215.7 Kg
Radial load	7700 N(@30rpm)
Axial load	6700 N(@60rpm)
Tilt moment	800 N(@15rpm)

Family Specification	SKA RT 430.150 66
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	56
Thermal protection	PT 1000

Family Overview	SKA RT 430.150 66
Stall Torque	10 – 760 Nm
Peak Torque	458 – 2400 Nm
Rated Speed	70/100 rpm
Rated Voltage	400 Vac
External Diameter (D)	490 mm
Hole Diameter (d)	290 mm

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 430.180 54
Stall torque	760 Nm
Peak torque	2400 Nm
Rated torque	680 Nm
Rated voltage	400 Vac
Stall current	14.58 Arms
Peak current	63.5 Arms
Rated current	13.44 Arms
Rated speed	100 rpm
Maximum speed	110 rpm
Torque constant	52.11 Nm/Arms
Voltage constant	3150 Vrms/krpm
Phase/phase resistance	2.5 Ω
Phase/phase inductance	32 mH
Electrical time constant	12.8 msec
Thermal resistance	0.09 °C/W
Mechanical time constant	2.54 ms
Max. theoretical acceleration	1305 rad/s2
Rotor inertia	18394 kg·cm²
Motor height H	300 mm
Motor weight	243.3 Kg
Radial load	7700 N(@30rpm)
Axial load	6700 N(@60rpm)
Tilt moment	800 N(@15rpm)

Family Specification	SKA RT 430.180 54
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	56
Thermal protection	PT 1000

Family Overview	SKA RT 430.180 54
Stall Torque	10 – 760 Nm
Peak Torque	458 – 2400 Nm
Rated Speed	70/100 rpm
Rated Voltage	400 Vac
External Diameter (D)	490 mm
Hole Diameter (d)	290 mm

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Brushless DC Motors

Brushed DC Motors

Stepper Motors

Linear Actuators

Controller

Industrieautomation / Maschinenbau

Sicherheitstechnik / Schließtechnik

Smart Home und Gebäudetechnik

Medizintechnik

Akkutools

Automotive

SKA RT 430

Beschreibung

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Deutschland

KOCO automotive GmbH

USA

KOCO DC-Motion, Inc

Brushless DC Motors

Brushed DC Motors

Stepper Motors

Linear Actuators

Controller

Industrieautomation / Maschinenbau

Sicherheitstechnik / Schließtechnik

Smart Home und Gebäudetechnik

Medizintechnik

Akkutools

Automotive

SKA RT 430

Beschreibung

Ähnliche Produkte

SKA RT 148

SKA RT 245

SKA RT 335.150 65

SKA RT 245.90 51

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf

Nehmen Sie Kontakt auf
