SKA RT 335

Name: SKA RT 335 - KOCO MOTION
SKU: SKA RT 335

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

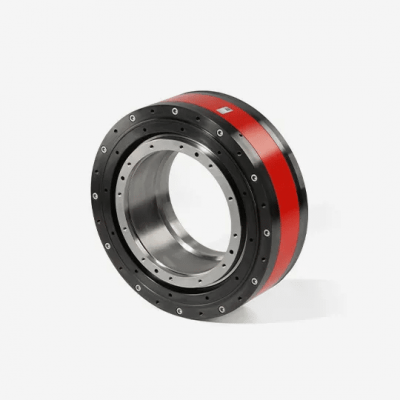

SKA Rotary Table
Stall Torque: 100 – 320 Nm
Peak Torque: 290 – 1200 Nm
Rated Speed: 150 rpm
Rated Volatage: 400 Vac
External Diameter (D): 390 mm
Hole Diameter (d): 190 mm

Weiterlesen	SKA RT 335.30 51	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 335.30 65	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 335.60 65	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 335.90 65	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 335.120 65	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 335.150 54	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	SKA RT 335.150 65	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.

Artikelnummer: SKA RT 335 Kategorie: Unkategorisiert

Beschreibung

Beschreibung

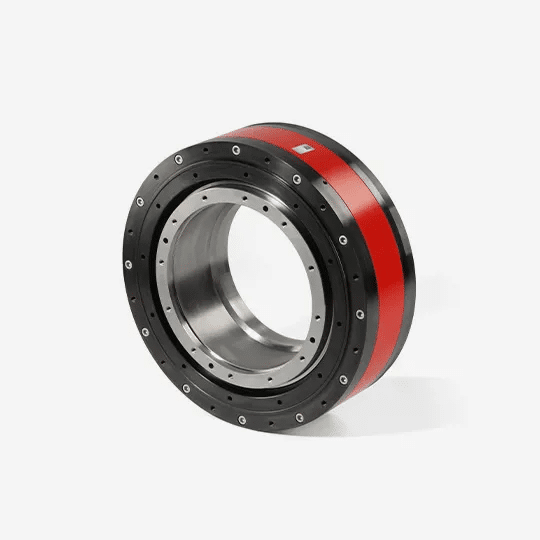

SKA Rotary Table
Stall Torque: 100 – 320 Nm
Peak Torque: 290 – 1200 Nm
Rated Speed: 150 rpm
Rated Volatage: 400 Vac
External Diameter (D): 390 mm
Hole Diameter (d): 190 mm

Produktvergleich

Specification	SKA RT 335.30 51	SKA RT 335.30 65	SKA RT 335.60 65	SKA RT 335.90 65	SKA RT 335.120 65	SKA RT 335.150 54	SKA RT 335.150 65
Stall torque	100 Nm	100 Nm	164 Nm	220 Nm	270 Nm	320 Nm	320 Nm
Peak torque	290 Nm	290 Nm	535 Nm	800 Nm	975 Nm	1200 Nm	1200 Nm
Rated torque	87 Nm	87 Nm	136 Nm	167 Nm	206 Nm	232 Nm	232 Nm
Rated voltage	400 Vac	400 Vac	400 Vac	400 Vac	400 Vac	400 Vac	400 Vac
Stall current	10.61 Arms	5.26 Arms	8.62 Arms	11.56 Arms	14.19 Arms	6.14 Arms	16.82 Arms
Peak current	36.7 Arms	18.19 Arms	33.04 Arms	50.06 Arms	57.82 Arms	25.56 Arms	70 Arms
Rated current	9.5 Arms	4.71 Arms	7.36 Arms	9.04 Arms	11.15 Arms	4.59 Arms	12.56 Arms
Rated speed	150 rpm	150 rpm	150 rpm	150 rpm	150 rpm	110 rpm	150 rpm
Maximum speed	200 rpm	200 rpm	200 rpm	200 rpm	200 rpm	127 rpm	200 rpm
Torque constant	9.43 Nm/Arms	19.02 Nm/Arms	19.02 Nm/Arms	19.02 Nm/Arms	19.02 Nm/Arms	52.11 Nm/Arms	19.02 Nm/Arms
Voltage constant	570 Vrms/krpm	1150 Vrms/krpm	1150 Vrms/krpm	1150 Vrms/krpm	1150 Vrms/krpm	3150 Vrms/krpm	1150 Vrms/krpm
Phase/phase resistance	1.6 Ω	6.5 Ω	2.96 Ω	2.07 Ω	1.44 Ω	8.1 Ω	1.08 Ω
Phase/phase inductance	10.66 mH	43.39 mH	27.16 mH	19.71 mH	15.77 mH	90.03 mH	12 mH
Electrical time constant	6.7 msec	6.7 msec	9.2 msec	9.5 msec	11 msec	11.1 msec	11.1 msec
Thermal resistance	0.25 °C/W	0.25 °C/W	0.21 °C/W	0.16 °C/W	0.16 °C/W	0.15 °C/W	0.15 °C/W
Mechanical time constant	7.68 ms	7.68 ms	4.45 ms	3.78 ms	3.1 ms	2.67 ms	2.67 ms
Max. theoretical acceleration	1019 rad/s2	1019 rad/s2	1474 rad/s2	1814 rad/s2	1878 rad/s2	2008 rad/s2	2008 rad/s2
Rotor inertia	2847 kg·cm²	2847 kg·cm²	3629 kg·cm²	4411 kg·cm²	5193 kg·cm²	5975 kg·cm²	5975 kg·cm²
Motor height H	138 mm	138 mm	168 mm	198 mm	228 mm	258 mm	258 mm
Motor weight	73.1 Kg	73.1 Kg	94.1 Kg	115 Kg	136 Kg	157 Kg	157 Kg
Radial load	6900 N(@30rpm)	6900 N(@30rpm)	6900 N(@30rpm)	6900 N(@30rpm)	6900 N(@30rpm)	6900 N(@30rpm)	6900 N(@30rpm)
Axial load	6300 N(@60rpm)	6300 N(@60rpm)	6300 N(@60rpm)	6300 N(@60rpm)	6300 N(@60rpm)	6300 N(@60rpm)	6300 N(@60rpm)
Tilt moment	600 N(@15rpm)	600 N(@15rpm)	600 N(@15rpm)	600 N(@15rpm)	600 N(@15rpm)	600 N(@15rpm)	600 N(@15rpm)

Family Specification	SKA RT 335
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	42
Thermal protection	PT 1000

Family Overview	SKA RT 335
Stall Torque	100 – 320 Nm
Peak Torque	290 – 1200 Nm
Rated Speed	150 rpm
Rated Voltage	400 Vac
External Diameter (D)	390 mm
Hole Diameter (d)	190 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 335

Datenblatt

Dimensions (pdf, 554.83K)

Torque-Speed-Chart (pdf, 530.03K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 335.30 51
Stall torque	100 Nm
Peak torque	290 Nm
Rated torque	87 Nm
Rated voltage	400 Vac
Stall current	10.61 Arms
Peak current	36.7 Arms
Rated current	9.5 Arms
Rated speed	150 rpm
Maximum speed	200 rpm
Torque constant	9.43 Nm/Arms
Voltage constant	570 Vrms/krpm
Phase/phase resistance	1.6 Ω
Phase/phase inductance	10.66 mH
Electrical time constant	6.7 msec
Thermal resistance	0.25 °C/W
Mechanical time constant	7.68 ms
Max. theoretical acceleration	1019 rad/s2
Rotor inertia	2847 kg·cm²
Motor height H	138 mm
Motor weight	73.1 Kg
Radial load	6900 N(@30rpm)
Axial load	6300 N(@60rpm)
Tilt moment	600 N(@15rpm)

Family Specification	SKA RT 335.30 51
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	42
Thermal protection	PT 1000

Family Overview	SKA RT 335.30 51
Stall Torque	100 – 320 Nm
Peak Torque	290 – 1200 Nm
Rated Speed	150 rpm
Rated Voltage	400 Vac
External Diameter (D)	390 mm
Hole Diameter (d)	190 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 335

Datenblatt

Dimensions (pdf, 554.83K)

Torque-Speed-Chart (pdf, 530.03K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 335.30 65
Stall torque	100 Nm
Peak torque	290 Nm
Rated torque	87 Nm
Rated voltage	400 Vac
Stall current	5.26 Arms
Peak current	18.19 Arms
Rated current	4.71 Arms
Rated speed	150 rpm
Maximum speed	200 rpm
Torque constant	19.02 Nm/Arms
Voltage constant	1150 Vrms/krpm
Phase/phase resistance	6.5 Ω
Phase/phase inductance	43.39 mH
Electrical time constant	6.7 msec
Thermal resistance	0.25 °C/W
Mechanical time constant	7.68 ms
Max. theoretical acceleration	1019 rad/s2
Rotor inertia	2847 kg·cm²
Motor height H	138 mm
Motor weight	73.1 Kg
Radial load	6900 N(@30rpm)
Axial load	6300 N(@60rpm)
Tilt moment	600 N(@15rpm)

Family Specification	SKA RT 335.30 65
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	42
Thermal protection	PT 1000

Family Overview	SKA RT 335.30 65
Stall Torque	100 – 320 Nm
Peak Torque	290 – 1200 Nm
Rated Speed	150 rpm
Rated Voltage	400 Vac
External Diameter (D)	390 mm
Hole Diameter (d)	190 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 335

Datenblatt

Dimensions (pdf, 554.83K)

Torque-Speed-Chart (pdf, 530.03K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 335.60 65
Stall torque	164 Nm
Peak torque	535 Nm
Rated torque	136 Nm
Rated voltage	400 Vac
Stall current	8.62 Arms
Peak current	33.04 Arms
Rated current	7.36 Arms
Rated speed	150 rpm
Maximum speed	200 rpm
Torque constant	19.02 Nm/Arms
Voltage constant	1150 Vrms/krpm
Phase/phase resistance	2.96 Ω
Phase/phase inductance	27.16 mH
Electrical time constant	9.2 msec
Thermal resistance	0.21 °C/W
Mechanical time constant	4.45 ms
Max. theoretical acceleration	1474 rad/s2
Rotor inertia	3629 kg·cm²
Motor height H	168 mm
Motor weight	94.1 Kg
Radial load	6900 N(@30rpm)
Axial load	6300 N(@60rpm)

Family Specification	SKA RT 335.60 65
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	42
Thermal protection	PT 1000

Family Overview	SKA RT 335.60 65
Stall Torque	100 – 320 Nm
Peak Torque	290 – 1200 Nm
Rated Speed	150 rpm
Rated Voltage	400 Vac
External Diameter (D)	390 mm
Hole Diameter (d)	190 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 335

Datenblatt

Dimensions (pdf, 554.83K)

Torque-Speed-Chart (pdf, 530.03K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 335.90 65
Tilt moment	600 N(@15rpm)
Stall torque	220 Nm
Peak torque	800 Nm
Rated torque	167 Nm
Rated voltage	400 Vac
Stall current	11.56 Arms
Peak current	50.06 Arms
Rated current	9.04 Arms
Rated speed	150 rpm
Maximum speed	200 rpm
Torque constant	19.02 Nm/Arms
Voltage constant	1150 Vrms/krpm
Phase/phase resistance	2.07 Ω
Phase/phase inductance	19.71 mH
Electrical time constant	9.5 msec
Thermal resistance	0.16 °C/W
Mechanical time constant	3.78 ms
Max. theoretical acceleration	1814 rad/s2
Rotor inertia	4411 kg·cm²
Motor height H	198 mm
Motor weight	115 Kg
Radial load	6900 N(@30rpm)
Axial load	6300 N(@60rpm)

Family Specification	SKA RT 335.90 65
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	42
Thermal protection	PT 1000

Family Overview	SKA RT 335.90 65
Stall Torque	100 – 320 Nm
Peak Torque	290 – 1200 Nm
Rated Speed	150 rpm
Rated Voltage	400 Vac
External Diameter (D)	390 mm
Hole Diameter (d)	190 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 335

Datenblatt

Dimensions (pdf, 554.83K)

Torque-Speed-Chart (pdf, 530.03K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 335.120 65
Stall torque	270 Nm
Peak torque	975 Nm
Rated torque	206 Nm
Rated voltage	400 Vac
Stall current	14.19 Arms
Peak current	57.82 Arms
Rated current	11.15 Arms
Rated speed	150 rpm
Maximum speed	200 rpm
Torque constant	19.02 Nm/Arms
Voltage constant	1150 Vrms/krpm
Phase/phase resistance	1.44 Ω
Phase/phase inductance	15.77 mH
Electrical time constant	11 msec
Thermal resistance	0.16 °C/W
Mechanical time constant	3.1 ms
Max. theoretical acceleration	1878 rad/s2
Rotor inertia	5193 kg·cm²
Motor height H	228 mm
Motor weight	136 Kg
Radial load	6900 N(@30rpm)
Axial load	6300 N(@60rpm)
Tilt moment	600 N(@15rpm)

Family Specification	SKA RT 335.120 65
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	42
Thermal protection	PT 1000

Family Overview	SKA RT 335.120 65
Stall Torque	100 – 320 Nm
Peak Torque	290 – 1200 Nm
Rated Speed	150 rpm
Rated Voltage	400 Vac
External Diameter (D)	390 mm
Hole Diameter (d)	190 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 335

Datenblatt

Dimensions (pdf, 554.83K)

Torque-Speed-Chart (pdf, 530.03K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 335.150 54
Stall torque	320 Nm
Peak torque	1200 Nm
Rated torque	232 Nm
Rated voltage	400 Vac
Stall current	6.14 Arms
Peak current	25.56 Arms
Rated current	4.59 Arms
Rated speed	110 rpm
Maximum speed	127 rpm
Torque constant	52.11 Nm/Arms
Voltage constant	3150 Vrms/krpm
Phase/phase resistance	8.1 Ω
Phase/phase inductance	90.03 mH
Electrical time constant	11.1 msec
Thermal resistance	0.15 °C/W
Mechanical time constant	2.67 ms
Max. theoretical acceleration	2008 rad/s2
Rotor inertia	5975 kg·cm²
Motor height H	258 mm
Motor weight	157 Kg
Radial load	6900 N(@30rpm)
Axial load	6300 N(@60rpm)
Tilt moment	600 N(@15rpm)

Family Specification	SKA RT 335.150 54
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	42
Thermal protection	PT 1000

Family Overview	SKA RT 335.150 54
Stall Torque	100 – 320 Nm
Peak Torque	290 – 1200 Nm
Rated Speed	150 rpm
Rated Voltage	400 Vac
External Diameter (D)	390 mm
Hole Diameter (d)	190 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 335

Datenblatt

Dimensions (pdf, 554.83K)

Torque-Speed-Chart (pdf, 530.03K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 335.150 65
Stall torque	320 Nm
Peak torque	1200 Nm
Rated torque	232 Nm
Rated voltage	400 Vac
Stall current	16.82 Arms
Peak current	70 Arms
Rated current	12.56 Arms
Rated speed	150 rpm
Maximum speed	200 rpm
Torque constant	19.02 Nm/Arms
Voltage constant	1150 Vrms/krpm
Phase/phase resistance	1.08 Ω
Phase/phase inductance	12 mH
Electrical time constant	11.1 msec
Thermal resistance	0.15 °C/W
Mechanical time constant	2.67 ms
Max. theoretical acceleration	2008 rad/s2
Rotor inertia	5975 kg·cm²
Motor height H	258 mm
Motor weight	157 Kg
Radial load	6900 N(@30rpm)
Axial load	6300 N(@60rpm)
Tilt moment	600 N(@15rpm)

Family Specification	SKA RT 335.150 65
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	42
Thermal protection	PT 1000

Family Overview	SKA RT 335.150 65
Stall Torque	100 – 320 Nm
Peak Torque	290 – 1200 Nm
Rated Speed	150 rpm
Rated Voltage	400 Vac
External Diameter (D)	390 mm
Hole Diameter (d)	190 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 335

Datenblatt

Dimensions (pdf, 554.83K)

Torque-Speed-Chart (pdf, 530.03K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Brushless DC Motors

Brushed DC Motors

Stepper Motors

Linear Actuators

Controller

Industrieautomation / Maschinenbau

Sicherheitstechnik / Schließtechnik

Smart Home und Gebäudetechnik

Medizintechnik

Akkutools

Automotive

SKA RT 335

Beschreibung

Ähnliche Produkte

SKA RT 335.150 65

SKA RT 430.30 56

SKA RT 335.90 65

SKA RT 430.90 56

Optionen

Feedback

Mechanical Arrangement

SKA RT 335

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

SKA RT 335

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

SKA RT 335

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

SKA RT 335

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

SKA RT 335

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

SKA RT 335

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

SKA RT 335

Datenblatt

Nehmen Sie Kontakt auf

Optionen

Feedback

Mechanical Arrangement

SKA RT 335

Datenblatt

Nehmen Sie Kontakt auf
