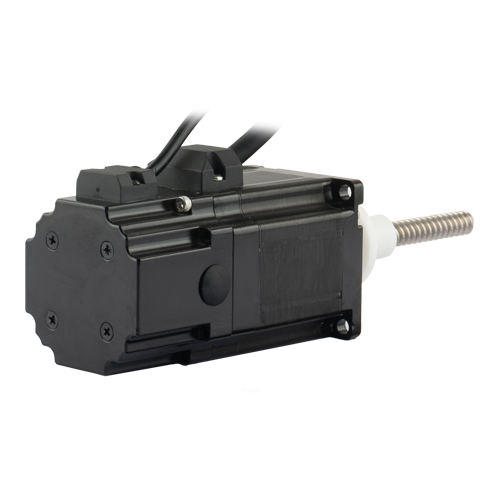

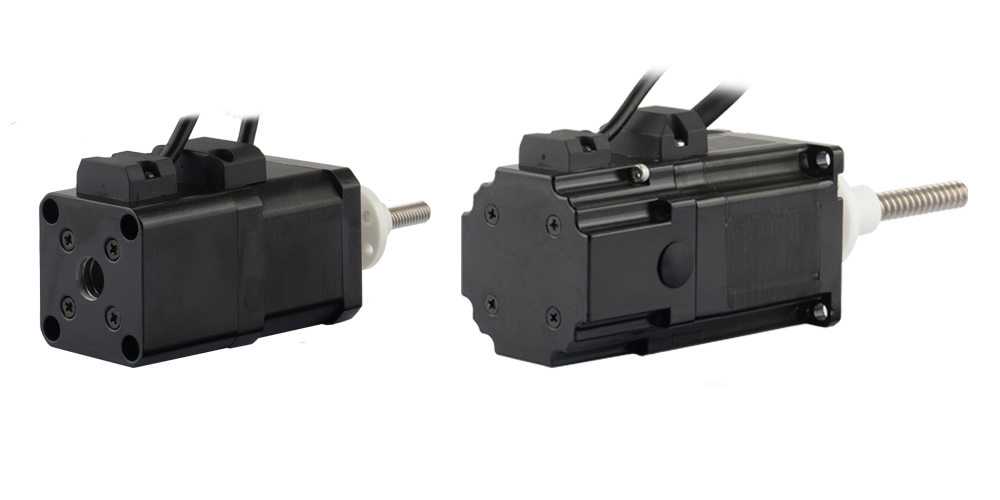

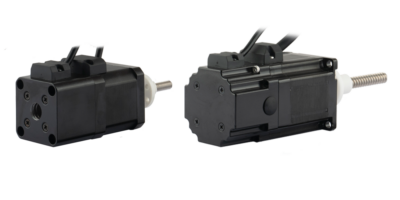

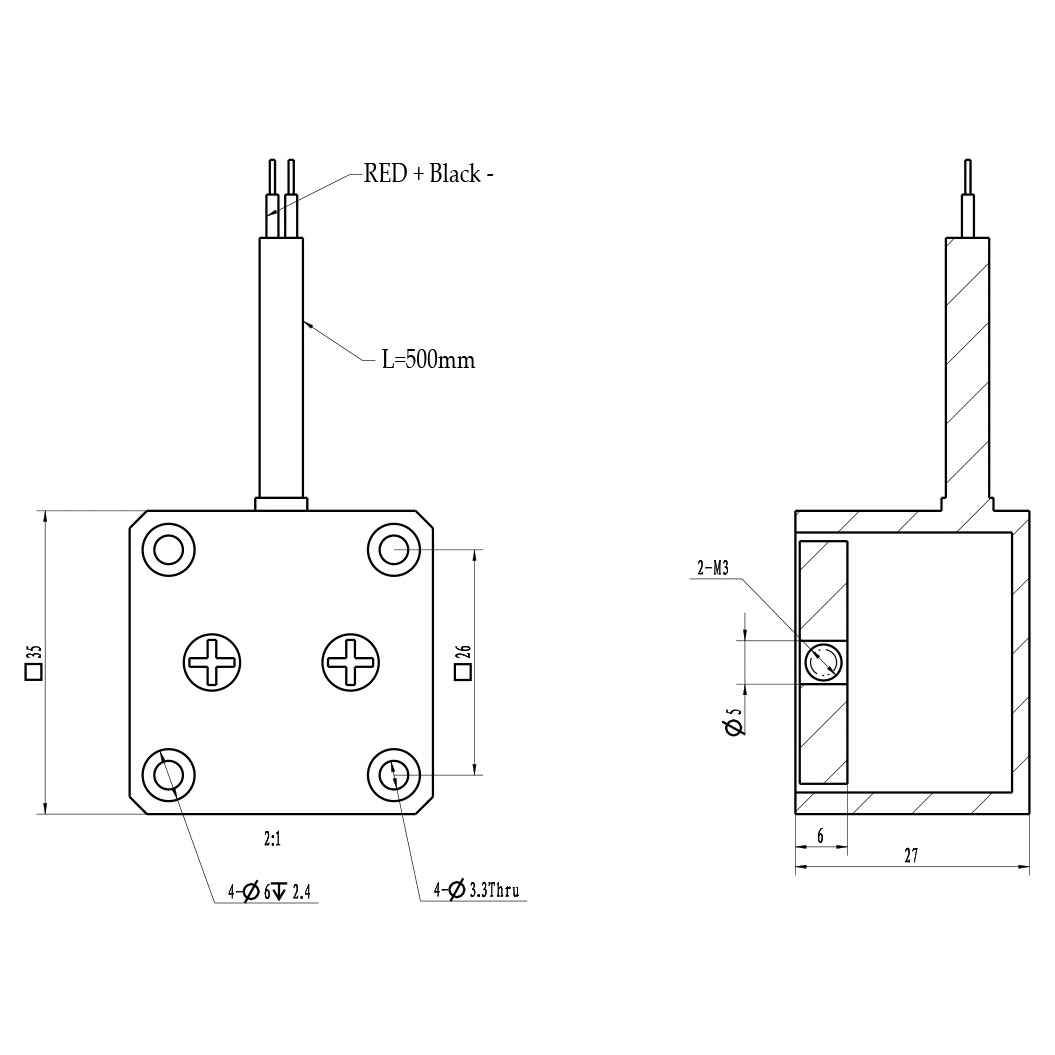

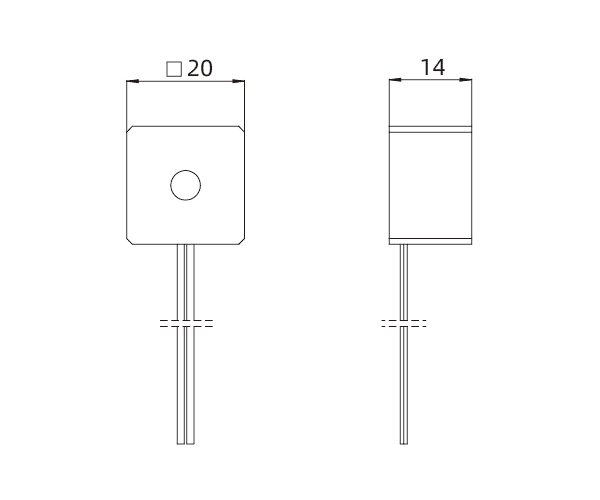

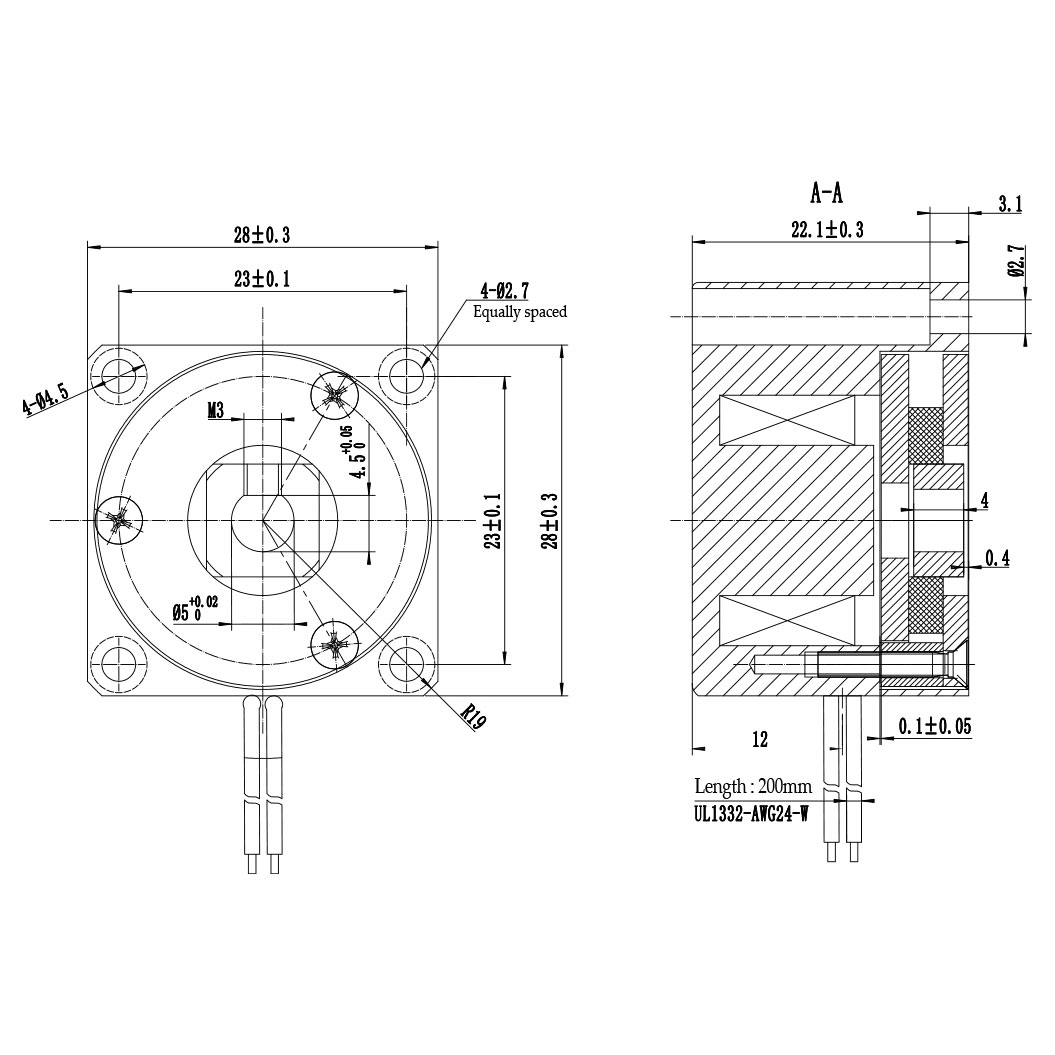

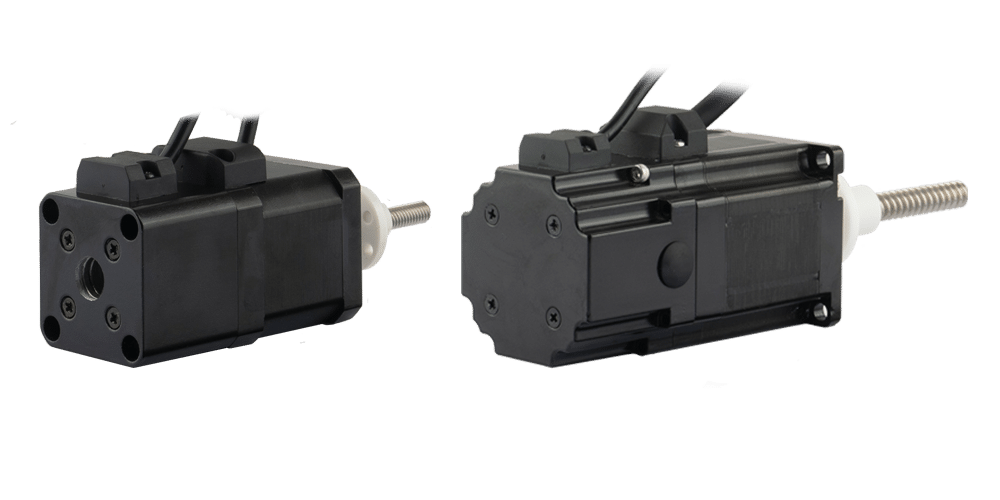

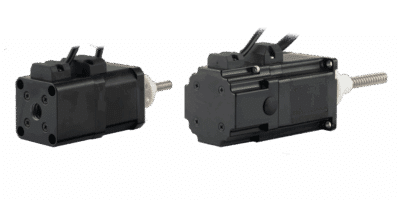

Especially Vertical applications or holding motors from sudden power-off status, DINGS‘ standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.
All series of brakes are DC24V based magnetic brakes and Max. 2Millions of cycles guaranteed under very low noise as 60db.
Especially Vertical applications or holding motors from sudden power-off status, DINGS‘ standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.
All series of brakes are DC24V based magnetic brakes and Max. 2Millions of cycles guaranteed under very low noise as 60db.
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.

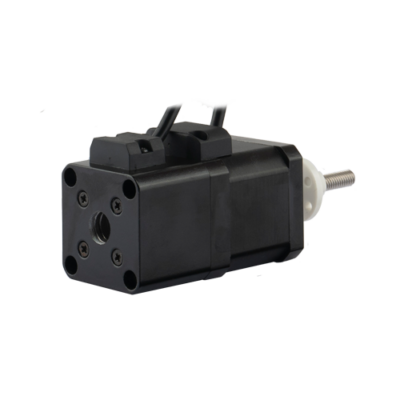

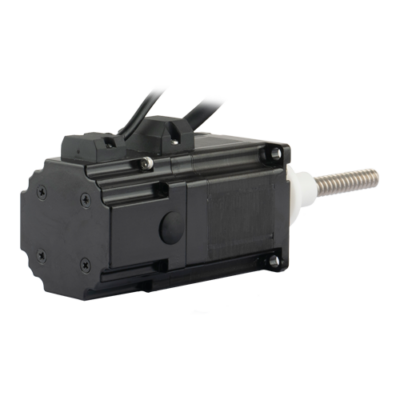

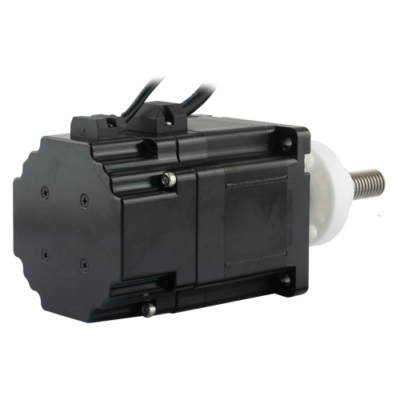

Weiterlesen| Parameter | 0.5N·m for Size 17 Motor | 2.3N·m for Size 23 Motor | 2.3N·m for Size 24 Motor | 5.0N·m for Size 34 Motor |
|---|---|---|---|---|
| Rated Voltage | DC24V +/- 5% | DC24V +/- 5% | DC24V +/- 5% | DC24V +/- 5% |
| Resistance | 297 +/- 5% | 140 +/- 5% | 140 +/- 5% | 80 +/- 5% |
| Power consumption | 2 W | 4.5 W | 4.5 W | 6 W |
| Hold Torque | > 0.5 | > 2.3 | > 2.3 | > 5 |
| Insulation Class | B | B | B | B |
| Insulation Resistance | >100Mohm (DC500V) | >100Mohm (DC500V) | >100Mohm (DC500V) | >100Mohm (DC500V) |
| Dielectrical Strength | 1000 VAC for 1 second | 1000 VAC for 1 second | 1000 VAC for 1 second | 1000 VAC for 1 second |
| Retraction time | 50 ms | 50 ms | 50 ms | 50 ms |
| Release time | 30 ms | 30 ms | 30 ms | 30 ms |
| Gyration gap | <1° | <1° | <1° | <1° |
| Emergency brake time | > 200 times | > 200 times | > 200 times | > 200 times |
| Lifetime | > 2,000,000 times | > 2,000,000 times | > 2,000,000 times | > 2,000,000 times |
| Noise Level | <60db | <60db | <60db | <60db |
| Specification | 0.5N·m for Size 17 Motor |
|---|---|
| Rated Voltage | DC24V +/- 5% V |
| Resistance | 297 +/- 5% Ω |
| Power consumption | 2 W |
| Hold Torque | > 0.5 Nm |
| Insulation Class | B |
| Insulation Resistance | >100Mohm (DC500V) |
| Dielectrical Strength | 1000 VAC for 1 second |
| Retraction time | 50 ms |
| Release time | 30 ms |
| Gyration gap | <1° |
| Emergency brake time | > 200 times |
| Lifetime | > 2,000,000 times |
| Noise Level | <60db |
| Specification | 2.3N·m for Size 23 Motor |
|---|---|
| Rated Voltage | DC24V +/- 5% V |
| Resistance | 140 +/- 5% Ω |
| Power consumption | 4.5 W |
| Hold Torque | > 2.3 Nm |
| Insulation Class | B |
| Insulation Resistance | >100Mohm (DC500V) |
| Dielectrical Strength | 1000 VAC for 1 second |
| Retraction time | 50 ms |
| Release time | 30 ms |
| Gyration gap | <1° |
| Emergency brake time | > 200 times |
| Lifetime | > 2,000,000 times |
| Noise Level | <60db |
| Specification | 2.3N·m for Size 24 Motor |
|---|---|
| Rated Voltage | DC24V +/- 5% V |
| Resistance | 140 +/- 5% Ω |
| Power consumption | 4.5 W |
| Hold Torque | > 2.3 Nm |
| Insulation Class | B |
| Insulation Resistance | >100Mohm (DC500V) |
| Dielectrical Strength | 1000 VAC for 1 second |
| Retraction time | 50 ms |
| Release time | 30 ms |
| Gyration gap | <1° |
| Emergency brake time | > 200 times |
| Lifetime | > 2,000,000 times |
| Noise Level | <60db |
| Specification | 5.0N·m for Size 34 Motor |
|---|---|
| Rated Voltage | DC24V +/- 5% V |
| Resistance | 80 +/- 5% Ω |
| Power consumption | 6 W |
| Hold Torque | > 5 Nm |
| Insulation Class | B |
| Insulation Resistance | >100Mohm (DC500V) |
| Dielectrical Strength | 1000 VAC for 1 second |
| Retraction time | 50 ms |
| Release time | 30 ms |
| Gyration gap | <1° |
| Emergency brake time | > 200 times |
| Lifetime | > 2,000,000 times |
| Noise Level | <60db |
