MLM1 NEMA 23 External Linear Step/direction input IP20

Name: MLM1 NEMA 23 External Linear Step/direction input IP20 - KOCO MOTION
SKU: MLM1 NEMA 23 External Linear Step/direction input IP20

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

MLM1 NEMA 23 with

Pulse/Direction
Motion Control (RS485)
CANopen
Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)

Artikelnummer: MLM1 NEMA 23 External Linear Step/direction input IP20 Kategorie: Liberty/MDrives

Beschreibung

Beschreibung

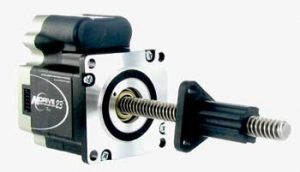

MDrive Plus NEMA size 23 (57 mm) integrated stepper motor linear actuator. This is a Step/direction input with SPI interface for parameterization.
Holding torque range oz-in (N-cm): 90 …283 (64 … 200)
I/O connector options: Flying Leads, Pluggable, Wire Crimp
Com connector: IDC, None

Specification	MLM1 NEMA 23 External Linear Step/direction input IP20
Control type	Step/direction input
Control method	–
P1 connector options	Flying Leads, Pluggable, Wire Crimp Power & I/O
P2 connector options	IDC, Wire Crimp Comm
Communications interface	SPI
NEMA size	23 (57×57 mm)
Holding torque range	0.64 … 2.00 Nm
Temperature heatsink (short-time)	max. 85 °C
IP rating	IP20
Input voltage	+12 to +75 +VDC
Power supply current requirement	2.0 A

Parameter settings	MLM1 NEMA 23 External Linear Step/direction input IP20
Input Step, Direction & Enable voltage	–
Current	–
Digital Filter Range	10 … 38.8 MHz … kHz
Step Frequency	5 MHz Max
Microstep Resolutions	200 … 51200 Steps/Rev
Clock Types	–

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
