Beschreibung

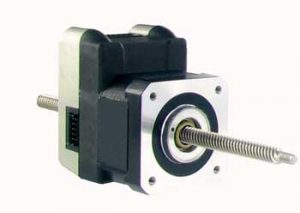

MLM1 NEMA 17 with
- Pulse/Direction
- Motion Control (RS485)
- CANopen
- Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. MwSt.
MLM1 NEMA 17 with
MLM1 NEMA 17 with
General Specifications | MLM1 NEMA 17 External Linear Step/direction input IP20 | MLM1 NEMA 17 Non-captive Linear Step/direction input IP20 |
---|---|---|
Control type | Step/direction input | Step/direction input |
Control method | – | – |
P1 connector options | Flying Leads, Pluggable, Wire Crimp | Flying Leads, Pluggable, Wire Crimp |
P2 connector options | IDC, Wire Crimp | IDC, None |
Communications interface | SPI | SPI |
NEMA size | 17 (42×42 mm) | 17 (42×42 mm) |
Holding torque range | 0.23 … 0.53 | 0.23 … 0.53 |
Temperature heatsink (short-time) | max. 85 | max. 85 |
IP rating | IP20 | IP20 |
Input voltage | +12 to +48 | +12 to +48 |
Power supply current requirement | 2.0 A | 2.0 A |
Parameter settings | MLM1 NEMA 17 External Linear Step/direction input IP20 | MLM1 NEMA 17 Non-captive Linear Step/direction input IP20 |
---|---|---|
Input Step, Direction & Enable voltage | – | – |
Current | – | – |
Digital Filter Range | 10 … 38.8 | 10 … 38.8 |
Step Frequency | 5 MHz Max | 5 MHz Max |
Microstep Resolutions | 200 … 51200 | 200 … 51200 |
Clock Types | – | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | MLM1 NEMA 17 External Linear Step/direction input IP20 |
---|---|
Control type | Step/direction input |
Control method | – |
P1 connector options | Flying Leads, Pluggable, Wire Crimp Power & I/O |
P2 connector options | IDC, Wire Crimp Comm |
Communications interface | SPI |
NEMA size | 17 (42×42 mm) |
Holding torque range | 0.23 … 0.53 Nm |
Temperature heatsink (short-time) | max. 85 °C |
IP rating | IP20 |
Input voltage | +12 to +48 +VDC |
Power supply current requirement | 2.0 A |
Parameter settings | MLM1 NEMA 17 External Linear Step/direction input IP20 |
---|---|
Input Step, Direction & Enable voltage | – |
Current | – |
Digital Filter Range | 10 … 38.8 MHz … kHz |
Step Frequency | 5 MHz Max |
Microstep Resolutions | 200 … 51200 Steps/Rev |
Clock Types | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | MLM1 NEMA 17 Non-captive Linear Step/direction input IP20 |
---|---|
Control type | Step/direction input |
Feature set | – |
P1 connector options | Flying Leads, Pluggable, Wire Crimp Power & I/O |
P2 connector options | IDC, None Comm |
Communications interface | SPI |
NEMA size | 17 (42×42 mm) |
Holding torque range | 0.23 … 0.53 Nm |
Temperature heatsink (short-time) | max. 85 °C |
IP rating | IP20 |
Input voltage | +12 to +48 +VDC |
Power supply current requirement | 2.0 A |
Parameter settings | MLM1 NEMA 17 Non-captive Linear Step/direction input IP20 |
---|---|
Input Step, Direction & Enable voltage | – |
Current | – |
Digital Filter Range | 10 … 38.8 MHz … kHz |
Step Frequency | 5 MHz Max |
Microstep Resolutions | 200 … 51200 Steps/Rev |
Clock Types | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
