MLM1 NEMA 14

Name: MLM1 NEMA 14 - KOCO MOTION
SKU: MLM1 NEMA 14

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

MLM1 NEMA 14 with

Pulse/Direction
Motion Control (RS485)
CANopen
Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)

Artikelnummer: MLM1 NEMA 14 Kategorie: Liberty/MDrives

Beschreibung

Beschreibung

MLM1 NEMA 14 with

Pulse/Direction
Motion Control (RS485)
CANopen
Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)

Produktvergleich

General Specifications	MLM1 NEMA 14 External Linear Step/direction input IP20	MLM1 NEMA 14 Non-captive Linear Step/direction input IP20
Control type	Step/direction input	Step/direction input
Feature set	–	–
P1 connector options	Wire Crimp	Wire Crimp
P2 connector options	IDC, Wire Crimp	IDC, Wire Crimp
Communications interface	SPI	SPI
NEMA size	14 (36×36 mm)	14 (36×36 mm)
Holding torque range	0.13 … 0.25	0.13 … 0.25
Temperature heatsink (short-time)	max. 85	max. 85
IP rating	IP20	IP20
Input voltage	+12 to +48	+12 to +48
Power supply current requirement	1.0 A	1.0 A

Parameter settings	MLM1 NEMA 14 External Linear Step/direction input IP20	MLM1 NEMA 14 Non-captive Linear Step/direction input IP20
Input Step, Direction & Enable voltage	–	–
Current	–	–
Digital Filter Range	10 … 38.8	10 … 38.8
Step Frequency	5 MHz Max	5 MHz Max
Microstep Resolutions	200 … 51200	200 … 51200
Clock Types	–	–

MLM1 NEMA 14 External Linear Step/direction input IP20

Datenblatt

MLM-NEMA-14-Step-Direction-Product-Overview-PDF (pdf, 351.88K)

Software

SPI-Interface (zip, 1.31M)

MLM1 NEMA 14 Non-captive Linear Step/direction input IP20

Datenblatt

MLM-NEMA-14-Step-Direction-Product-Overview-PDF (pdf, 351.88K)

Software

SPI-Interface (zip, 1.31M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

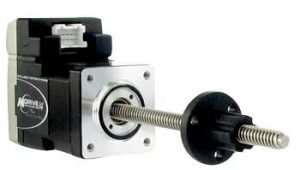

Specification	MLM1 NEMA 14 External Linear Step/direction input IP20
Control type	Step/direction input
Feature set	–
P1 connector options	Wire Crimp Power & I/O
P2 connector options	IDC, Wire Crimp Comm
Communications interface	SPI
NEMA size	14 (36×36 mm)
Holding torque range	0.13 … 0.25 Nm
Temperature heatsink (short-time)	max. 85 °C
IP rating	IP20
Input voltage	+12 to +48 +VDC
Power supply current requirement	1.0 A

Parameter settings	MLM1 NEMA 14 External Linear Step/direction input IP20
Input Step, Direction & Enable voltage	–
Current	–
Digital Filter Range	10 … 38.8 MHz … kHz
Step Frequency	5 MHz Max
Microstep Resolutions	200 … 51200 Steps/Rev
Clock Types	–

MLM1 NEMA 14 External Linear Step/direction input IP20

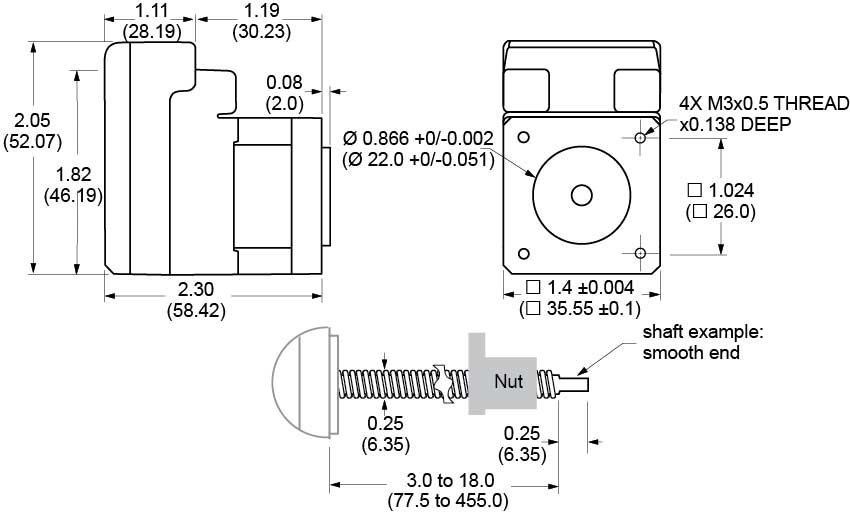

MLM1 NEMA 14 External Linear Step/direction input IP20

ML-NEMA-14-with-Standard-Connectors-ZIP-Archive (zip, 977.25K)

MLM1 NEMA 14 External Linear Step/direction input IP20

Datenblatt

MLM-NEMA-14-Step-Direction-Product-Overview-PDF (pdf, 351.88K)

Software

SPI-Interface (zip, 1.31M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

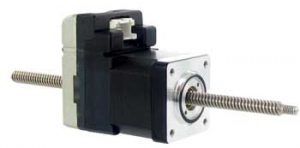

Specification	MLM1 NEMA 14 Non-captive Linear Step/direction input IP20
Control type	Step/direction input
Control Method	–
P1 connector options	Wire Crimp Power & I/O
P2 connector options	IDC, Wire Crimp Comm
Communications interface	SPI
NEMA size	14 (36×36 mm)
Holding torque range	0.13 … 0.25 Nm
Temperature heatsink (short-time)	max. 85 °C
IP rating	IP20
Input voltage	+12 to +48 +VDC
Power supply current requirement	1.0 A

Parameter settings	MLM1 NEMA 14 Non-captive Linear Step/direction input IP20
Input Step, Direction & Enable voltage	–
Current	–
Digital Filter Range	10 … 38.8 MHz … kHz
Step Frequency	5 MHz Max
Microstep Resolutions	200 … 51200 Steps/Rev
Clock Types	–

MLM1 NEMA 14 Non-captive Linear Step/direction input IP20

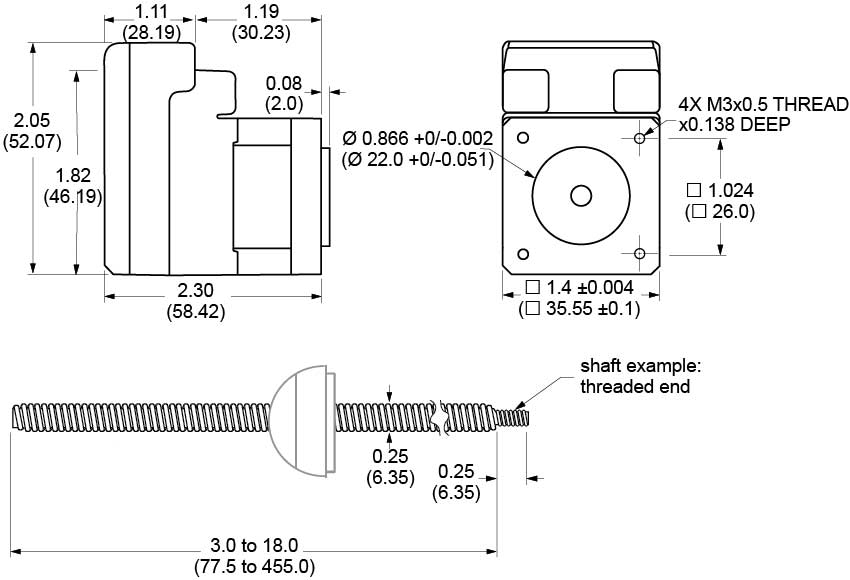

MLM1 NEMA 14 Non-captive Linear Step/direction input IP20

ML-NEMA-14-with-Standard-Connectors-ZIP-Archive (zip, 977.25K)

MLM1 NEMA 14 Non-captive Linear Step/direction input IP20

Datenblatt

MLM-NEMA-14-Step-Direction-Product-Overview-PDF (pdf, 351.88K)

Software

SPI-Interface (zip, 1.31M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Weiterlesen	MLM1 NEMA 14 External Linear Step/direction input IP20	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	MLM1 NEMA 14 Non-captive Linear Step/direction input IP20	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
