4mm Miniature Coreless DC Motor Family

L0408N3M

The L0408N3M series features 4mm mini coreless DC motors with precious metal brushes, designed for precision, high-speed performance in miniature devices. Delivering up to 78,500 rpm and weighing just 0.5g, these motors are ideal for mini UAVs, RC hobby products, and small appliances. Customizable options include shaft length, special coils, and gearheads for tailored application needs.

Weiterlesen
Weiterlesen
Weiterlesen
Artikelnummer: L0408N3M Kategorie:

Beschreibung

L0408N3M 4mm Mini Coreless Motor Series delivers advanced motion solutions in an ultra-compact form factor, engineered for demanding applications requiring lightweight precision and efficiency.

  • Core Features:

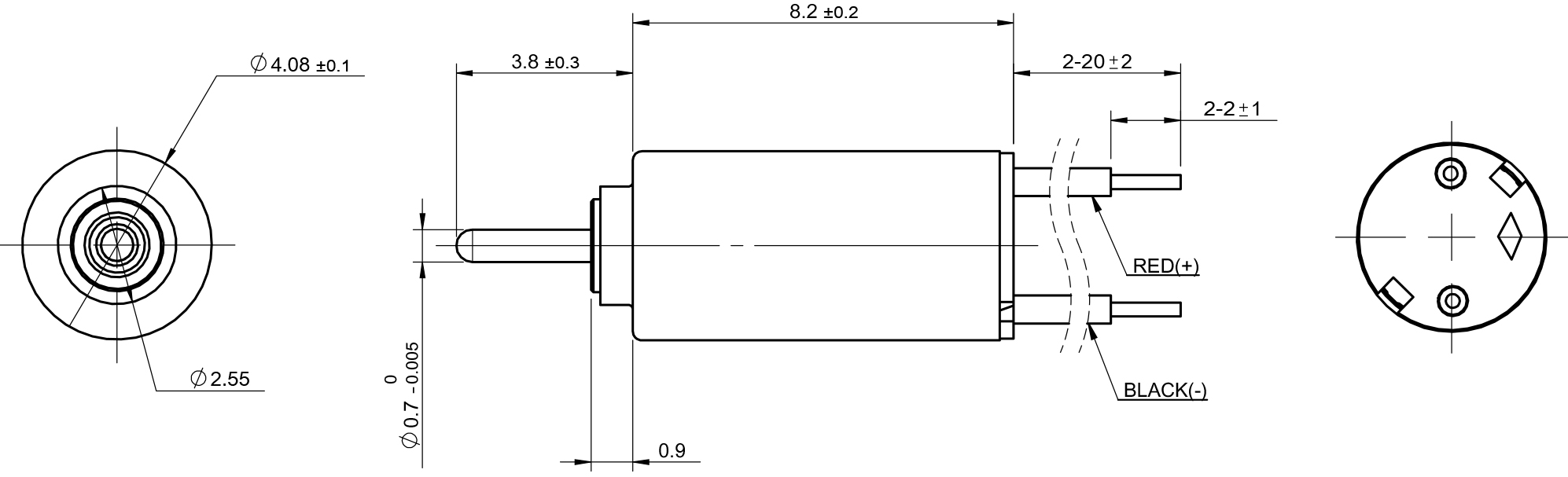

    • 4mm diameter, ultra-lightweight (0.5 g)
    • Coreless rotor with precious metal brushes for reduced friction, low electrical noise, and longer brush life
    • High-speed operation up to 78,500 rpm (model dependent)
    • Wide voltage range (3.4–5.0 V) with low current consumption for battery-driven designs

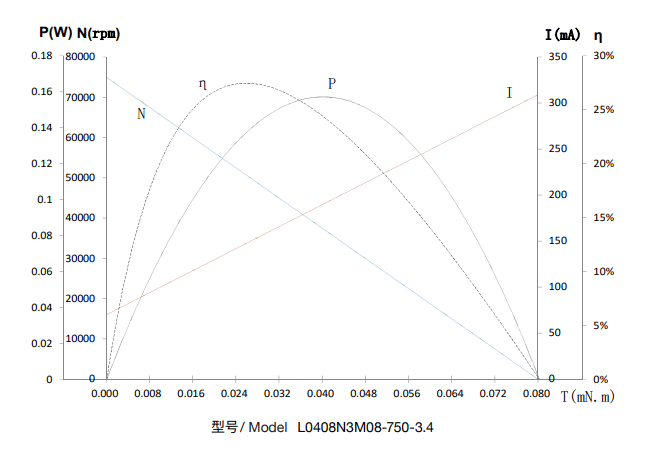

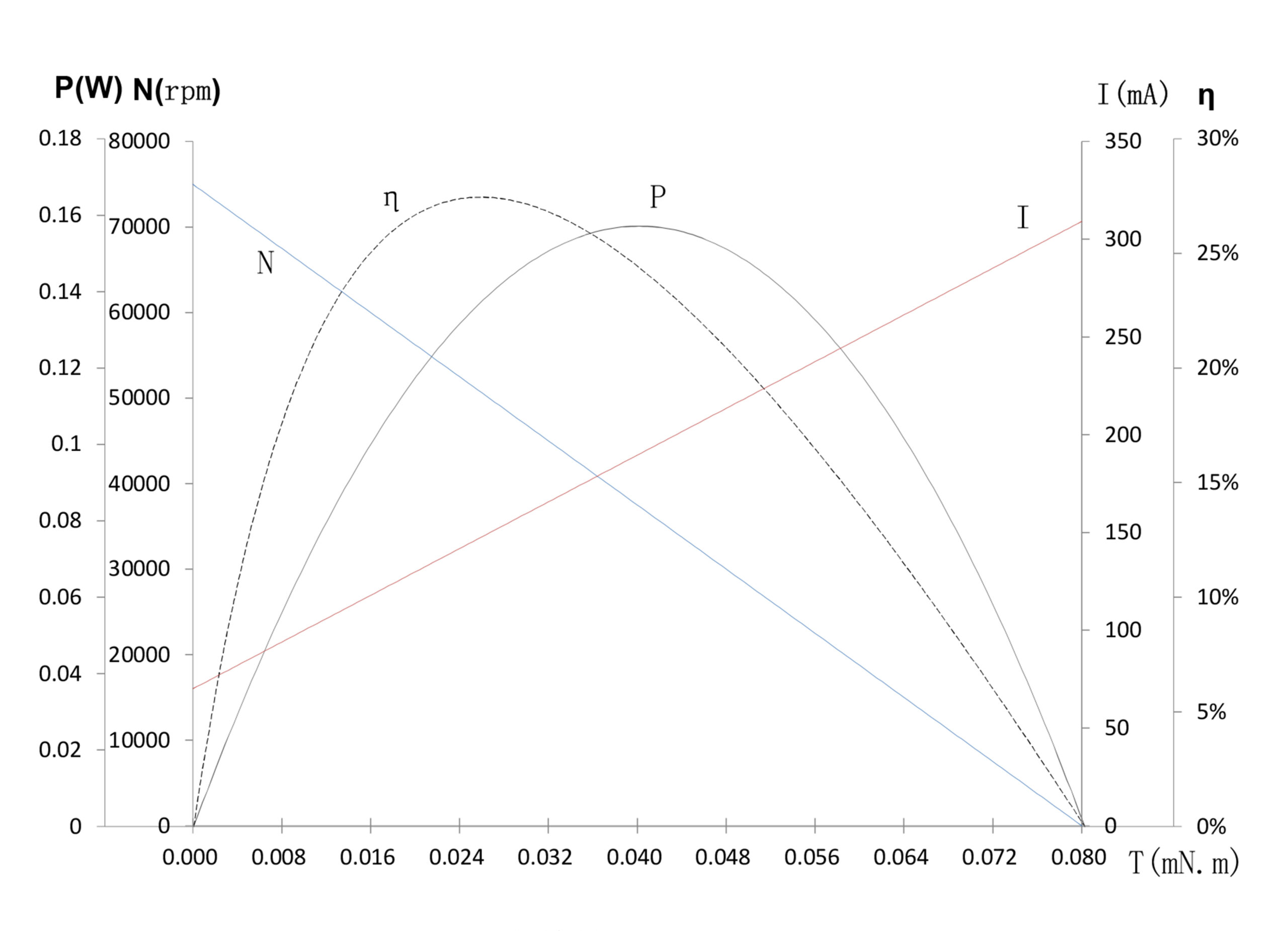

  • Technical Specifications (Typical Values):
    • No-load speed: 58,000–78,500 rpm
    • Stall torque: up to 0.08 mNm
    • Max. efficiency: up to 27.5%
    • Operating temperature: -20°C ~ +65°C
  • Key Applications:
    • Mini UAVs and drones
    • Remote control hobby products (micro cars, helicopters, and planes)
    • Small household appliances and portable devices
  • Options & Customization:
    • Optional shaft lengths
    • Special coil windings for optimized torque/speed profiles
    • Gearhead integration for application-specific reduction ratios

With exceptional speed-to-size ratio, reliability, and adaptable configurations, the L0408N3M family is ideal for precision drives where space and weight are at a premium and performance cannot be compromised.
