Integrated Servo Motors

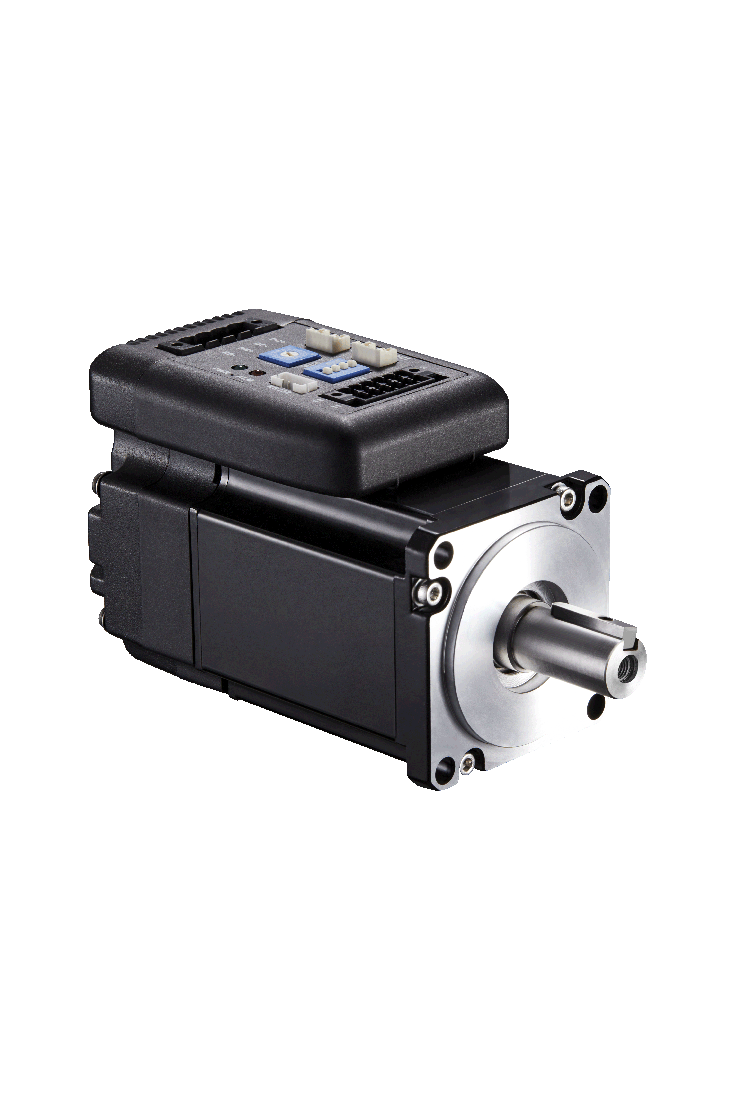

iSV2-CAN series includes 60mm & 80mm frame size servo motors which are integrated with 17-bit encoders and servo drives. Its power ranges from 200 to 750W with peak torque to 7.2 Nm. At very compact size an iSV2 integrated servo motor can save mounting space, eliminate encoder & power cable connections, reduce interference, and reduce system cost.
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen
inkl. MwSt.
Produkte anzeigen
inkl. 19 % MwSt.
Weiterlesen| Specification | iSV2-CAN6040V48H |
|---|---|
| Frame size | 60 mm |
| Rated power | 400 W |
| Rated voltage | 48 V |
| Rated torque | 1.27 Nm |
| Rated current (RMS) | 10 A |
| Rated speed | 3000 RPM |
| Encoder resolution | 17 bit |
| Communication | CANopen |
| Brake | No |
