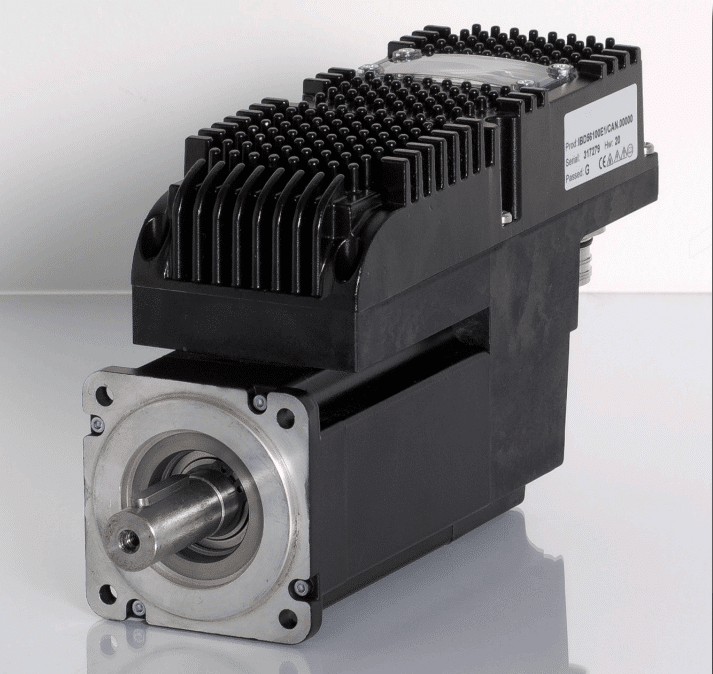

DUET HV 142

Name: DUET HV 142 - KOCO MOTION
SKU: DUET HV 142

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

Flange dimensions: 142 mm
Rated Output Power: 3500 W
Rated Torque: 11,1 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat

Artikelnummer: DUET HV 142 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 142 mm
Rated Output Power: 3500 W
Rated Torque: 11,1 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat

Specification	DUET HV 142 16,5 17
Rated Voltage	560 Vdc
Auxiliary Voltage (+6% -10%)	24 Vdc
Minimum Voltage	275 Vdc
Maximum Voltage	740 Vdc
Stall Torque	14 Nm
Peak Torque	42 Nm
Rated Torque	11.1 Nm
Rated Output Power	3500 W
Stall Current	8.7 Arms
Peak Current	26.6 Arms
Rated Current	7.3 Arms
Rated Speed @560Vdc	3000 rpm
Maximum Speed @560Vdc	3500 rpm
Torque Constant (± 5%)	1.6 Nm/Arms
Voltage Constant (± 5%)	97 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	1.3 Ω
Phase/phase inductance (± 10%)	1.3 mH
Electrical time constant	5.2 ms
Thermal Resistance	0.45 °C/W
Mechanical time constant	2.1 ms
Rotor Inertia without brake and without feedback	27 kg·cm²
Duet weight	19.5 Kg
Duet weight with brake	21.3 Kg
Axial Load applied on the shaft’s center	240 N
Radial Load applied on the shaft’s center	800 N

Family Specification	DUET HV 142
Time Rating	Coninuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL /CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	CE
Recommendation	Rated output with 350 x 350 x 20 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview	DUET HV 142
Flange dimensions	142 mm
Rated Output Power	3500 Watt
Rated Torque	11.1 Nm
Rated Speed	3000 rpm
Fieldbus	CanOpen

Optionen

Feedback

A1 = Absolute MultiturnEncoder 12+12 Bits 128 Sin/Cos revolution A3 = Absolute MultiturnEncoder 9+12 Bits 16 Sin/Cos revolution A5 = Absolute SingleturnEncoder 9 Bits 16 Sin/Cos revolution

Brake

0 = without brake 1 = with brake

Fieldbus

Ethercat

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DUET HV 142

Datenblatt

Dimensions (pdf, 845.78K)

Torque-Speed-Chart (pdf, 530.48K)

DUET-Connectors (pdf, 715.57K)

DUET-Brake-Features (pdf, 202.73K)

DUET-Feedback-Features (pdf, 273.64K)

DUET-Wiring-Cables (pdf, 1.26M)
