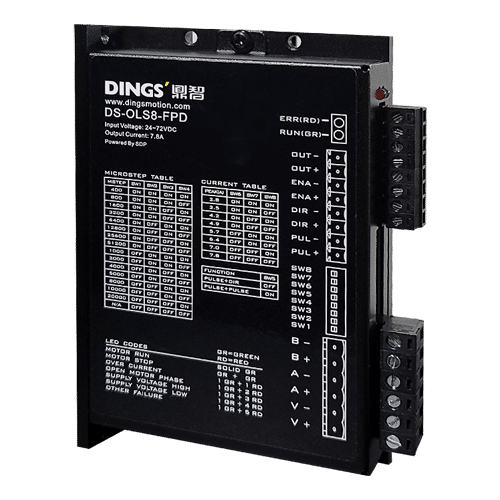

DS-OLS8-FPD Stand Alone Open Loop – Pulse Type – Apply to Size 23, 24,34 of Step Motors
| Parameter | Unit | DS-OLS8-FPD |
|---|---|---|
| Applied Motor | DS-OLS8-FPD can operate Max. 7.8A of motor | |
| Humidity | < 85 % RH, No condensation | |
| Temperature | °C | 0 – +40 |
| Cooling | Installed in a ventilated environment | |
| Power Supply | V | 24 – 72V DC |
| Output Current | A | 2.8A-7.8A/Phase（Peak Value） |
| Drive Method | Bi-Polar PWM drive | |
| Input Signal (Pulse Signal,Offline Signal,Direction Signal) | Optocoupler input voltage H = 3.5 – 26V , L = 0 – 0.8V,Conduction current 6-15mA | |
| Output Signal Alarm output | Photoelectric isolation output, maximum withstand voltage 30VDC, maximum saturation current 50mA | |
| Size | mm | 118 × 78 × 34 |
| Weight | g | About 300 |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gas |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.
