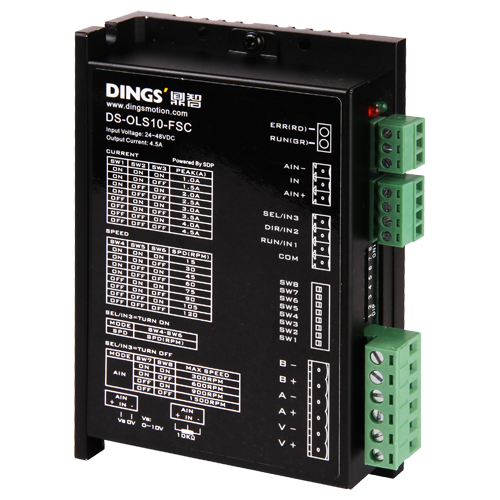

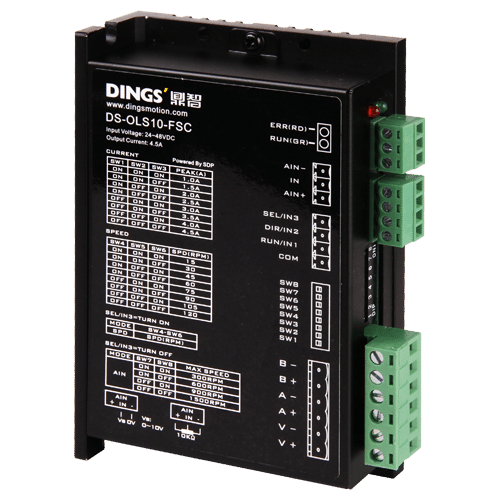

DS-OLS10-FSC Stand Alone Open Loop
-Speed Regulation
Apply to Size 11, 14, 17, 23 of Step Motors
| Parameter | Unit | DS-OLS10-FSC |
|---|---|---|
| Applied Motor | Adapted to two-phase hybrid stepping motor,DS-OLS10-FSC Maximum fit 4.5A | |
| Humidity | < 85 % RH, No condensation | |
| Temperature | °C | 0 – +40 |
| Cooling | Installed in a ventilated environment | |
| Power Supply | V | 24 – 48V DC |
| Output Current | A | 1.0A-4.5A/Phase (Peak Value) |
| Drive Method | Full-Bridge Bi-polar PWM driver | |
| Size | mm | 118 × 78 × 34mm |
| Weight | g | About 300g |
| Operation Environment Precaution | Avoid dust, oil mist and corrosive gases |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

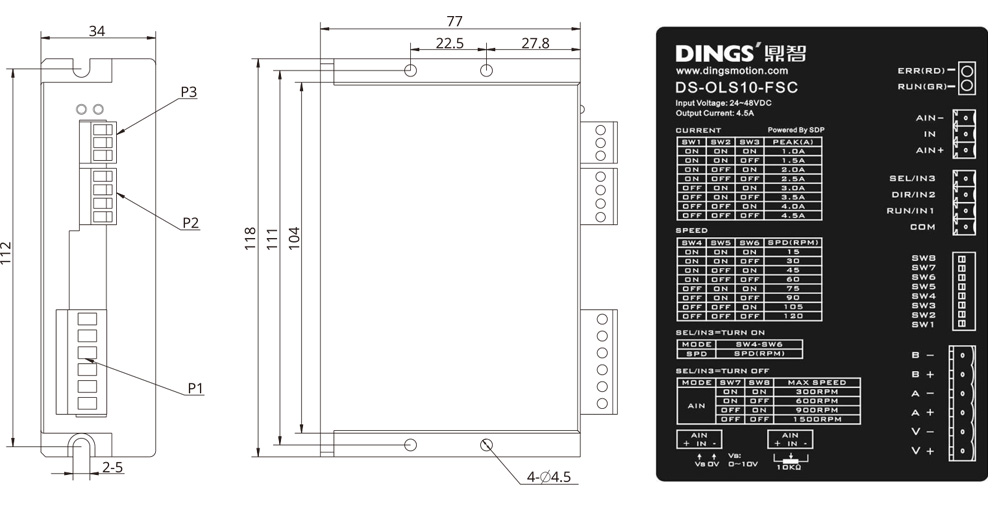

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range
