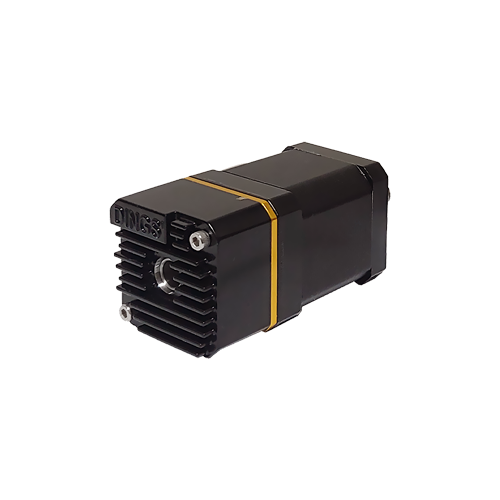

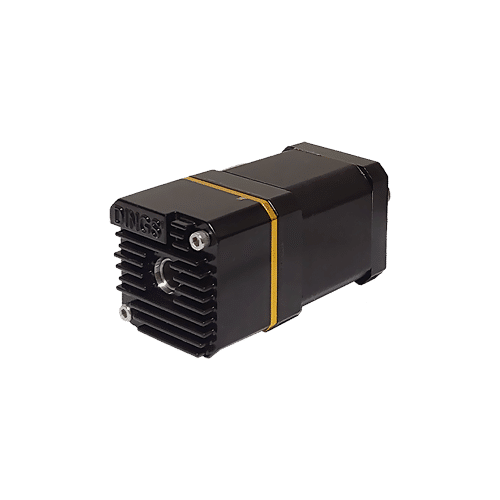

Integrated Open Loop – RS485
| Parameter | Unit | DS-OL42-IPD/IRS4 |
|---|---|---|
| Adapted Motor | Suitable for two-phase hybrid stepping motor, the maximum adaptation is 3.0 A | |
| Power Supply | V | DC 24~36 |
| Output Current | A | 0.5 – 3.0 |
| Drive Method | Full-bridge bipolar PWM | |
| Initialization Time | 2s | |
| Input Signal | Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA | |
| Input Signal | Optocoupler input voltage H = 5 V , L = 0 – 0.8 V , Current 5 – 8 mA | |
| Output Signals | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 10mA | |

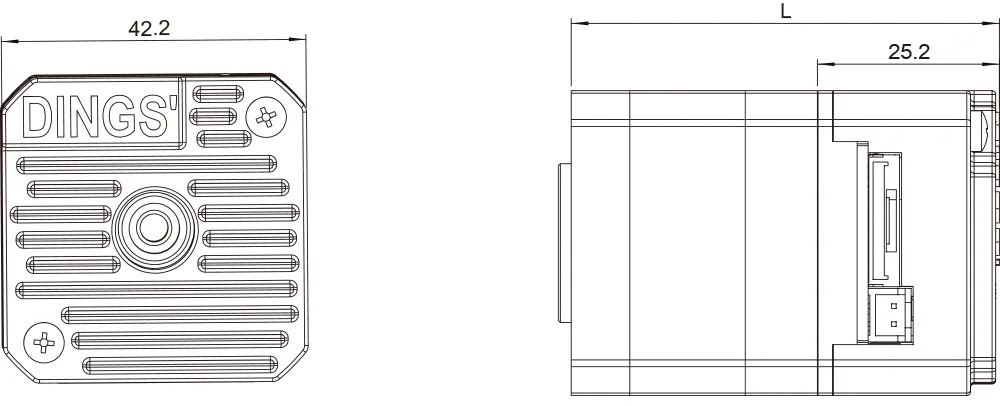

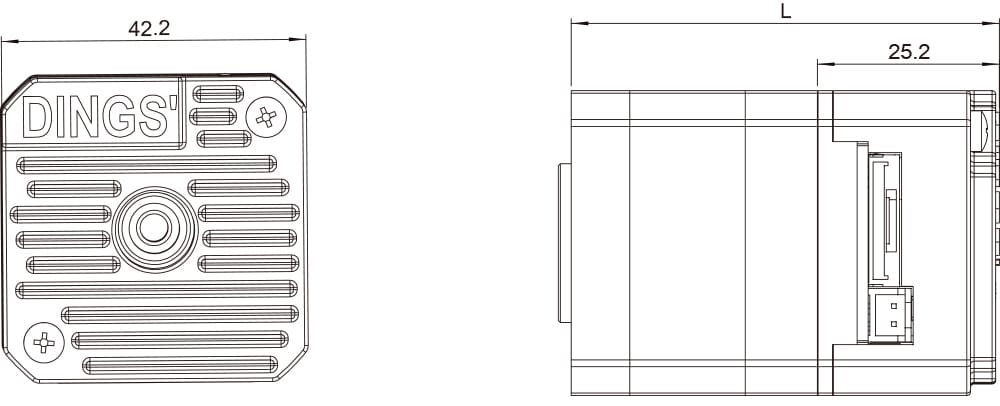

| Size | mm | 42.2 x 42.2 x 25.2 |
| Weight | g | About 60 |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas | |
| Humidity | <85% RH, no condensation | |
| Temperature | °C | 0 ~ 40 |
| Heat Dissipation | Install in a ventilated environment |
