Installation (unit : mm)
1. When designs installation, please consider the size of
terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually
within 60°C and motor is within 80°C.
3. When install driver, please install it vertically and laterally
to make the radiator from strong air convection, when
necessary, install a fan near the driver to force heat
dissipation to ensure that the driver works within reliable
working temperature range.

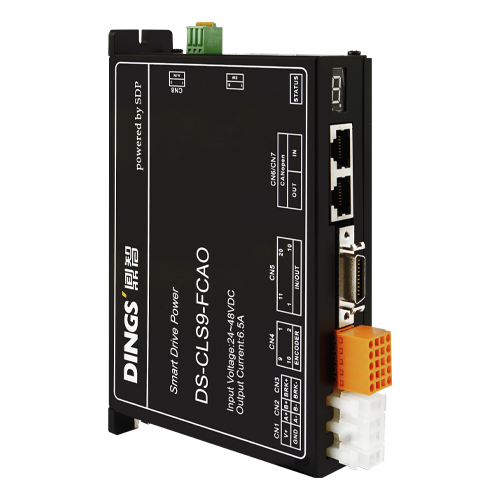

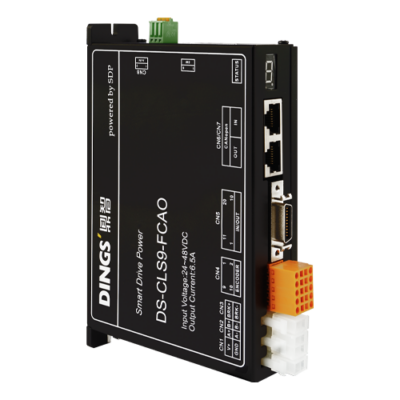

1. Input power : DC 24V – 48V
2. Output rated current : 6.5A (max)
3. PWM constant current bipolar micro-stepping drive
4. Support CANopen communication protocol, support control mode PP, PV, HM, PT
5. Optically isolated inputs
6. Motor short circuit protection, under-voltage protection, over-voltage protection,
over-current protection, etc.
7. Exquisite design, low noise and low vibration
DS-OLS22-FPD-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.
DS-CLS9-FCAO-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.
