Description

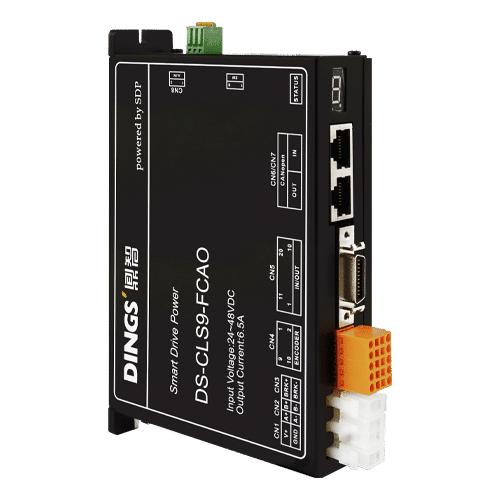

Stand Alone Closed Loop Control – CANopen Type – Apply to Size 6, 8, 11, 23, 24, 34 of Step Motors
DS-CLS9-FCAO
incl. 19% VAT
https://www.dingsmotion.com/downloads/downloads.php?idx=98
| Specification | DS-CLS9-FCAO |
|---|---|
| Adapted Motor | 2-phase hybrid stepping motor |
| Power Supply | DC 24 – 48 V V |
| Output Current | 0.1 – 6.5 A A |
| Driving Method | Full-bridge Bipolar PWM |
| Initialization Time | 2s |
| Input Signal | Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA |
| Input Signal | Optocoupler input voltage H = 24 V , L = 0 – 0.8 V , Current 5 – 8 mA |
| Output Signals | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 50mA |

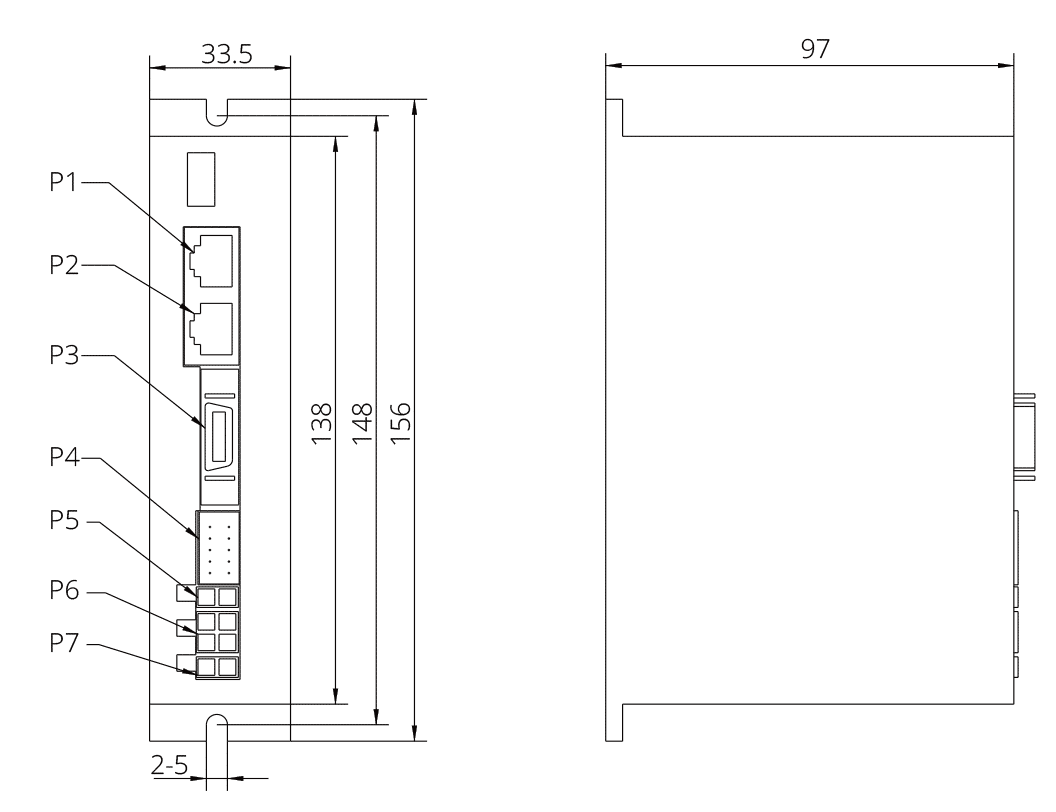

| Size | 156 × 97 × 33.5 mm mm |
| Weight | About 500g g |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas |
| Humidity | <85% RH, no condensation |
| Temperature | 0 ~ 40 °C |
| Heat Dissipation | Install in a ventilated environment |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
