Beschreibung

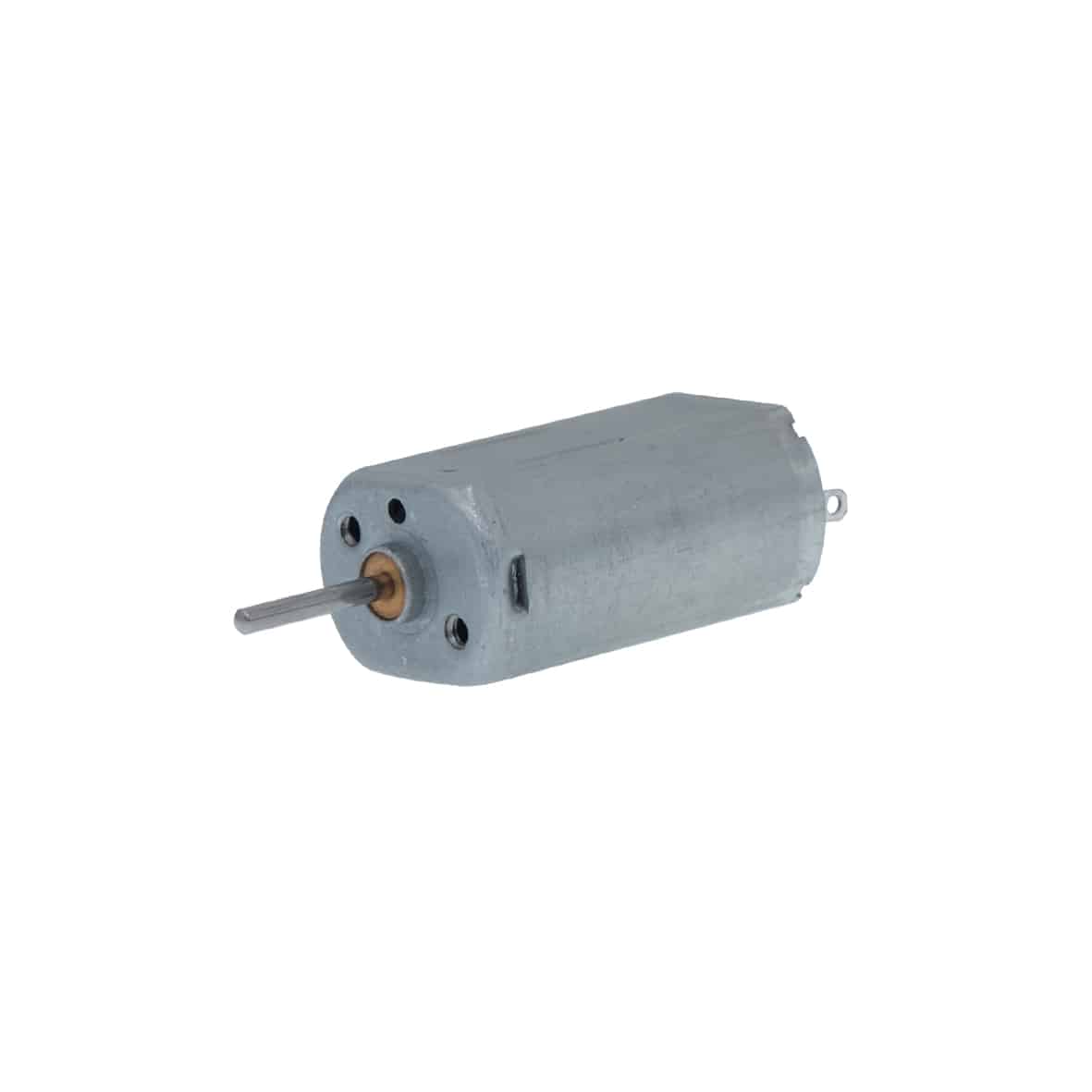

C1627F Series 16mm DC Core Motors deliver reliable performance and precision in a compact package, engineered with precious metal commutation for low contact resistance and extended lifespan. These motors are available in multiple variants to meet diverse voltage and load demands.
- Key Technical Specifications:
- Voltage options: 6.0V or 12.0V
- Compact 16mm diameter, weight: 16.7g
- No-load speeds: Up to 20,200 rpm (model dependent)
- Stall torque: Up to 5.4 mNm
- High efficiency (up to 61.5%) and robust speed/torque gradients
- Operating temperature: -20°C to +80°C
- Integrated varistor for electrical protection
- Main Applications: Suitable for use in security equipment, remote control model aircraft, personal care devices, small electronics, and portable electric tools where compact size and reliable motion control are essential.
- Customizable Options: Lead wire length, shaft length, special coils, and gearheads are available to optimize the motor for specific application requirements.
- Competitive Advantages: The C1627F series stands out for its compact footprint, high-speed capability, and adaptability, making it a preferred solution for design engineers requiring reliable performance and precise motion in space-constrained environments.

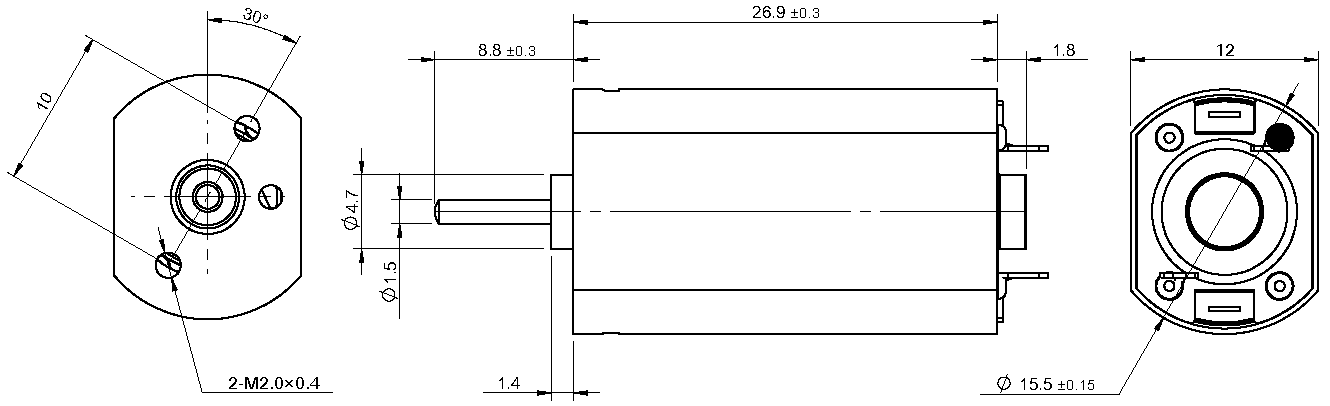

2D drawing C1627F

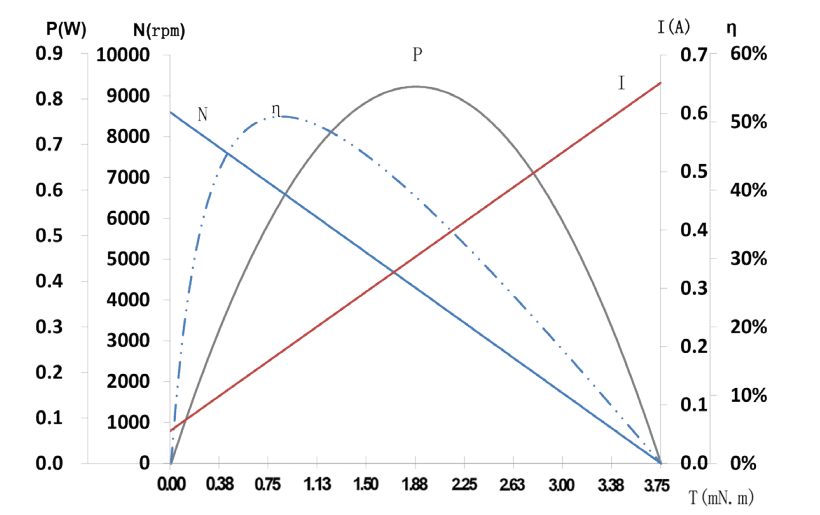

Characteristics Curve / Model C1627F34AH-0055
