Weiterlesen| Characteristics | C1627F34AH-0055 | C1627F34AH-0063 | C1627F34AH-0064 |
|---|---|---|---|
| Voltage | 6.0 V | 12.0 V | 6.0 V |
| Terminal resistance | 8.8 Ω | 49 Ω | 2.4 Ω |
| No-load speed | 8600 rpm | 8000 rpm | 20200 rpm |
| No-load current | 55 mA | 20 mA | 100 mA |
| Stall torque | 3.75 mNm | 3.43 mNm | 5.40 mNm |
| Stall current | 652 mA | 233 mA | 2304 mA |
| Load torque | 0.79 mNm | 0.59 mNm | 0.39 mNm |
| Load speed | 6800 rpm | 6500 rpm | 19100 rpm |
| Load current | 180 mA | 60 mA | 220 mA |
| Max. output power | 0.85 W | 0.72 W | 2.86 W |
| Max. efficiency | 51.9 % | 61.5 % | 56.7 % |
| Back-EMF constant | 0.64 mV/rpm | 1.38 mV/rpm | 0.29 mV/rpm |
| Torque constant | 6.28 mNm/A | 16.08 mNm/A | 2.45 mNm/A |
| Speed/torque gradient | 2293 rpm/mNm | 2332 rpm/mNm | 3741 rpm/mNm |
| Varistor | Yes | Yes | Yes |
| Weight | 16.7 g | 16.7 g | 16.7 g |
| Operating temperature range | -20~+80 | -20~+80 | -20~+80 |

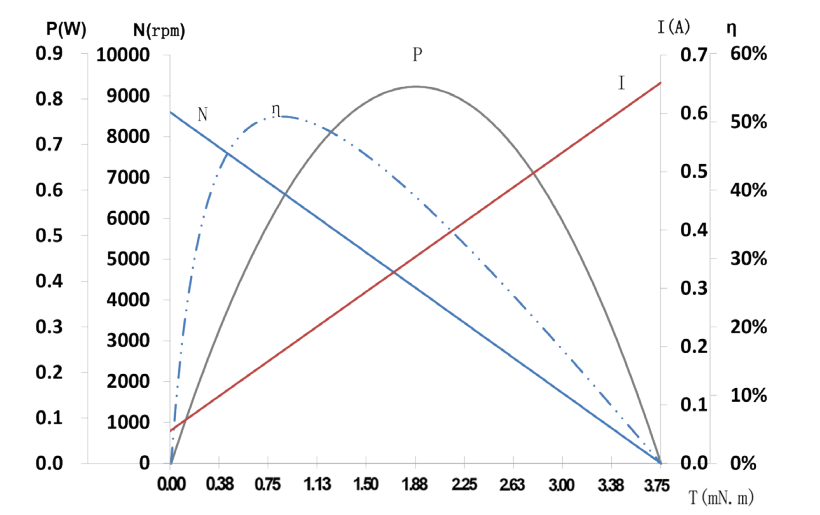

| Specification | C1627F34AH-0055 |
|---|---|
| Voltage | 6.0 V |
| Terminal resistance | 8.8 Ω |
| No-load speed | 8600 rpm |
| No-load current | 55 mA |
| Stall torque | 3.75 mNm |
| Stall current | 652 mA |
| Load torque | 0.79 mNm |
| Load speed | 6800 rpm |
| Load current | 180 mA |
| Max. output power | 0.85 W |
| Max. efficiency | 51.9 % |
| Back-EMF constant | 0.64 mV/rpm |
| Torque constant | 6.28 mNm/A |
| Speed/torque gradient | 2293 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 16.7 g |
| Operating temperature range | -20~+80 °C |
| Specification | C1627F34AH-0063 |
|---|---|
| Voltage | 12.0 V |
| Terminal resistance | 49 Ω |
| No-load speed | 8000 rpm |
| No-load current | 20 mA |
| Stall torque | 3.43 mNm |
| Stall current | 233 mA |
| Load torque | 0.59 mNm |
| Load speed | 6500 rpm |
| Load current | 60 mA |
| Max. output power | 0.72 W |
| Max. efficiency | 61.5 % |
| Back-EMF constant | 1.38 mV/rpm |
| Torque constant | 16.08 mNm/A |
| Speed/torque gradient | 2332 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 16.7 g |
| Operating temperature range | -20~+80 °C |
| Specification | C1627F34AH-0064 |
|---|---|
| Voltage | 6.0 V |
| Terminal resistance | 2.4 Ω |
| No-load speed | 20200 rpm |
| No-load current | 100 mA |
| Stall torque | 5.40 mNm |
| Stall current | 2304 mA |
| Load torque | 0.39 mNm |
| Load speed | 19100 rpm |
| Load current | 220 mA |
| Max. output power | 2.86 W |
| Max. efficiency | 56.7 % |
| Back-EMF constant | 0.29 mV/rpm |
| Torque constant | 2.45 mNm/A |
| Speed/torque gradient | 3741 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 16.7 g |
| Operating temperature range | -20~+80 °C |
