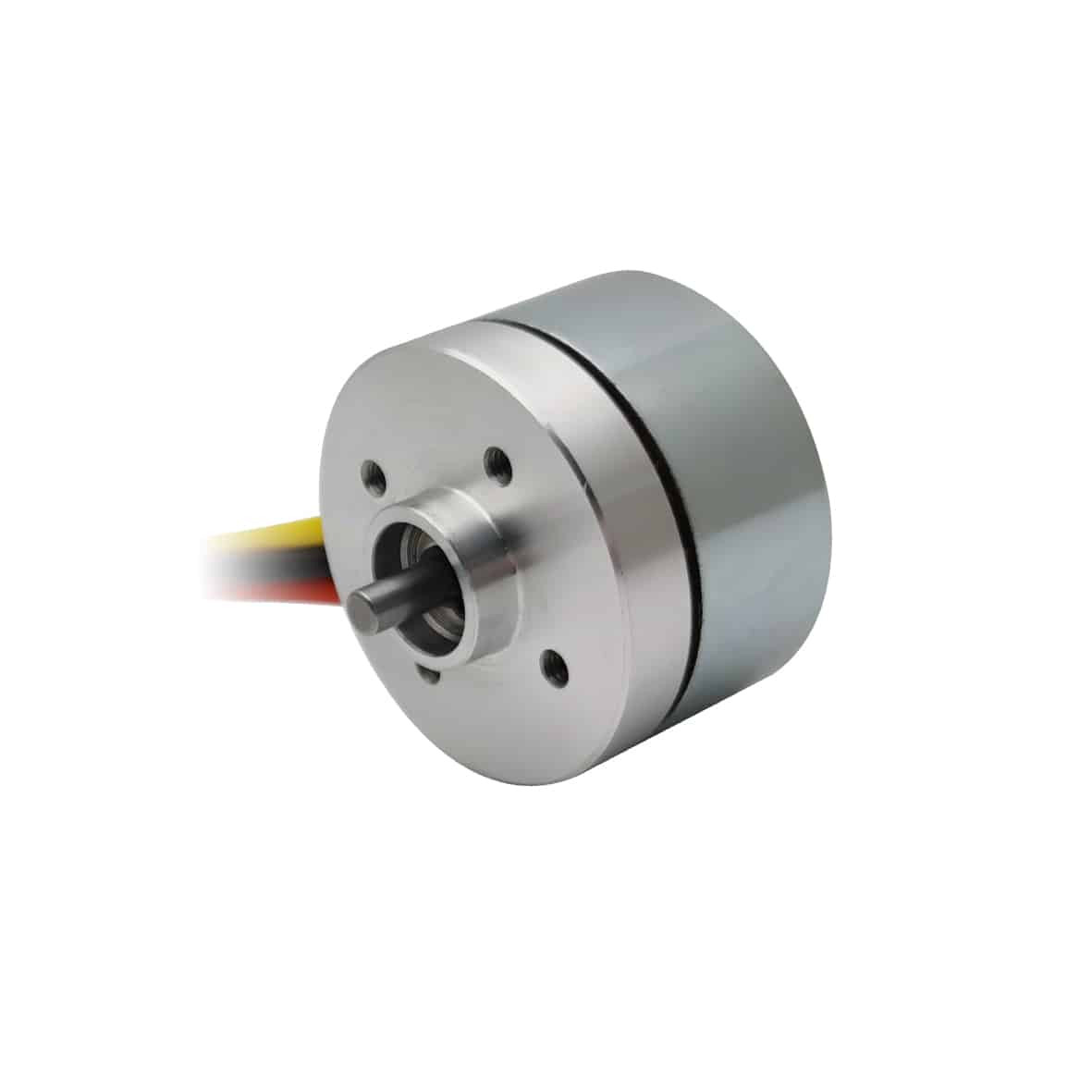

Name: BO4831NH2B - KOCO MOTION
SKU: BO4831NH2B

Specification	BO4831NH2B01-101-18.0	BO4831NH2B02-101-24.0	BO4831NH2B03-101-36.0
Voltage	18.0 V	24.0 V	36.0 V
Terminal resistance	0.05 Ω	0.08 Ω	0.18 Ω
No-load speed	10160 rpm	10160 rpm	10160 rpm
No-load current	1.1 A	0.9 A	0.6 A
Stall torque	6053 mNm	6726 mNm	6727 mNm
Stall current	360.0 A	300.0 A	200.0 A
Nominal torque	449 mNm	447 mNm	457 mNm
Nominal speed	7600 rpm	7700 rpm	7700 rpm
Nominal current	23.5 A	17.6 A	12 A
Max. output power	1609 W	1788 W	1788 W
Max. efficiency	89.2 %	89.3 %	89.3 %
Back-EMF constant	1.8 mV/rpm	2.4 mV/rpm	3.5 mV/rpm
Torque constant	16.9 mNm/A	22.5 mNm/A	33.7 mNm/A
KV Value	564 rpm/V	423 rpm/V	282 rpm/V
Speed/torque gradient	1.68 rpm/mNm	1.51 rpm/mNm	1.51 rpm/mNm
Rotor inertia	306 g·cm²	306 g·cm²	306 g·cm²
Weight	211 g	211 g	211 g
Thermal resistance housing-ambient	1.14 K/W	1.14 K/W	1.14 K/W
Thermal resistance winding-housing	0.38 K/W	0.38 K/W	0.38 K/W
Thermal time constant motor	350 s	350 s	350 s
Thermal time constant winding	60 s	60 s	60 s
Operating temperature range	-40~+120	-40~+120	-40~+120
Thermal class of winding	180 °C	180 °C	180 °C
Axial play	0.012 mm	0.012 mm	0.012 mm
Radial play	0.008 mm	0.008 mm	0.008 mm
Axial load dynamic	10 N	10 N	10 N
Axial load static	110 N	110 N	110 N
Radial load at 3 mm from mounting face	42 N	42 N	42 N
No. of pole pairs	7	7	7
Bearings	2 ball bearings	2 ball bearings	2 ball bearings
Protection class	20 IP	20 IP	20 IP
Commutation	Hall Sensor	Hall Sensor	Hall Sensor

Options

lead wires length shaft length special coils gear heads encoder driver

Anwendungen

UAV aeromodelling

BO4831NH2B

2D drawing BO4831NH2B (png, 139.13K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	BO4831NH2B01-101-18.0
Voltage	18.0 V
Terminal resistance	0.05 Ω
No-load speed	10160 rpm
No-load current	1.1 A
Stall torque	6053 mNm
Stall current	360.0 A
Nominal torque	449 mNm
Nominal speed	7600 rpm
Nominal current	23.5 A
Max. output power	1609 W
Max. efficiency	89.2 %
Back-EMF constant	1.8 mV/rpm
Torque constant	16.9 mNm/A
KV Value	564 rpm/V
Speed/torque gradient	1.68 rpm/mNm
Rotor inertia	306 g·cm²
Weight	211 g
Thermal resistance housing-ambient	1.14 K/W
Thermal resistance winding-housing	0.38 K/W
Thermal time constant motor	350 s
Thermal time constant winding	60 s
Operating temperature range	-40~+120 °C
Thermal class of winding	180 °C
Axial play	0.012 mm
Radial play	0.008 mm
Axial load dynamic	10 N
Axial load static	110 N
Radial load at 3 mm from mounting face	42 N
No. of pole pairs	7
Bearings	2 ball bearings
Protection class	20 IP
Commutation	Hall Sensor

Options

lead wires length shaft length special coils gear heads encoder driver

Anwendungen

UAV aeromodelling

BO4831NH2B

2D drawing BO4831NH2B (png, 139.13K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	BO4831NH2B02-101-24.0
Voltage	24.0 V
Terminal resistance	0.08 Ω
No-load speed	10160 rpm
No-load current	0.9 A
Stall torque	6726 mNm
Stall current	300.0 A
Nominal torque	447 mNm
Nominal speed	7700 rpm
Nominal current	17.6 A
Max. output power	1788 W
Max. efficiency	89.3 %
Back-EMF constant	2.4 mV/rpm
Torque constant	22.5 mNm/A
KV Value	423 rpm/V
Speed/torque gradient	1.51 rpm/mNm
Rotor inertia	306 g·cm²
Weight	211 g
Thermal resistance housing-ambient	1.14 K/W
Thermal resistance winding-housing	0.38 K/W
Thermal time constant motor	350 s
Thermal time constant winding	60 s
Operating temperature range	-40~+120 °C
Thermal class of winding	180 °C
Axial play	0.012 mm
Radial play	0.008 mm
Axial load dynamic	10 N
Axial load static	110 N
Radial load at 3 mm from mounting face	42 N
No. of pole pairs	7
Bearings	2 ball bearings
Protection class	20 IP
Commutation	Hall Sensor

Options

lead wires length shaft length special coils gear heads encoder driver

Anwendungen

UAV aeromodelling

BO4831NH2B

2D drawing BO4831NH2B (png, 139.13K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	BO4831NH2B03-101-36.0
Voltage	36.0 V
Terminal resistance	0.18 Ω
No-load speed	10160 rpm
No-load current	0.6 A
Stall torque	6727 mNm
Stall current	200.0 A
Nominal torque	457 mNm
Nominal speed	7700 rpm
Nominal current	12 A
Max. output power	1788 W
Max. efficiency	89.3 %
Back-EMF constant	3.5 mV/rpm
Torque constant	33.7 mNm/A
KV Value	282 rpm/V
Speed/torque gradient	1.51 rpm/mNm
Rotor inertia	306 g·cm²
Weight	211 g
Thermal resistance housing-ambient	1.14 K/W
Thermal resistance winding-housing	0.38 K/W
Thermal time constant motor	350 s
Thermal time constant winding	60 s
Operating temperature range	-40~+120 °C
Thermal class of winding	180 °C
Axial play	0.012 mm
Radial play	0.008 mm
Axial load dynamic	10 N
Axial load static	110 N
Radial load at 3 mm from mounting face	42 N
No. of pole pairs	7
Bearings	2 ball bearings
Protection class	20 IP
Commutation	Hall Sensor

Options

lead wires length shaft length special coils gear heads encoder driver

Anwendungen

UAV aeromodelling

BO4831NH2B

2D drawing BO4831NH2B (png, 139.13K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de
