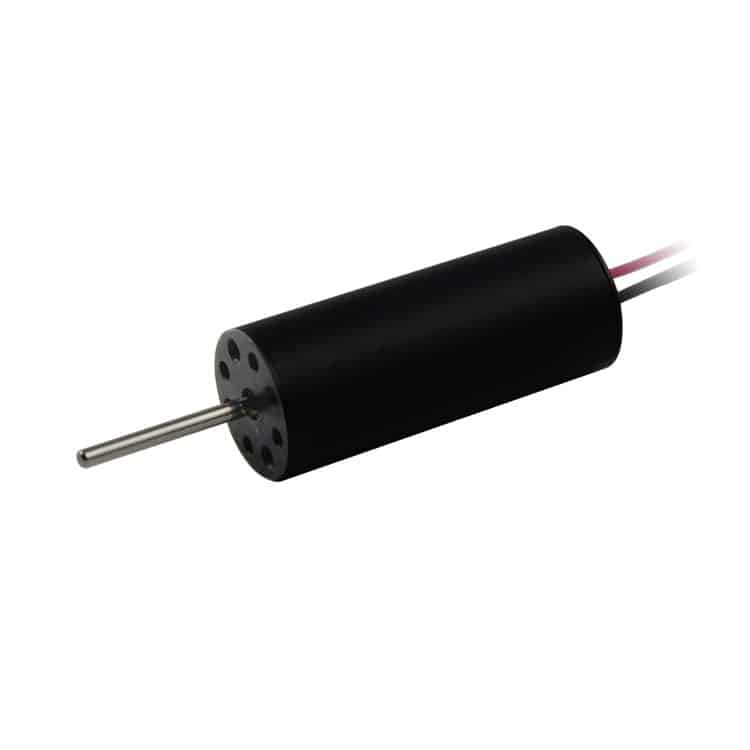

B1231NH2B 12mm BLDC Inner Rotor Motor, Slotless, With Hall Sensor
- Compact Precision: 12mm diameter brushless DC motor with slotless construction, ensuring low cogging torque and ultra-smooth motion profiles ideal for sensitive applications.
- Integrated Hall Sensors: Built-in Hall sensors provide accurate rotor position detection for reliable commutation and optimized speed control.
- Inner Rotor Design: Offers excellent balance of torque and efficiency for continuous and dynamic operation.
Application Areas:
- Precision drives in medical equipment—ideal for infusion pumps, miniature pumps, and diagnostic instruments.
- Industrial automation—suited for actuators, robotics, pick & place units, and compact drive systems where precise speed control is critical.
Customizable Options:
- Shaft length and bearing type selection
- Special coils for tailored electrical performance
- Gear head, encoder, and driver integration for advanced motion requirements
- Hall sensor and encoder availability for closed-loop control systems
With robust construction and a flexible range of configuration options, the B1231NH2B BLDC motor series enables engineers to meet the most demanding motion control challenges in constrained spaces, delivering reliable, long-life performance for your application platform.
