Beschreibung

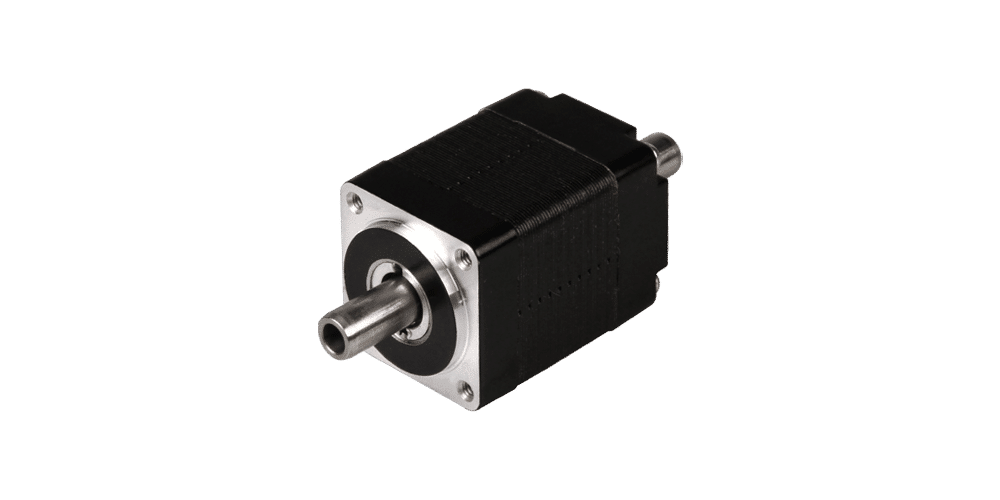

The size 8 [20mm] Hollow Shaft Stepper Motor has Max. 0.02N·m of holding torque.

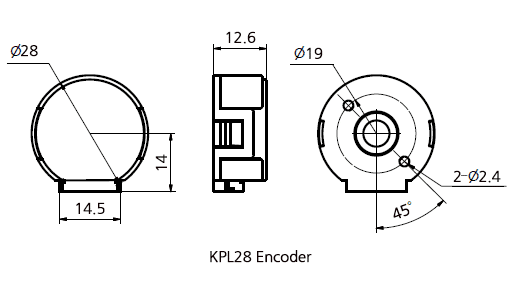

For special windings or customization of shaft, also hollow type of encoder assembly, Please contact KOCO for further information.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
The size 8 [20mm] Hollow Shaft Stepper Motor has Max. 0.02N·m of holding torque.
For special windings or customization of shaft, also hollow type of encoder assembly, Please contact KOCO for further information.
The size 8 [20mm] Hollow Shaft Stepper Motor has Max. 0.02N·m of holding torque.
For special windings or customization of shaft, also hollow type of encoder assembly, Please contact KOCO for further information.
Specification | 8HS2028 |
---|---|
Rated Voltage | 2.55 A |
Current | 0.5 V |
Resistance | 5.1 Ω |
Inductance | 1.5 mH |

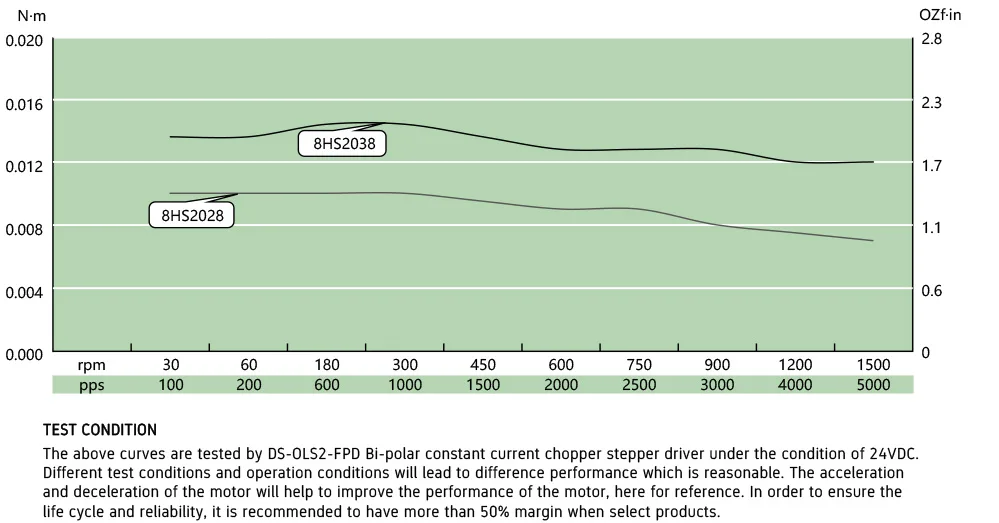

Holding Torque | 0.014 Nm |
Detent Torque | 0.002 Nm |

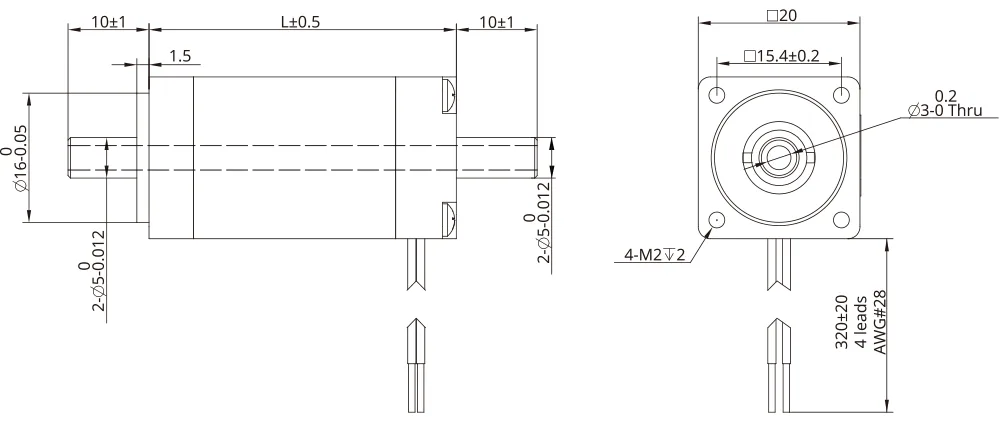

Motor length | 28 mm |
Size | 8 Nema |
Flange size | 20 mm |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
