6-2103

14mm Stepper Lead Screw Linear Actuator

Artikelnummer: 6-2103 Kategorie:

Beschreibung

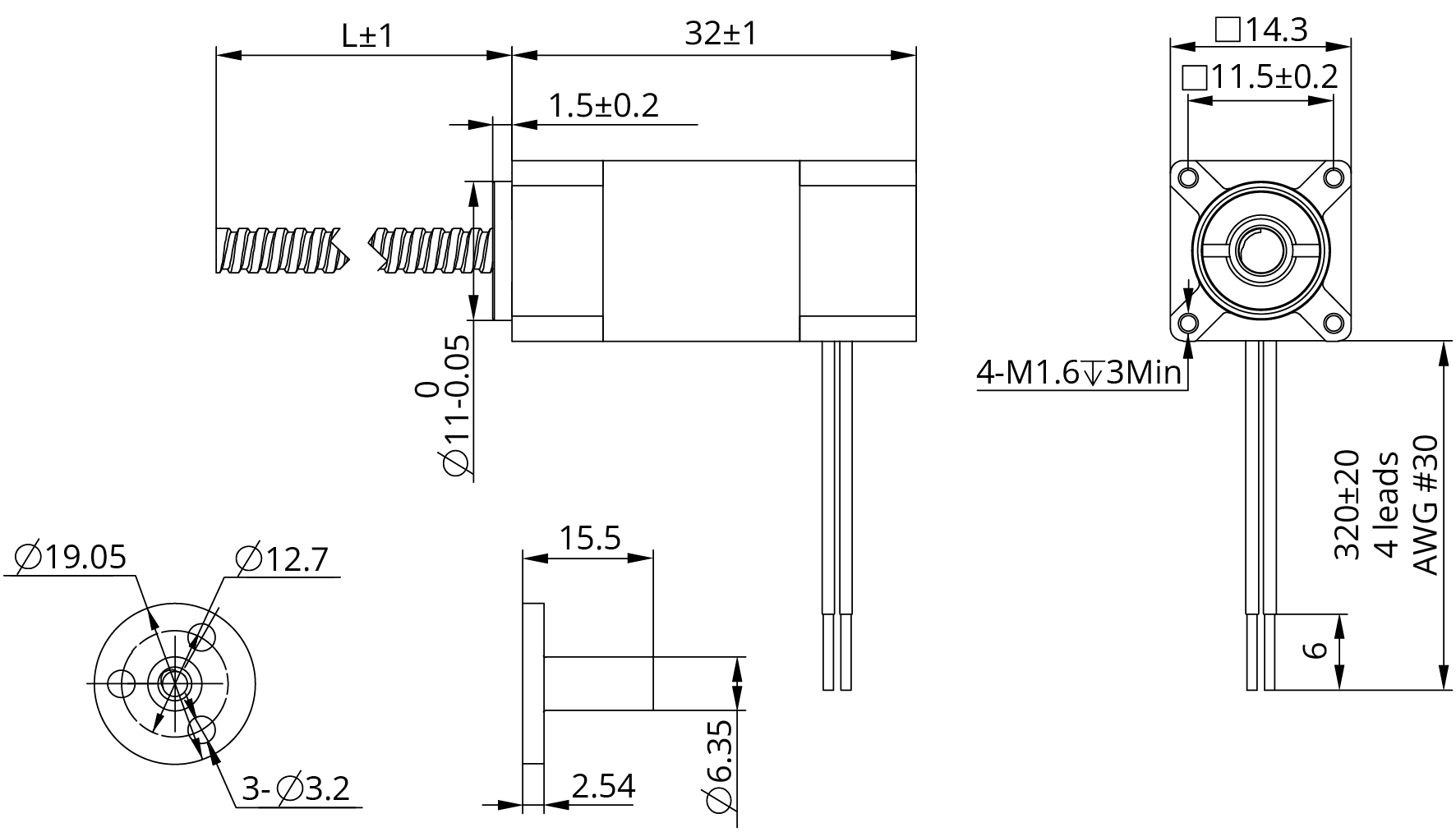

SLSLA – Size 6 [14mm] Stepper Lead Screw Linear Actuator offers reliable, high-precision linear motion for demanding industrial automation and instrumentation applications. Engineered to maximize performance within a compact 14mm x 14mm footprint, this actuator delivers a maximum thrust force of 19N, making it ideal for systems with stringent space requirements.

  • Multiple Lead Screw Options: Select from a range of lead codes (AA, B, AF, AB, G, M, T, AD, J) offering pitches from 0.3mm to 8mm, with screw diameters of 2.5mm to 3.5mm and travel per 1.8° step from 1.5μm to 40μm.
  • Versatile Configurations: Supports external, captive (electrical cylinder), kaptive, and non-captive styles to address various integration needs.
  • Customization Options: Features threaded, smooth, or customized screw end machining, single stack options, encoder (EK6) feedback for closed-loop control, and available Teflon coating for added environmental resilience.
  • Precision Performance: Suited to applications requiring fine, repeatable linear positioning such as microfluidics, medical dosing systems, miniature robotics, and compact lab automation.

With left- and right-hand thread options and support for a range of pitches and motor stack configurations, the SLSLA Size 6 enables designers to balance speed, force, and accuracy for optimized machine performance. Each unit can be tailored for specific operational challenges, delivering robust, maintenance-friendly motion control in compact footprints.
