Beschreibung
Size 34 [86mm] Stepper Lead Screw Linear Actuator is our biggest in size, and can provide up to 2270N of continuous thrust.

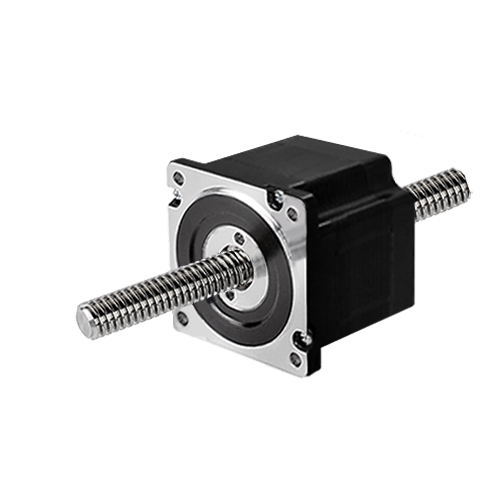

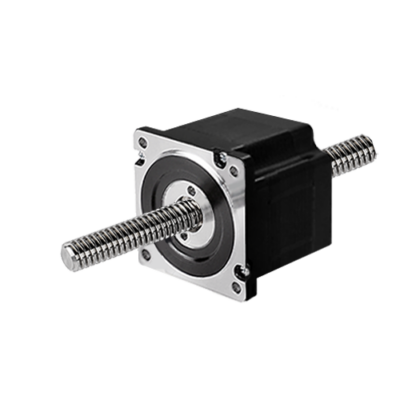

Size 34 Stepper Lead Screw Linear Actuator has two form factors available – External and Non-Captive
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
Size 34 [86mm] Stepper Lead Screw Linear Actuator is our biggest in size, and can provide up to 2270N of continuous thrust.
Size 34 Stepper Lead Screw Linear Actuator has two form factors available – External and Non-Captive
Size 34 [86mm] Stepper Lead Screw Linear Actuator is our biggest in size, and can provide up to 2270N of continuous thrust.
Size 34 Stepper Lead Screw Linear Actuator has two form factors available – External and Non-Captive
Specification | 34-2113 |
---|---|
Voltage | 12 V |
Current | 1.3 A |
Resistance | 9.2 Ω |
Inductance | 71 mH |
Weight | 2370 g |
Lead Wire No. | 4 |
Motor Length | 76 mm |
Size | 34 Nema |
Flange size | 86 mm |
Lead Screw Code | 34-2113 |
---|---|
K, Screw Lead | 15.875 mm |
L, Screw Lead | 15.875 mm |
R, Screw Lead | 15.875 mm |
S, Screw Lead | 15.875 mm |
Y, Screw Lead | 15.875 mm |
Z, Screw Lead | 15.875 mm |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
