2734ZDR-1-L2-30-3.7

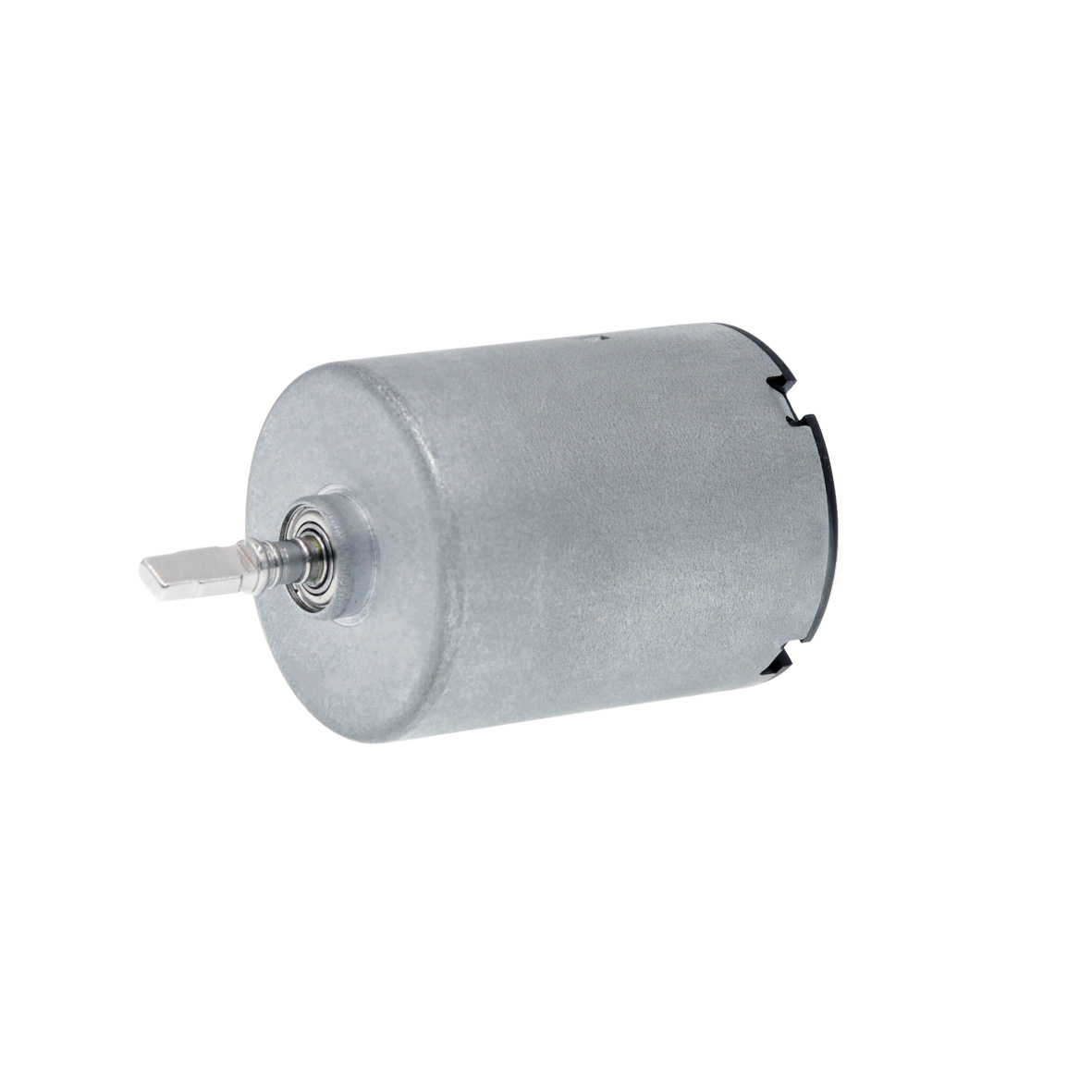

Brushless Sonic Vibration Motor

Artikelnummer: 2734ZDR-1-L2-30-3.7 Kategorie:

Beschreibung

The 2734ZDR series brushless sonic vibration motors deliver dependable and precise high-frequency vibration performance for professional applications. Designed for use at 3.7V or 5.0V operating voltages, these motors achieve vibration frequencies up to 30,000 times per minute (no-load) and 20,400 times per minute under load. Their wide operating frequency range (100–240 Hz) and robust construction make them ideal for devices requiring consistent and powerful vibration.

  • Key Technical Specifications:
    • Operating voltage: 3.7V & 5.0V versions
    • No-load current: 150–220 mA
    • Starting torque: 56–75 mNm
    • Operating temperature: -10°C to +60°C
    • Compact and lightweight: 76g unit weight
    • Rotor inertia: 2.4 gcm²
  • Applications: ideal for facial brushes, massagers, health care products, and cleaning equipment requiring stable, high-speed sonic vibration.
  • Available Options: Custom lead wire length, shaft length, and special coil configurations support tailored integration.
  • Benefits:
    • Brushless design enhances durability and reduces maintenance
    • High vibration accuracy supports demanding precision applications
    • Flexible customization supports unique design requirements

With its blend of high performance, reliability, and configurability, the 2734ZDR series is the optimal solution for innovative personal care and technical cleaning equipment.
