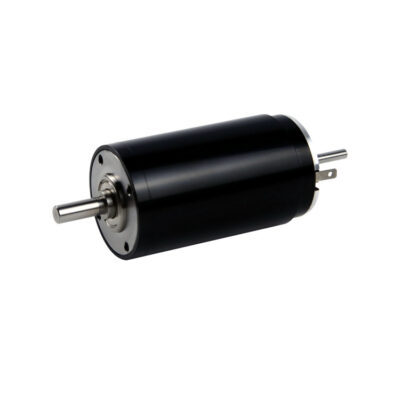

| Parameter | Unit | 2543N9C2B03-65-24.0 | 2543N9C2B06-110-24.0 | 2543N9C2B05-65-48.0 |
|---|---|---|---|---|
| Voltage | V | 24.0 | 24.0 | 48.0 |
| Terminal resistance | Ohm | 6.3 | 2.7 | 23.0 |
| No-load speed | rpm | 6500 | 11000 | 6500 |
| No-load current | mA | 25 | 45 | 20 |
| Stall torque | mNm | 132.6 | 183.4 | 144.6 |
| Stall current | mA | 3810 | 8890 | 2090 |
| Nominal torque | mNm | 37.6 | 20.2 | 42.6 |
| Nominal speed | rpm | 4660 | 9790 | 4580 |
| Nominal current | mA | 1100 | 1020 | 630 |
| Max. output power | W | 22.6 | 52.9 | 24.6 |
| Max. efficiency | % | 85 | 86 | 81 |
| Back-EMF constant | mV/rpm | 3.7 | 2.2 | 7.3 |
| Torque constant | mNm/A | 35.0 | 20.7 | 69.8 |
| Speed/torque gradient | rpm/mNm | 49.0 | 60.0 | 45.0 |
| Rotor inertia | g·cm² | 13.2 | 13.2 | 13.2 |
| Weight | g | 98 | 98 | 98 |
| Thermal resistance housing-ambient | K/W | 11.04 | 11.04 | 11.04 |
| Thermal resistance winding-housing | K/W | 4.67 | 4.67 | 4.67 |
| Thermal time constant motor | s | 266 | 266 | 266 |
| Thermal time constant winding | s | 123 | 123 | 123 |
| Operating temperature range | °C | -20~+120 | -20~+120 | -20~+120 |
| Thermal class of winding | °C | 155 | 155 | 155 |
| Axial play | mm | 0.025 | 0.025 | 0.025 |
| Radial play | mm | 0.02~0.15 | 0.02~0.15 | 0.02~0.15 |
| Axial load dynamic | N | 20 | 20 | 20 |
| Axial load static | N | 60 | 60 | 60 |
| Radial load at 3 mm from mounting face | N | 40 | 40 | 40 |
| No. of pole pairs | 1 | 1 | 1 | |
| Bearings | 2 ball bearings | 2 ball bearings | 2 ball bearings | |
| Commutator | metal 9 segments | metal 9 segments | metal 9 segments | |
| Protection class | IP | 20 | 20 | 20 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

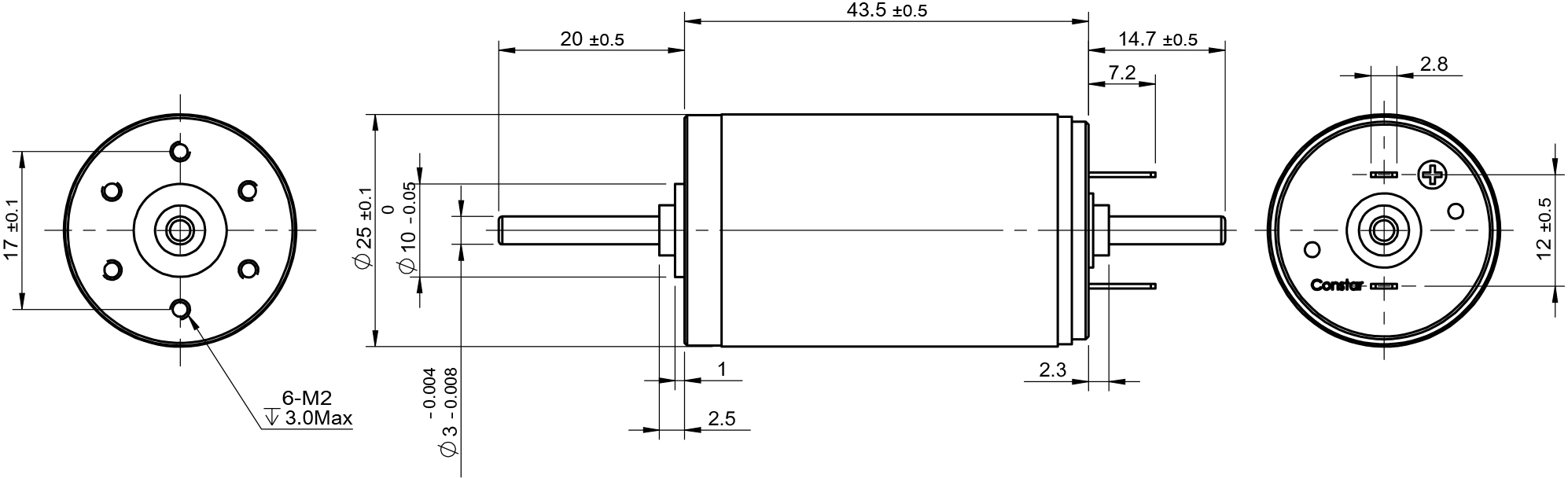

2D drawing 2543N9C2B
| Parameter | Unit | 2543N9C2B03-65-24.0 |
|---|---|---|
| Voltage | V | 24.0 |
| Terminal resistance | Ohm | 6.3 |
| No-load speed | rpm | 6500 |
| No-load current | mA | 25 |
| Stall torque | mNm | 132.6 |
| Stall current | mA | 3810 |
| Nominal torque | mNm | 37.6 |
| Nominal speed | rpm | 4660 |
| Nominal current | mA | 1100 |
| Max. output power | W | 22.6 |
| Max. efficiency | % | 85 |
| Back-EMF constant | mV/rpm | 3.7 |
| Torque constant | mNm/A | 35.0 |
| Speed/torque gradient | rpm/mNm | 49.0 |
| Rotor inertia | g·cm² | 13.2 |
| Weight | g | 98 |
| Thermal resistance housing-ambient | K/W | 11.04 |
| Thermal resistance winding-housing | K/W | 4.67 |
| Thermal time constant motor | s | 266 |
| Thermal time constant winding | s | 123 |
| Operating temperature range | °C | -20~+120 |
| Thermal class of winding | °C | 155 |
| Axial play | mm | 0.025 |
| Radial play | mm | 0.02~0.15 |
| Axial load dynamic | N | 20 |
| Axial load static | N | 60 |
| Radial load at 3 mm from mounting face | N | 40 |
| No. of pole pairs | 1 | |
| Bearings | 2 ball bearings | |
| Commutator | metal 9 segments | |
| Protection class | IP | 20 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
| Parameter | Unit | 2543N9C2B06-110-24.0 |
|---|---|---|
| Voltage | V | 24.0 |
| Terminal resistance | Ohm | 2.7 |
| No-load speed | rpm | 11000 |
| No-load current | mA | 45 |
| Stall torque | mNm | 183.4 |
| Stall current | mA | 8890 |
| Nominal torque | mNm | 20.2 |
| Nominal speed | rpm | 9790 |
| Nominal current | mA | 1020 |
| Max. output power | W | 52.9 |
| Max. efficiency | % | 86 |
| Back-EMF constant | mV/rpm | 2.2 |
| Torque constant | mNm/A | 20.7 |
| Speed/torque gradient | rpm/mNm | 60.0 |
| Rotor inertia | g·cm² | 13.2 |
| Weight | g | 98 |
| Thermal resistance housing-ambient | K/W | 11.04 |
| Thermal resistance winding-housing | K/W | 4.67 |
| Thermal time constant motor | s | 266 |
| Thermal time constant winding | s | 123 |
| Operating temperature range | °C | -20~+120 |
| Thermal class of winding | °C | 155 |
| Axial play | mm | 0.025 |
| Radial play | mm | 0.02~0.15 |
| Axial load dynamic | N | 20 |
| Axial load static | N | 60 |
| Radial load at 3 mm from mounting face | N | 40 |
| No. of pole pairs | 1 | |
| Bearings | 2 ball bearings | |
| Commutator | metal 9 segments | |
| Protection class | IP | 20 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
2D drawing 2543N9C2B
| Parameter | Unit | 2543N9C2B05-65-48.0 |
|---|---|---|
| Voltage | V | 48.0 |
| Terminal resistance | Ohm | 23.0 |
| No-load speed | rpm | 6500 |
| No-load current | mA | 20 |
| Stall torque | mNm | 144.6 |
| Stall current | mA | 2090 |
| Nominal torque | mNm | 42.6 |
| Nominal speed | rpm | 4580 |
| Nominal current | mA | 630 |
| Max. output power | W | 24.6 |
| Max. efficiency | % | 81 |
| Back-EMF constant | mV/rpm | 7.3 |
| Torque constant | mNm/A | 69.8 |
| Speed/torque gradient | rpm/mNm | 45.0 |
| Rotor inertia | g·cm² | 13.2 |
| Weight | g | 98 |
| Thermal resistance housing-ambient | K/W | 11.04 |
| Thermal resistance winding-housing | K/W | 4.67 |
| Thermal time constant motor | s | 266 |
| Thermal time constant winding | s | 123 |
| Operating temperature range | °C | -20~+120 |
| Thermal class of winding | °C | 155 |
| Axial play | mm | 0.025 |
| Radial play | mm | 0.02~0.15 |
| Axial load dynamic | N | 20 |
| Axial load static | N | 60 |
| Radial load at 3 mm from mounting face | N | 40 |
| No. of pole pairs | 1 | |
| Bearings | 2 ball bearings | |
| Commutator | metal 9 segments | |
| Protection class | IP | 20 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
