Beschreibung

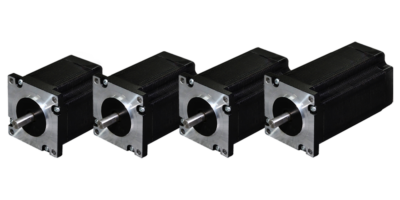

The size 24 [60mm] Hybrid Rotary Stepper Motor has Max. 3.0N·m of holding torque.

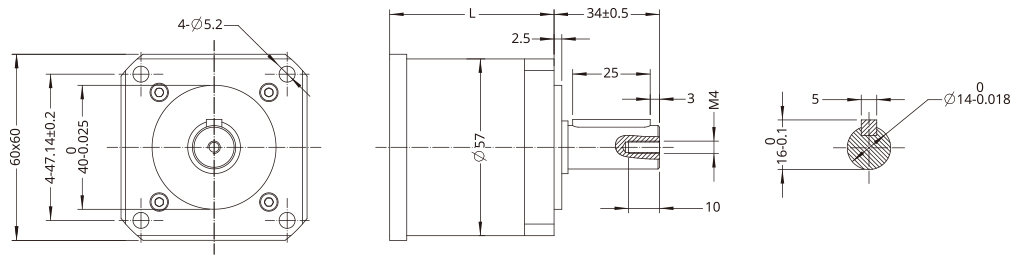

Encoders and 60mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
The size 24 [60mm] Hybrid Rotary Stepper Motor has Max. 3.0N·m of holding torque.
Encoders and 60mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.
The size 24 [60mm] Hybrid Rotary Stepper Motor has Max. 3.0N·m of holding torque.
Encoders and 60mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.
Specification | 24H2068 |
---|---|
Current | 4.0 A |
Resistance | 0.6 Ω |
Inductance | 1.9 mH |
Holding Torque | 2.1 N.m |
Rotor Inertia | 490 g·cm² |
Length | 68 mm |
Mass | 1000 g |
