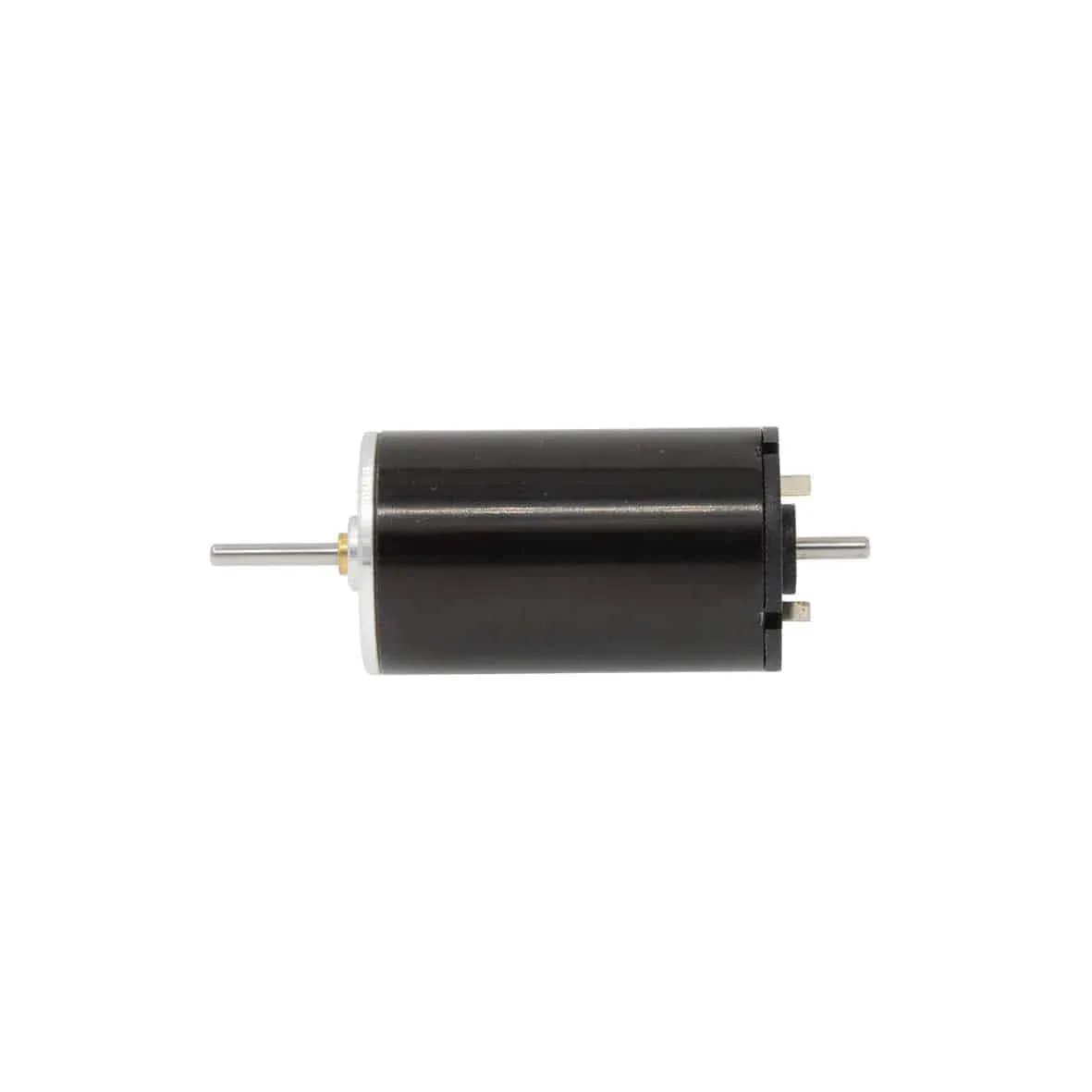

Name: 1627N5M1 - KOCO MOTION
SKU: 1627N5M1

Specification	1627N5M07-101-4.5	1627N5M20-113-6.0	1627N5M14-118-12.0
Voltage	4.5 V	6.0 V	12.0 V
Terminal resistance	1.5 Ω	1.8 Ω	8.7 Ω
No-load speed	10100 rpm	11300 rpm	11800 rpm
No-load current	50 mA	50 mA	20 mA
Stall torque	12.3 mNm	16.4 mNm	13.0 mNm
Stall current	3000 mA	3330 mA	1380 mA
Nominal torque	3.0 mNm	4.0 mNm	3.3 mNm
Nominal speed	7640 rpm	8540 rpm	8810 rpm
Nominal current	770 mA	850 mA	360 mA
Max. output power	3.3 W	4.9 W	4.0 W
Max. efficiency	76 %	77 %	77 %
Back-EMF constant	0.4 mV/rpm	0.5 mV/rpm	1.0 mV/rpm
Torque constant	4.2 mNm/A	5.0 mNm/A	9.6 mNm/A
Speed/torque gradient	820 rpm/mNm	690 rpm/mNm	910 rpm/mNm
Rotor inertia	0.6 g·cm²	0.6 g·cm²	0.7 g·cm²
Weight	25 g	25 g	25 g
Thermal resistance housing-ambient	24.88 K/W	24.88 K/W	24.88 K/W
Thermal resistance winding-housing	29.38 K/W	29.38 K/W	29.38 K/W
Thermal time constant motor	228 s	228 s	228 s
Thermal time constant winding	176 s	176 s	176 s
Operating temperature range	-20~+85	-20~+85	-20~+85
Thermal class of winding	130 °C	130 °C	130 °C
Axial play	0.02~0.15	0.02~0.15	0.02~0.15
Radial play	0.014 mm	0.014 mm	0.014 mm
Axial load dynamic	0.8 N	0.8 N	0.8 N
Axial load static	30 N	30 N	30 N
Radial load at 3 mm from mounting face	1.4 N	1.4 N	1.4 N
No. of pole pairs	1	1	1
Bearings	2 sleeve bearings	2 sleeve bearings	2 sleeve bearings
Commutator	metal 5 segments	metal 5 segments	metal 5 segments
Protection class	30 IP	30 IP	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1627N5M1

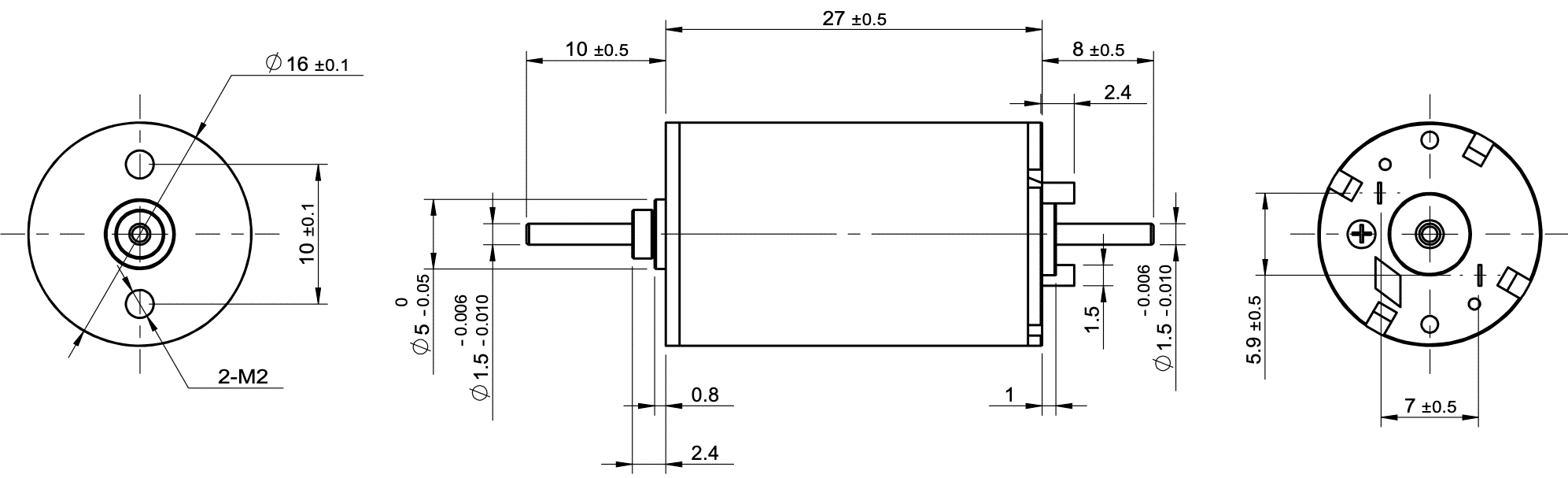

2D drawing 1627N5M1 (png, 122.51K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	1627N5M07-101-4.5
Voltage	4.5 V
Terminal resistance	1.5 Ω
No-load speed	10100 rpm
No-load current	50 mA
Stall torque	12.3 mNm
Stall current	3000 mA
Nominal torque	3.0 mNm
Nominal speed	7640 rpm
Nominal current	770 mA
Max. output power	3.3 W
Max. efficiency	76 %
Back-EMF constant	0.4 mV/rpm
Torque constant	4.2 mNm/A
Speed/torque gradient	820 rpm/mNm
Rotor inertia	0.6 g·cm²
Weight	25 g
Thermal resistance housing-ambient	24.88 K/W
Thermal resistance winding-housing	29.38 K/W
Thermal time constant motor	228 s
Thermal time constant winding	176 s
Operating temperature range	-20~+85 °C
Thermal class of winding	130 °C
Axial play	0.02~0.15 mm
Radial play	0.014 mm
Axial load dynamic	0.8 N
Axial load static	30 N
Radial load at 3 mm from mounting face	1.4 N
No. of pole pairs	1
Bearings	2 sleeve bearings
Commutator	metal 5 segments
Protection class	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1627N5M1

2D drawing 1627N5M1 (png, 122.51K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	1627N5M20-113-6.0
Voltage	6.0 V
Terminal resistance	1.8 Ω
No-load speed	11300 rpm
No-load current	50 mA
Stall torque	16.4 mNm
Stall current	3330 mA
Nominal torque	4.0 mNm
Nominal speed	8540 rpm
Nominal current	850 mA
Max. output power	4.9 W
Max. efficiency	77 %
Back-EMF constant	0.5 mV/rpm
Torque constant	5.0 mNm/A
Speed/torque gradient	690 rpm/mNm
Rotor inertia	0.6 g·cm²
Weight	25 g
Thermal resistance housing-ambient	24.88 K/W
Thermal resistance winding-housing	29.38 K/W
Thermal time constant motor	228 s
Thermal time constant winding	176 s
Operating temperature range	-20~+85 °C
Thermal class of winding	130 °C
Axial play	0.02~0.15 mm
Radial play	0.014 mm
Axial load dynamic	0.8 N
Axial load static	30 N
Radial load at 3 mm from mounting face	1.4 N
No. of pole pairs	1
Bearings	2 sleeve bearings
Commutator	metal 5 segments
Protection class	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1627N5M1

2D drawing 1627N5M1 (png, 122.51K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	1627N5M14-118-12.0
Voltage	12.0 V
Terminal resistance	8.7 Ω
No-load speed	11800 rpm
No-load current	20 mA
Stall torque	13.0 mNm
Stall current	1380 mA
Nominal torque	3.3 mNm
Nominal speed	8810 rpm
Nominal current	360 mA
Max. output power	4.0 W
Max. efficiency	77 %
Back-EMF constant	1.0 mV/rpm
Torque constant	9.6 mNm/A
Speed/torque gradient	910 rpm/mNm
Rotor inertia	0.7 g·cm²
Weight	25 g
Thermal resistance housing-ambient	24.88 K/W
Thermal resistance winding-housing	29.38 K/W
Thermal time constant motor	228 s
Thermal time constant winding	176 s
Operating temperature range	-20~+85 °C
Thermal class of winding	130 °C
Axial play	0.02~0.15 mm
Radial play	0.014 mm
Axial load dynamic	0.8 N
Axial load static	30 N
Radial load at 3 mm from mounting face	1.4 N
No. of pole pairs	1
Bearings	2 sleeve bearings
Commutator	metal 5 segments
Protection class	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1627N5M1

2D drawing 1627N5M1 (png, 122.51K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de
