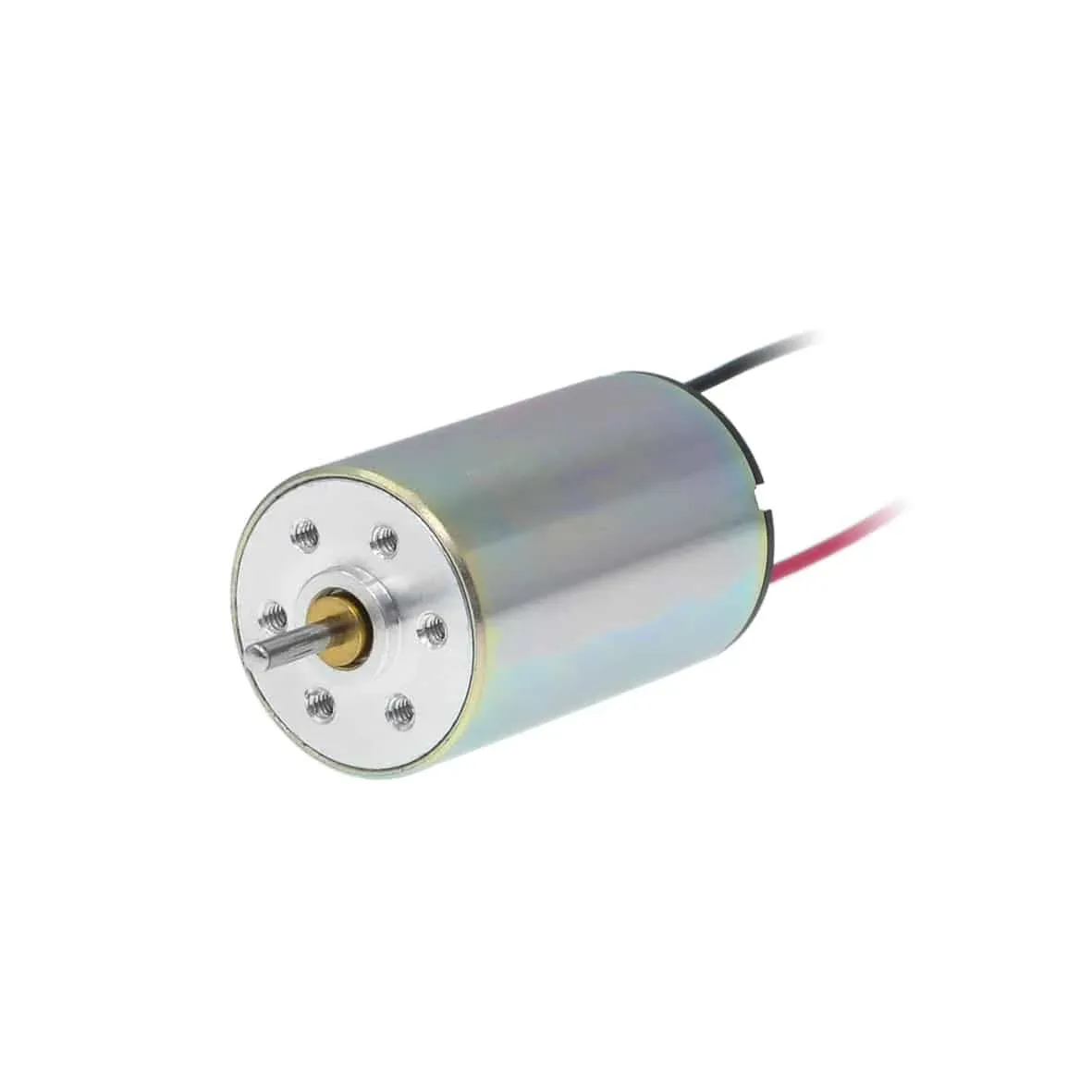

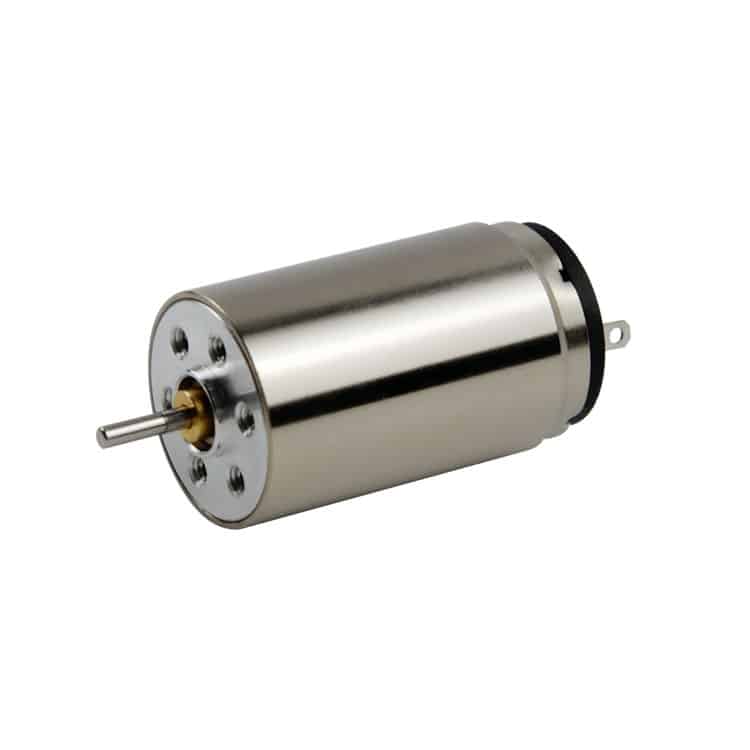

Name: 1625N9M - KOCO MOTION
SKU: 1625N9M

Specification	1625N9M01-115-3.0	1625N9M02-96-6.0	1625N9M03-115-12.0
Voltage	3.0 V	6.0 V	12.0 V
Terminal resistance	1.1 Ω	4.4 Ω	13.4 Ω
No-load speed	11500 rpm	9200 rpm	11500 rpm
No-load current	50 mA	20 mA	12 mA
Stall torque	6.6 mNm	8.2 mNm	8.7 mNm
Stall current	2730 mA	1360 mA	900 mA
Nominal torque	1.0 mNm	1.2 mNm	1.5 mNm
Nominal speed	9750 rpm	7860 rpm	9520 rpm
Nominal current	460 mA	220 mA	160 mA
Max. output power	2.0 W	2.0 W	2.6 W
Max. efficiency	75 %	77 %	78 %
Back-EMF constant	0.3 mV/rpm	0.6 mV/rpm	1.0 mV/rpm
Torque constant	2.4 mNm/A	6.1 mNm/A	9.8 mNm/A
Speed/torque gradient	1750 rpm/mNm	1120 rpm/mNm	1320 rpm/mNm
Rotor inertia	0.78 g·cm²	0.8 g·cm²	0.82 g·cm²
Weight	21.8 g	21.8 g	21.8 g
Thermal resistance housing-ambient	24.8 K/W	24.8 K/W	24.8 K/W
Thermal resistance winding-housing	30.3 K/W	30.3 K/W	30.3 K/W
Thermal time constant motor	201 s	201 s	201 s
Thermal time constant winding	175 s	175 s	175 s
Operating temperature range	-20~+85	-20~+85	-20~+85
Thermal class of winding	130 °C	130 °C	130 °C
Axial play	0.02~0.15	0.02~0.15	0.02~0.15
Radial play	0.014 mm	0.014 mm	0.014 mm
Axial load dynamic	0.8 N	0.8 N	0.8 N
Axial load static	30 N	30 N	30 N
Radial load at 3 mm from mounting face	1.4 N	1.4 N	1.4 N
No. of pole pairs	1	1	1
Bearings	2 sleeve bearings	2 sleeve bearings	2 sleeve bearings
Commutator	metal 9 segments	metal 9 segments	metal 9 segments
Protection class	30 IP	30 IP	30 IP

Options

lead wires length shaft length special coils gear heads

Anwendungen

medical equipment and devices healthcare products automotive robotics industrial automation

1625N9M

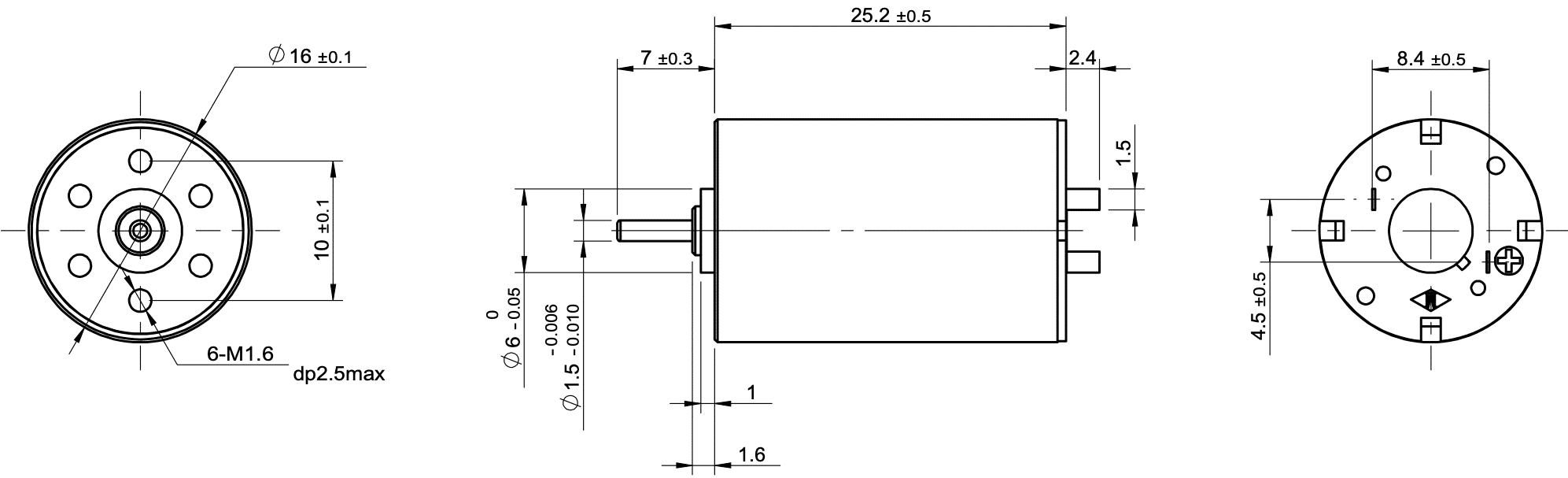

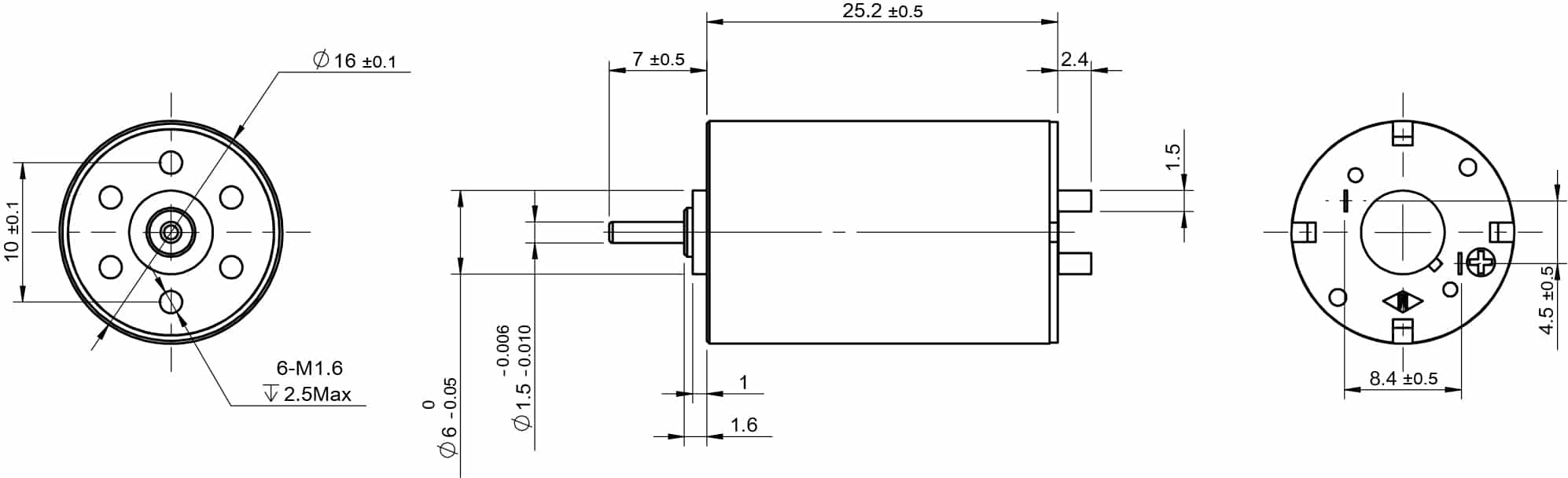

2D drawing 1625N9M (png, 126.21K)
