16**—16*P—

Name: 16**-16*P- KOCO MOTION
SKU: 16**---16*P---

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

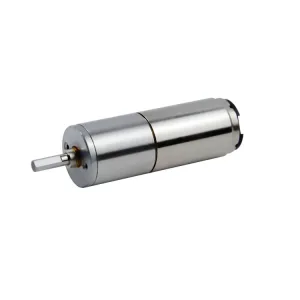

16mm planetary gearbox series

Artikelnummer: 16**—16*P— Kategorie: Planetary Gear

Beschreibung

Beschreibung

16mm planetary gearbox series

Produktvergleich

Motor Characteristics	16*—16P—1627N5M21-113-12.0	16*—16P—1625N9M01-115-3.0
Voltage	12.0 V	3.0 V
Terminal resistance	11.8 Ω	1.1 Ω
No-load speed	11300 rpm	11500 rpm
No-load current	13 mA	50 mA
Stall torque	10.1 mNm	6.6 mNm
Stall current	1020 mA	2730 mA
Nominal torque	3.0 mNm	1.0 mNm
Nominal speed	7940 rpm	9750 rpm
Nominal current	310 mA	460 mA
Max. output power	3.0 W	2.0 W
Max. efficiency	79 %	75 %
Back-EMF constant	1.0 mV/rpm	0.26 mV/rpm
Torque constant	10.0 mNm/A	2.45 mNm/A
Speed/torque gradient	1120 rpm/mNm	1750 rpm/mNm
Rotor inertia	0.6 g·cm²	0.78 g·cm²
Weight	25 g	21.8 g

Gearbox characteristics

16**—16*P—

Gearbox stages

Reduction ratio

Max. rated torque

mNm

Max. momentary torque

240

mNm

Length（L）

15.05

Gearbox stages

Reduction ratio

14~29

Max. rated torque

120

mNm

Max. momentary torque

360

mNm

Length（L）

18.7

Gearbox stages

Reduction ratio

35~157

Max. rated torque

160

mNm

Max. momentary torque

480

mNm

Length（L）

22.35

Gearbox stages

Reduction ratio

231~690

Max. rated torque

200

mNm

Max. momentary torque

600

mNm

Length（L）

Gearbox stages

Reduction ratio

1014~3027

Max. rated torque

240

mNm

Max. momentary torque

720

mNm

Length（L）

29.65

Optionen

lead wires length shaft length special coils

Anwendungen

medical equipment scientific instruments industrial equipment

16**—16*P—


Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	16*—16P—1627N5M21-113-12.0
Voltage	12.0 V
Terminal resistance	11.8 Ω
No-load speed	11300 rpm
No-load current	13 mA
Stall torque	10.1 mNm
Stall current	1020 mA
Nominal torque	3.0 mNm
Nominal speed	7940 rpm
Nominal current	310 mA
Max. output power	3.0 W
Max. efficiency	79 %
Back-EMF constant	1.0 mV/rpm
Torque constant	10.0 mNm/A
Speed/torque gradient	1120 rpm/mNm
Rotor inertia	0.6 g·cm²
Weight	25 g

Gearbox characteristics

16**—16*P—1627N5M21-113-12.0

Gearbox stages

Reduction ratio

Max. rated torque

mNm

Max. momentary torque

240

mNm

Length（L）

15.05

Gearbox stages

Reduction ratio

14~29

Max. rated torque

120

mNm

Max. momentary torque

360

mNm

Length（L）

18.7

Gearbox stages

Reduction ratio

35~157

Max. rated torque

160

mNm

Max. momentary torque

480

mNm

Length（L）

22.35

Gearbox stages

Reduction ratio

231~690

Max. rated torque

200

mNm

Max. momentary torque

600

mNm

Length（L）

Gearbox stages

Reduction ratio

1014~3027

Max. rated torque

240

mNm

Max. momentary torque

720

mNm

Length（L）

29.65
