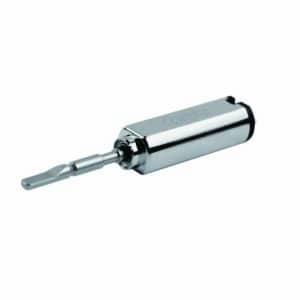

1434ZDF-ET-L15-3.7

14mm DC Sonic Motors

Artikelnummer: 1434ZDF-ET-L15-3.7 Kategorie:

Beschreibung

1434ZDF 14mm DC Sonic Motor Family offers precision vibration technology for applications requiring compact size and robust operation. Designed for high-frequency performance, these motors are ideal for integration into:

  • Electric toothbrushes
  • Health care products
  • Cleaning equipment

Key Technical Specifications:

  • Operating Voltage: 2.5 V or 3.7 V variants
  • Resistance: 3.8 Ω

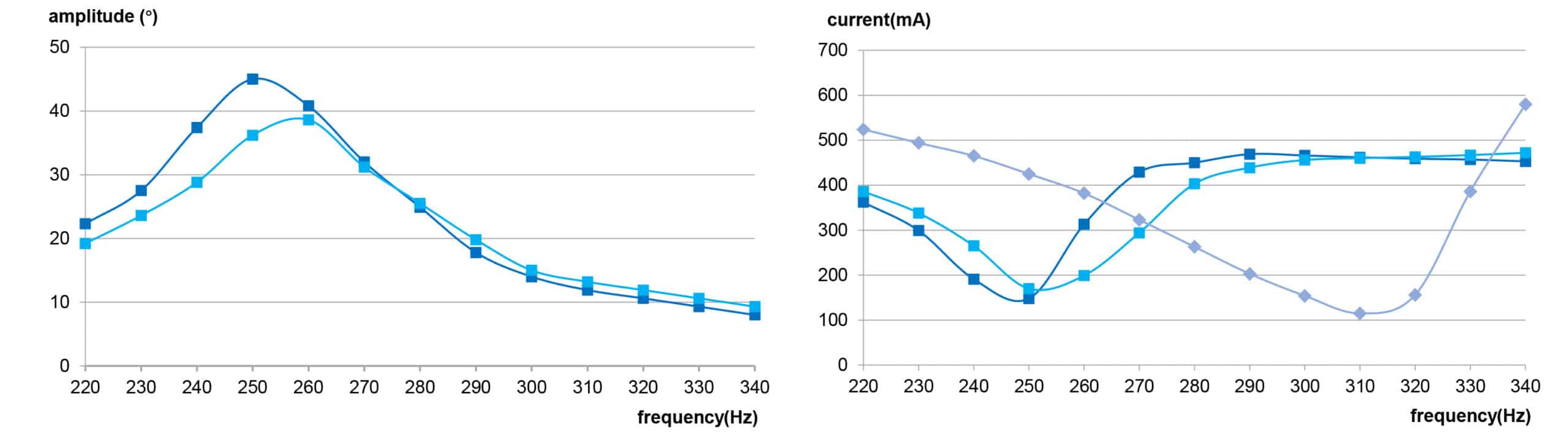

  • Operating Frequency Range: 220–360 Hz
  • No-load Vibration Frequency: 39,600 times/minute
  • Starting Torque: Up to 12 mNm
  • No-load Current: 80–95 mA, Load Current: 340–440 mA
  • Rotor Inertia: 1.0 gcm²
  • Operating Temperature: -10°C to +60°C
  • Compact Weight: 19 g

Benefits & Competitive Advantages:

  • Small form factor with strong vibration output for space-constrained designs
  • Wide frequency range enables optimized cleaning and care performance
  • Low power consumption supports portable and battery-powered devices
  • Customizable options available for lead wires, shaft length, and coil configuration to meet specific application demands
  • Engineered for reliability and extended service life in intensive duty cycles
