11H2033

Name: 11H2033 - KOCO MOTION
SKU: 11H2033

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

The size 11 [28mm] Hybrid Rotary Stepper Motor has Max. 0.14N·m of holding torque.
Encoders and 28mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.

Artikelnummer: 11H2033 Kategorie: Hybrid Steppers

Beschreibung

Beschreibung

Motor Characteristics

Parameter	Unit	11H2033
Current	A	1
Resistance	Ohm	2.1
Inductance	mH	1.5
Holding Torque	N.m	0.06
Rotor Inertia	g·cm²	9
Length	mm	33.5
Mass	g	110
Size	Nema	11
Flange size	mm	28

Family Specification

Family Specification	Unit	11H2033
Accuracy step angle		1.8°±5%
Accuracy Resistance		±10% / 20 C
Accuracy Inductance		±20% / 1KHz
Insulation class		B
Duty type		S1
Dielectrical strength		500 VAC / 1 KHz / 1 mA / 1 s
Insulation resistance		100 MΩ / 500 VDC
Permissible radial load(5MM distance from mounting surface)		50N
Permissible radial load(10MM distance from mounting surface)		35N
Permissible radial load(15MM distance from mounting surface)		25N
Permissible radial load(20MM distance from mounting surface)		20N
End bell		Aluminum alloy
Bearing		Deep groove ball bearing
Magnet		Sintered NdFeB
Shaft		Stainless steel
Wiring		UL 3265, 26 AWG

Optionen

Encoder

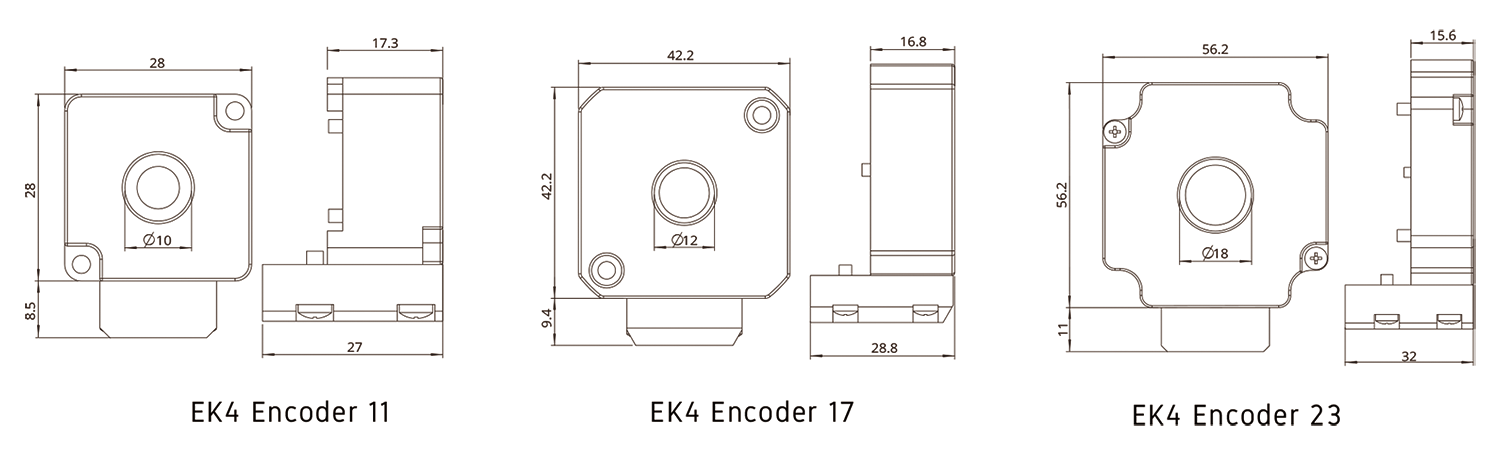

EK1 EK2 EK4 EK5 KPL28

Planetary Gearbox

Metal House material 1° No load backlash Ball bearing

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
