11-2105

Beschreibung

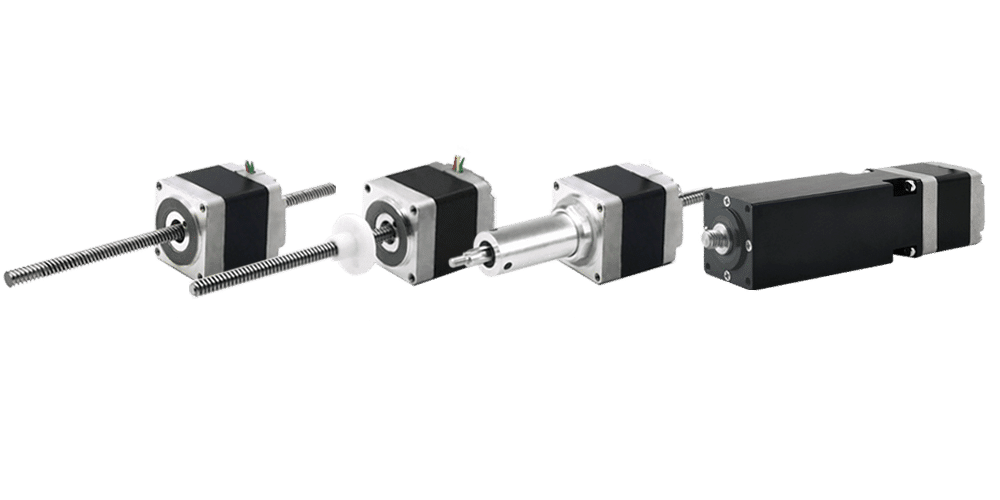

SLSLA – Size 11 [28mm] Stepper Lead Screw Linear Actuator delivers exceptional force and precision in a compact form factor, offering performance unmatched by typical NEMA 8 solutions.

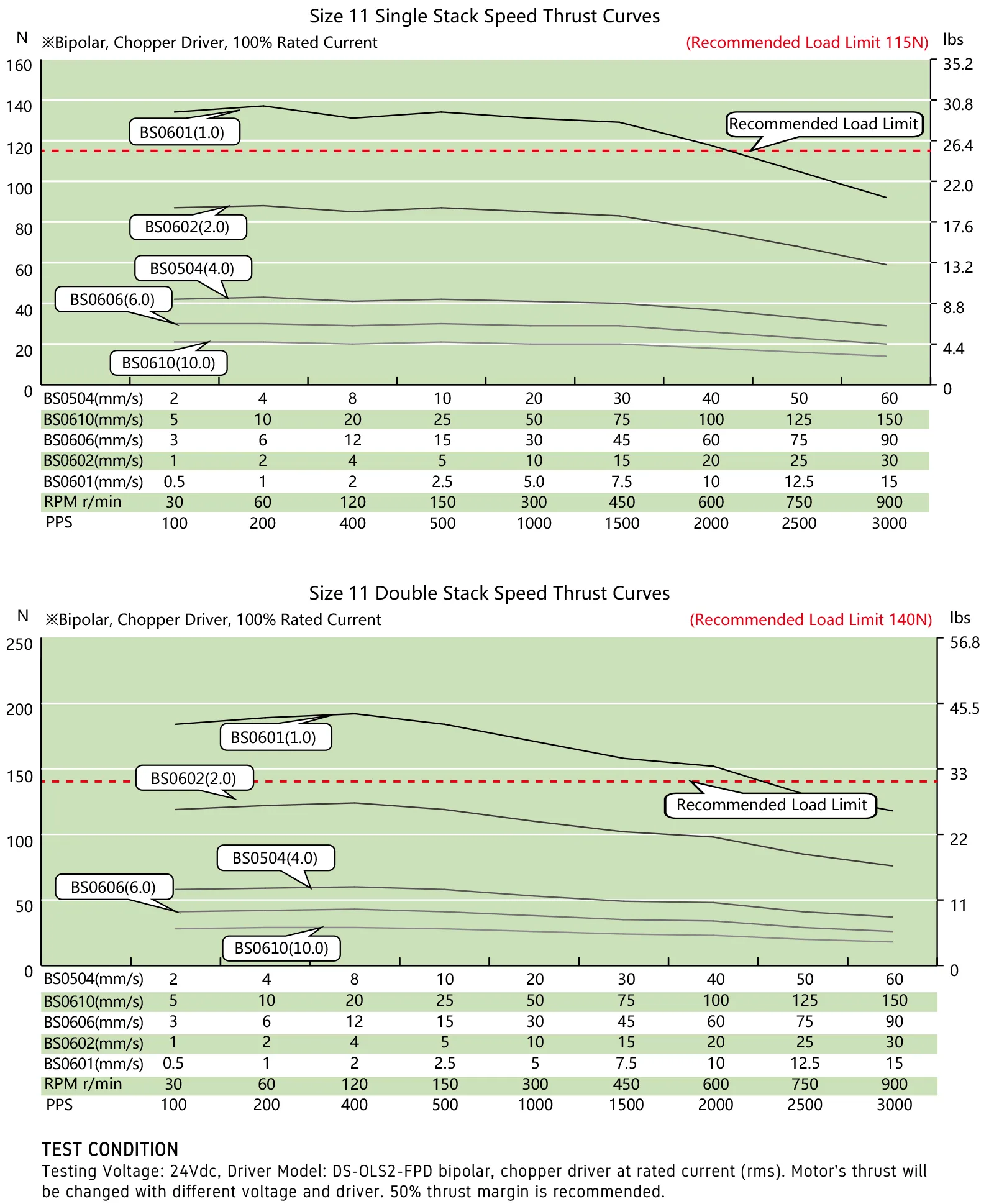

• High Force Density: Provides continuous thrust exceeding 140N, more than three times the output of compact alternatives within a similar envelope.

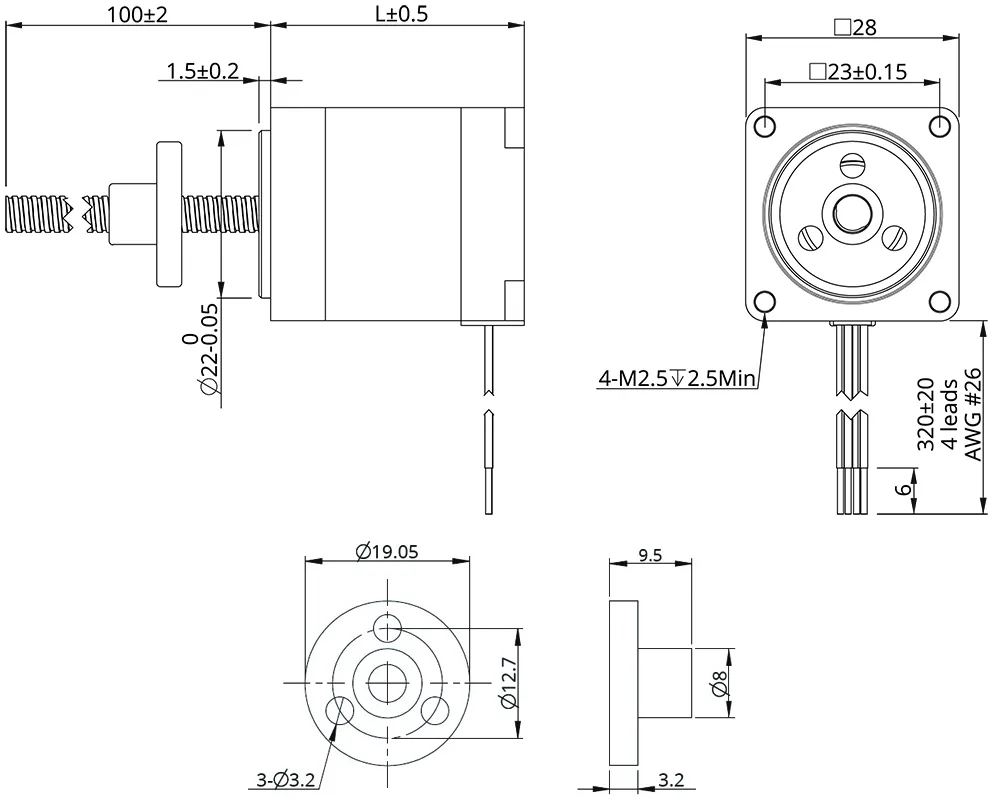

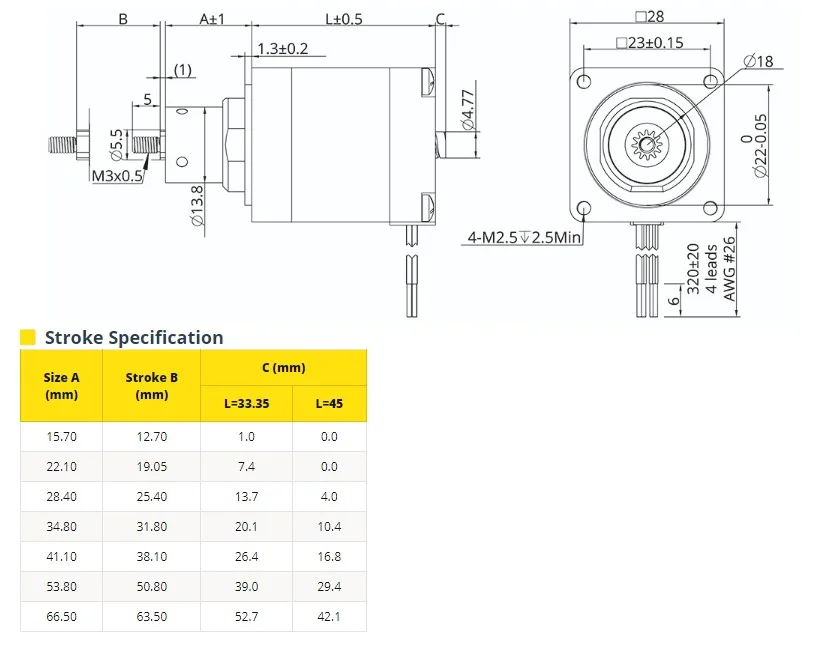

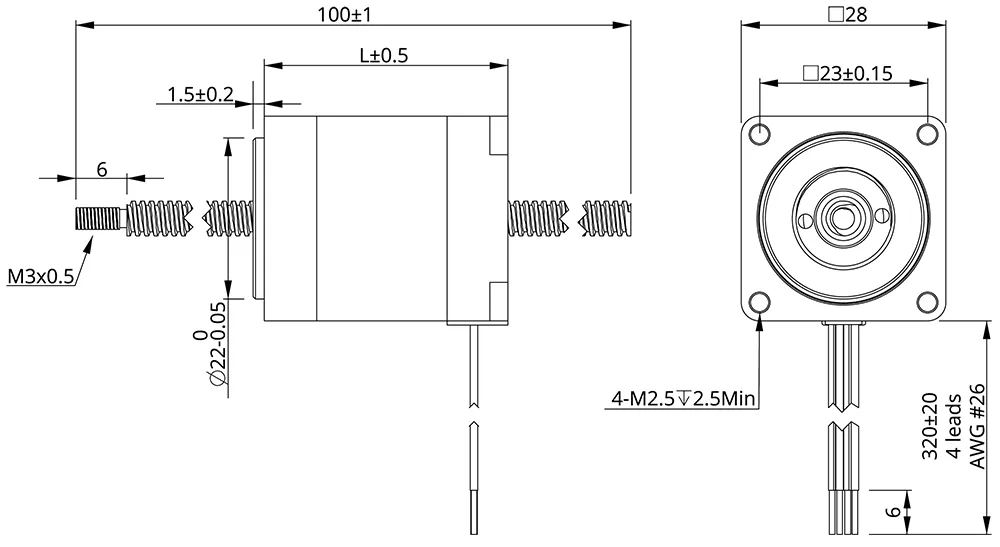

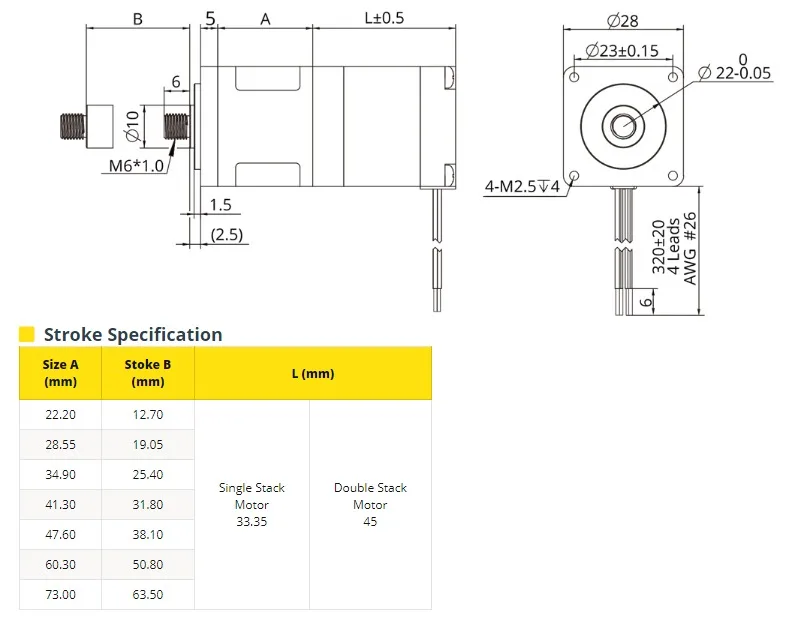

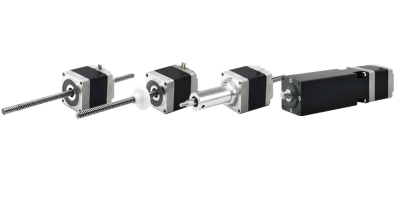

• Versatile Configurations: Four screw types (External, Non-captive, Captive/Electrical Cylinder, Kaptive) and a wide range of screw leads (0.3175 mm to 10.16 mm), diameters up to 5.56 mm, and step travels from 1.6 µm to 50.8 µm ensure optimal adaptation for both speed-driven and high-precision applications.

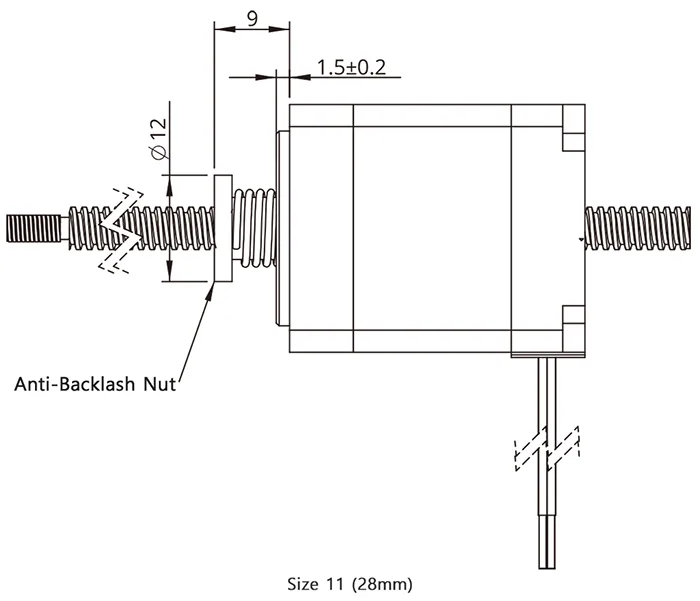

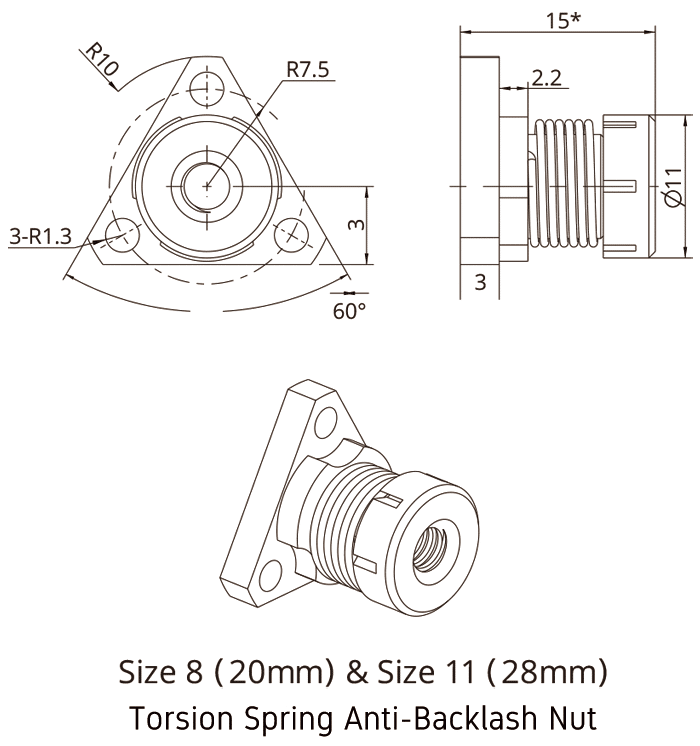

• Advanced Customization: Options include EK1/EK2 encoders for feedback, single/double stator stacks for force scaling, Teflon coating to reduce friction, anti-backlash nuts (external/non-captive), various end machining, and a power-off brake for critical safety.

Engineered for demanding environments, the SLSLA size 11 actuator excels in:

• Industrial and laboratory automation
• Medical device actuation
• Semiconductor handling
• Miniaturized linear transport systems

Robust performance, compact size, and extensive configuration options make this actuator a preferred solution for engineers requiring reliable, repeatable, and space-efficient motion control in tightly constrained or high-throughput environments.
