0615N5M02-185-3.0
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
6 mm Micro DC Gear Motor
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
6 mm Micro DC Gear Motor
| Parameter | Unit | 0615N5M02-185-3.0 |
|---|---|---|
| Voltage | V | 3.0 |
| Load current | mA | 50 |
| Max. output power | W | 0.09 |
| Max. efficiency | % | 44 |
| Back-EMF constant | mV/rpm | 0.1 |
| Torque constant | mNm/A | 1.4 |
| Speed/torque gradient | rpm/mNm | 94600 |
| Rotor inertia | gcm² | 0.015 |
| Weight | g | 2.5 |
| Operating temperature range | °C | -10~+80 |
| Terminal resistance | Ω | 18.5 |
| No-load speed | rpm | 18500 |
| No-load current | mA | 18 |
| Stall torque | mNm | 0.2 |
| Stall current | mA | 160 |
| Load torque | mNm | 0.05 |
| Load speed | rpm | 13770 |
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | — | 23~41 | 110~266 | 531~1708 | — | — |
| Max. rated torque | mNm | — | 33 | 33 | 33 | — | — |
| Max. momentary torque | mNm | — | 50 | 50 | 50 | — | — |

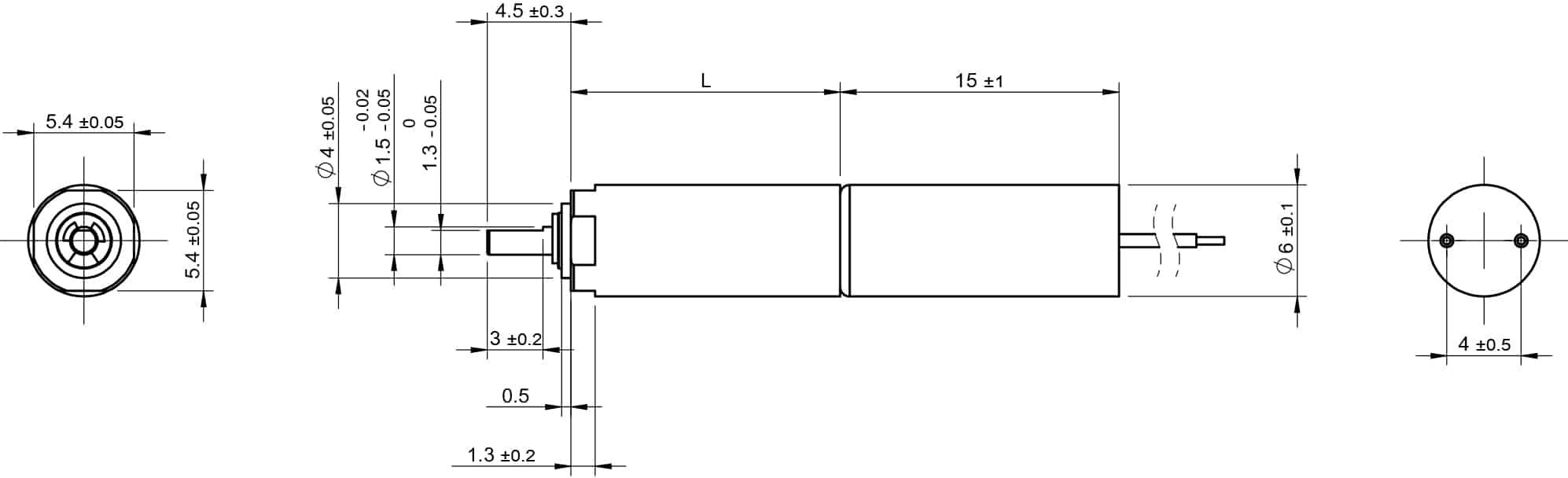

| Length(L) | mm | — | 12.1 | 14.5 | 16.9 | — | — |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Metal injection | – | – | – | – | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
