The DS85mm Series offers high-performance 85mm outer diameter BLDC motors, ideal for demanding industrial applications. Notable for their 408W rated power, 1.3 N·m torque, and integrated Hall sensor feedback, these motors deliver precise control and robust reliability. With Class B insulation and durable construction, the DS85mm Series meets the needs of automation, robotics, and motion control systems.

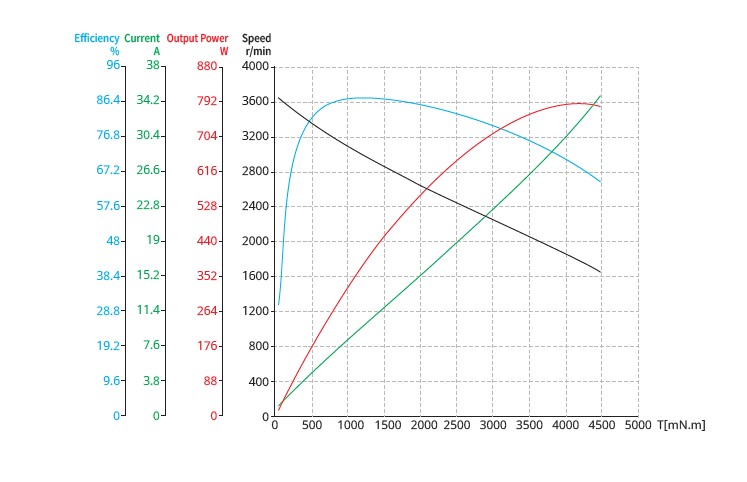

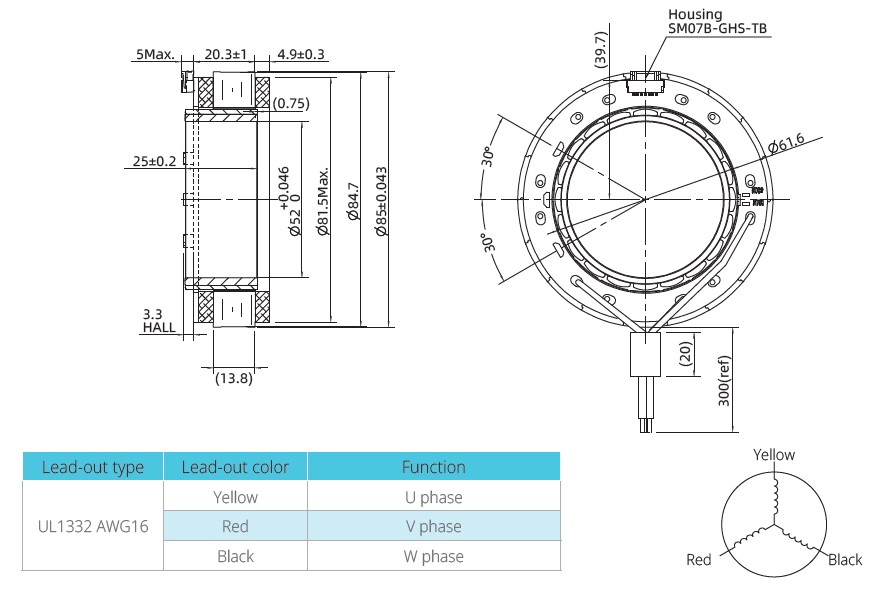

| Parameter | Unit | 85ZWC25X-1 |
|---|---|---|
| Stator Outer Diameter | mm | 85±0.043 |
| Rotor Inner Bore | mm | 52+0.046 |
| Number of Slots | 18 | |
| Number of Pole Pairs | 10 | |
| Phase Resistance | Ω | 0.165 |
| Phase Inductance | mH | 0.33 |
| Winding Connection Type | Star shape | |
| Insulation Class | B | |
| Duty Cycle | S2 | |
| Feedback Method | Hall sensor | |
| Commutation Angle | 120° | |
| Insulation Strength (Dielectric Strength) | 500VAC/1mA/1s | |
| Insulation Resistance | 100 MΩ/500VDC | |
| Stator Weight | g | 324 |
| Rotor Weight | g | 136 |
| No-Load Speed | RPM | 3650 |
| No-Load Current | A | 0.6(REF) |
| Rated Voltage | VDC | 48 |
| Rated Power | W | 408 |
| Rated Torque | N·m | 1.3 |
| Rated Speed | RPM | 3000 |
| Rated Current | A | 8.6 |
| Torque Constant | Nm/A | 0.16 |
| Back EMF Constant (RMS) | Vrms/Krpm | 9.7 |
| Peak Torque | N·m | 3.9 |
| Peak Current | A | 25.7 |
| Moment of Inertia | g·cm² | 1086 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
