| Parameter | Unit | 85ZWC25X-1 |
|---|---|---|

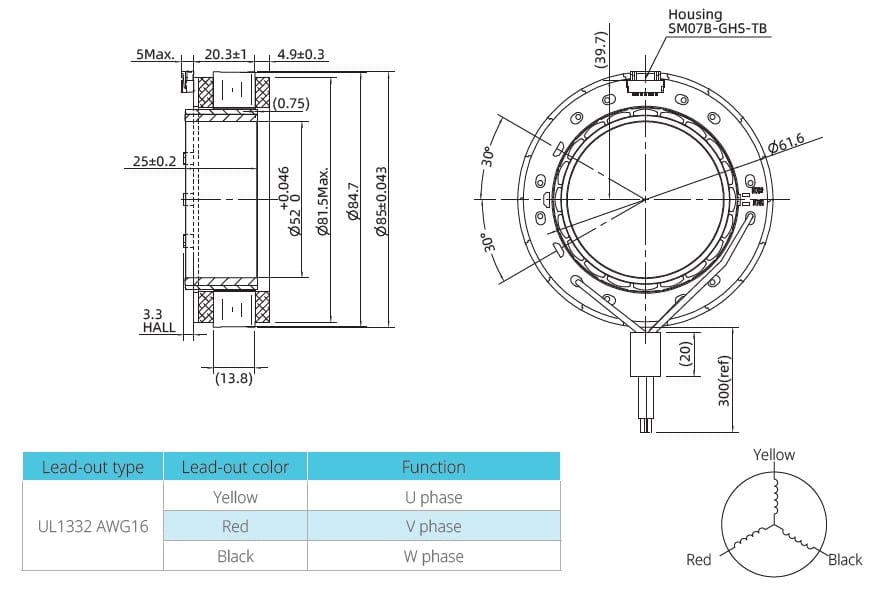

| Stator Outer Diameter | mm | 85±0.043 |
| Rotor Inner Bore | mm | 52+0.046 |
| Number of Slots | 18 | |
| Number of Pole Pairs | 10 | |
| Phase Resistance | Ohm | 0.165 |
| Phase Inductance | mH | 0.33 |
| Winding Connection Type | Star shape | |
| Insulation Class | B | |
| Duty Cycle | S2 | |
| Feedback Method | Hall sensor | |
| Commutation Angle | 120° | |
| Insulation Strength (Dielectric Strength) | 500VAC/1mA/1s | |
| Insulation Resistance | 100 MΩ/500VDC | |
| Stator Weight | g | 324 |
| Rotor Weight | g | 136 |

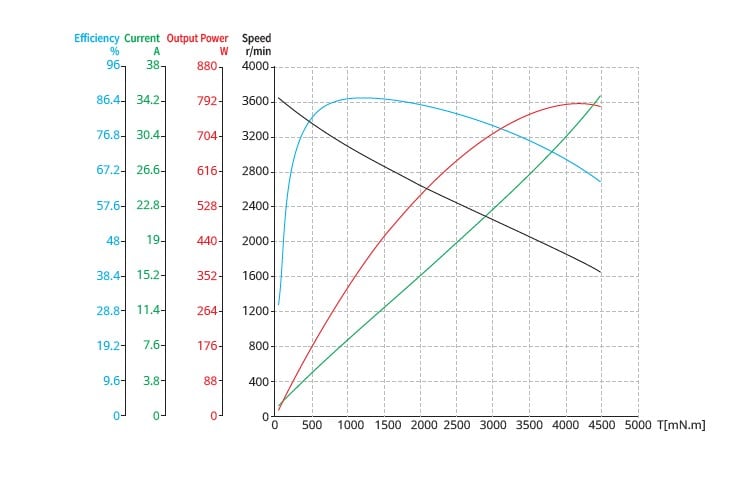

| No-Load Speed | RPM | 3650 |
| No-Load Current | A | 0.6(REF) |
| Rated Voltage | VDC | 48 |
| Rated Power | W | 408 |
| Rated Torque | N·m | 1.3 |
| Rated Speed | RPM | 3000 |
| Rated Current | A | 8.6 |
| Torque Constant | Nm/A | 0.16 |
| Back EMF Constant (RMS) | Vrms/Krpm | 9.7 |
| Peak Torque | N·m | 3.9 |
| Peak Current | A | 25.7 |
| Moment of Inertia | g·cm² | 1086 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
