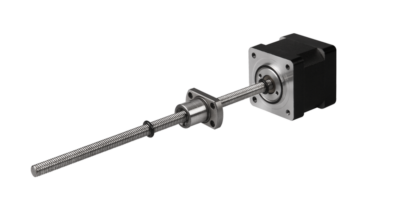

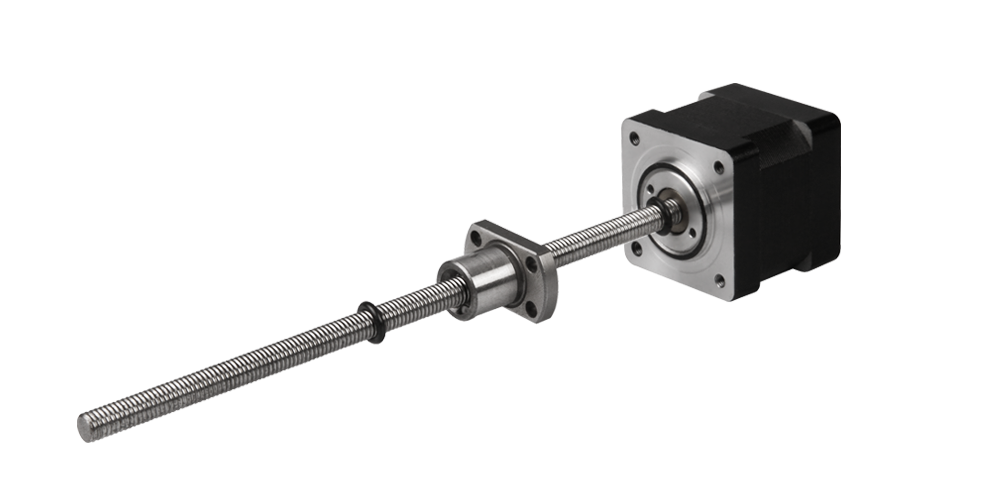

35mm Stepper Ball Screw Linear Actuators

SKU: SBSLA – Size 14 [35mm] Categories: Unkategorisiert, Hybrid Steppers

compare products

Motor Characteristics

Parameter	Unit	14E2110	14E2115	14E2210	14E2215
Voltage	V	3.5	2.7	6.0	4.0
Current	A	1.0	1.5	1.0	1.5
Resistance	Ω	3.5	1.8	6.0	2.7
Inductance	mH	3.6	1.9	7.2	3.2
Motor Length	mm	33.6	33.6	45.6	45.6
Lead Wire No.		4	4	4	4
Size	Nema	14	14	14	14
Flange size	mm	35	35	35	35

Ball Screw Specification

Ball screw type	0601	0602	0606	0610	0801	0802	0802.5	0805	0808	0810	0812
Ball size	Ø0.8	Ø0.8	Ø0.8	Ø1.2	Ø0.8	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875	Ø1.5875
Number of threads	1	1	2	2	1	1	1	1	2	2	2
Thread direction	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right	Right
Shaft root dia.	Ø5.3	Ø5.1	Ø5.2	Ø5.0	Ø7.3	Ø6.6	Ø6.3	Ø6.6	Ø6.7	Ø6.7	Ø6.7
Number of circuits	3.7×1	2.7×1	1.6×2	1.2×2	3.7×1	3.7×1	2.7×1	2.7×1	1.6×2	1.6×2	1.6×2
Shaft nut material	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H	SCM415H
Surface hardness	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62	HRC58~62
Anti-rust treatment	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil	Anti-rust oil
Grade	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7	C7

Nut size

Nut size	A	B	C	D	H	W	X	E	Position accuracy	Total run out	Axial play	Dynamic load[N]	Static load[N]
BS0601	26	4	17	13	16	20	3.4		±0.05	0.12	≤0.03	680	1200
BS0602	28	4	17	15	19	22	3.4		±0.05	0.12	≤0.03	750	1450
BS0606	27	4	17	14	16	21	3.4	5	±0.05	0.12	≤0.03	870	1600
BS0610	27	4	23	14	16	21	3.4	7.5	±0.05	0.12	≤0.03	950	1650
BS0801	29	4	17	16	18	23	3.4		±0.05	0.12	≤0.03	780	1650
BS0802	37	5	24	20	22	29	4.5		±0.05	0.12	≤0.03	2400	4100
BS0802.5	29	4	16	16	18	23	3.4		±0.05	0.12	≤0.03	1850	3000
BS0805	31	4	28	18	20	25	3.4		±0.05	0.12	≤0.03	1850	3000
BS0808	31	4	20	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800
BS0810	31	4	20	18	20	25	3.4	7	±0.05	0.12	≤0.03	2200	3800
BS0812	31	4	24	18	20	25	3.4	6	±0.05	0.12	≤0.03	2200	3800

Options

Encoder

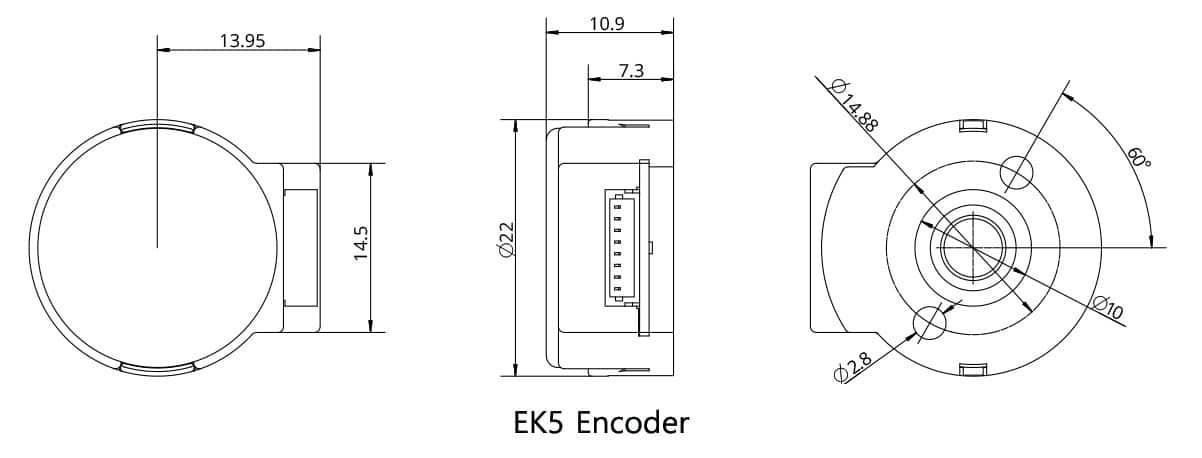

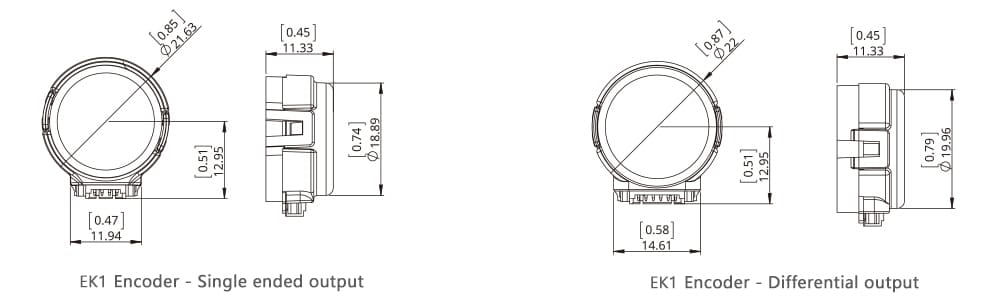

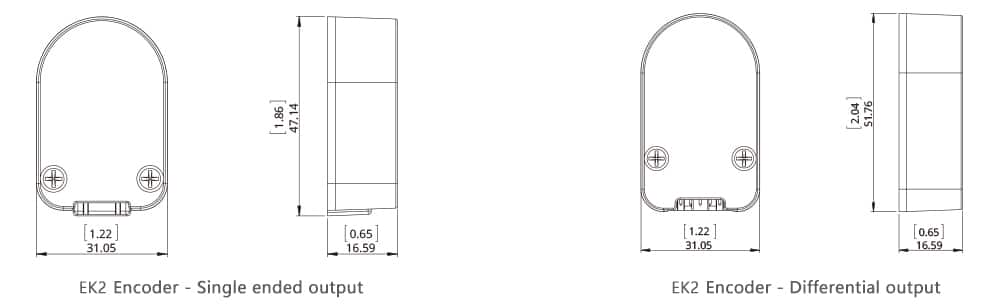

EK1 EK2 EK5

Screw End Machining

Threaded End Smooth End None Customize

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
