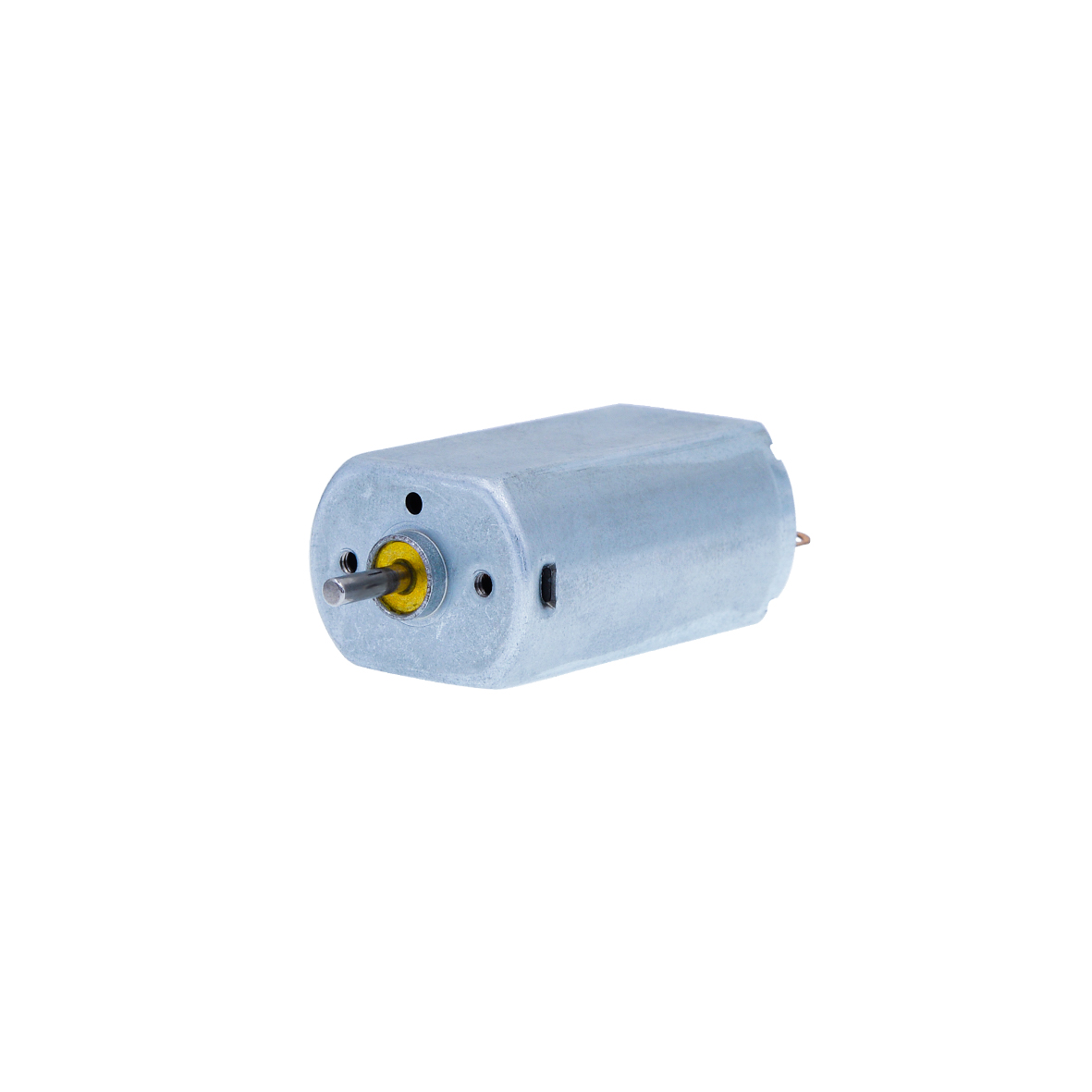

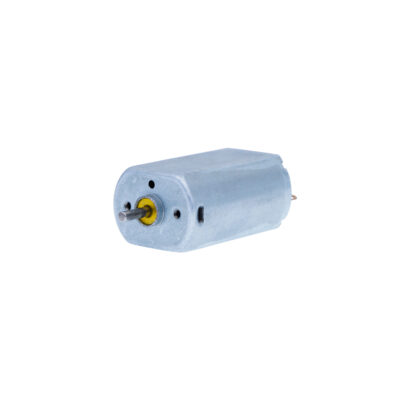

The C2032F series is a 20mm DC core motor with graphite brushes, available in 6V, 9V, and 12V options. It delivers high efficiency up to 64.9%, compact 33g weight, and stall torques up to 12.8 mNm. Designed for smart door locks, portable tools, and small electronic devices, featuring customizable shaft lengths and special coils for tailored integration.
| Parameter | Unit | C2032F41-0141 | C2032F41-0142 | C2032F41-0159 |
|---|---|---|---|---|
| Voltage | V | 6.0 | 9.0 | 12.0 |
| No-load speed | rpm | 7400 | 8200 | 8700 |
| No-load current | mA | 89 | 65 | 57 |
| Stall torque | mNm | 12.1 | 12.8 | 12.4 |
| Stall current | mA | 1576 | 1264 | 1101 |
| Load torque | mNm | 1.8 | 2.27 | 1.57 |
| Load speed | rpm | 6300 | 6750 | 7600 |
| Load current | mA | 310 | 277 | 189 |
| Max. output power | W | 2.35 | 2.76 | 2.83 |
| Max. efficiency | % | 64.9 | 64.5 | 56.9 |
| Torque constant | mNm/A | 8.14 | 10.71 | 11.89 |
| Speed/torque gradient | rpm/mNm | 611 | 639 | 701 |
| Varistor | Yes/No | Yes | Yes | Yes |
| Weight | g | 33 | 33 | 33 |
| Operating temperature range | °C | 0~+60 | 0~+60 | 0~+60 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | C2032F41-0141 |
|---|---|---|
| Voltage | V | 6.0 |
| No-load speed | rpm | 7400 |
| No-load current | mA | 89 |
| Stall torque | mNm | 12.1 |
| Stall current | mA | 1576 |
| Load torque | mNm | 1.8 |
| Load speed | rpm | 6300 |
| Load current | mA | 310 |
| Max. output power | W | 2.35 |
| Max. efficiency | % | 64.9 |
| Torque constant | mNm/A | 8.14 |
| Speed/torque gradient | rpm/mNm | 611 |
| Varistor | Yes/No | Yes |
| Weight | g | 33 |
| Operating temperature range | °C | 0~+60 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | C2032F41-0142 |
|---|---|---|
| Voltage | V | 9.0 |
| No-load speed | rpm | 8200 |
| No-load current | mA | 65 |
| Stall torque | mNm | 12.8 |
| Stall current | mA | 1264 |
| Load torque | mNm | 2.27 |
| Load speed | rpm | 6750 |
| Load current | mA | 277 |
| Max. output power | W | 2.76 |
| Max. efficiency | % | 64.5 |
| Torque constant | mNm/A | 10.71 |
| Speed/torque gradient | rpm/mNm | 639 |
| Varistor | Yes/No | Yes |
| Weight | g | 33 |
| Operating temperature range | °C | 0~+60 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | C2032F41-0159 |
|---|---|---|
| Voltage | V | 12.0 |
| No-load speed | rpm | 8700 |
| No-load current | mA | 57 |
| Stall torque | mNm | 12.4 |
| Stall current | mA | 1101 |
| Load torque | mNm | 1.57 |
| Load speed | rpm | 7600 |
| Load current | mA | 189 |
| Max. output power | W | 2.83 |
| Max. efficiency | % | 56.9 |
| Torque constant | mNm/A | 11.89 |
| Speed/torque gradient | rpm/mNm | 701 |
| Varistor | Yes/No | Yes |
| Weight | g | 33 |
| Operating temperature range | °C | 0~+60 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
