Characteristics | L1515N5M12-325-7.4 | L1515N5M13-250-12.0 | L1515N5M02-260-7.4 |
---|---|---|---|
Voltage | 7.4 V | 12 V | 7.4 V |
Terminal resistance | 1.6 Ω | 7.7 Ω | 2.5 Ω |
No-load speed | 32500 rpm | 25000 rpm | 26000 rpm |
No-load current | 60 mA | 35 mA | 70 mA |
Stall torque | 9.8 mNm | 6.8 mNm | 7.7 mNm |
Stall current | 4625 mA | 1558 mA | 2960 mA |
Load torque | 1.0 mNm | 1.0 mNm | 1.0 mNm |
Load speed | 29180 rpm | 21340 rpm | 22610 rpm |
Load current | 526 mA | 260 mA | 600 mA |
Max. output power | 8.3 W | 4.5 W | 5.2 W |
Max. efficiency | 79 % | 72 % | 72 % |
Back-EMF constant | 0.22 mV/rpm | 0.47 mV/rpm | 0.28 mV/rpm |
Torque constant | 2.15 mNm/A | 4.48 mNm/A | 2.65 mNm/A |
Speed/torque gradient | 3320 rpm/mNm | 3660 rpm/mNm | 3390 rpm/mNm |
Rotor inertia | 0.7 g·cm² | 0.7 g·cm² | 0.7 g·cm² |
Weight | 12 g | 12 g | 12.1 g |
Operating temperature range | -20~+85 | -20~+85 | -20~+85 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

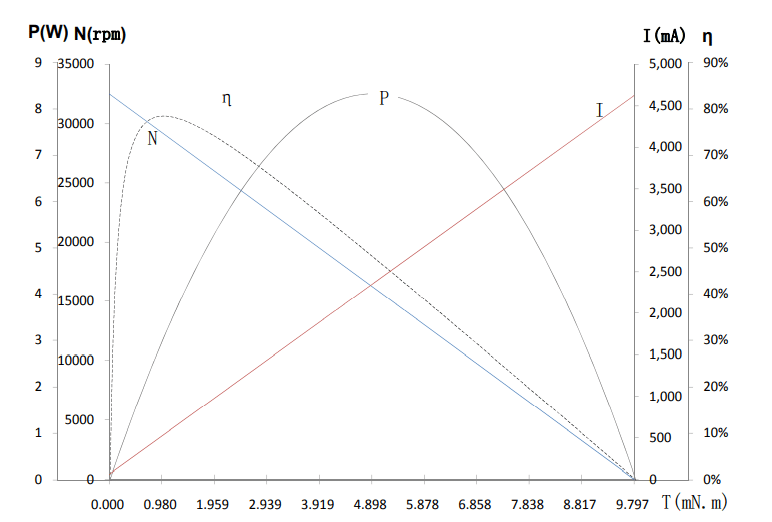

Specification | L1515N5M12-325-7.4 |
---|---|
Voltage | 7.4 V |
Terminal resistance | 1.6 Ω |
No-load speed | 32500 rpm |
No-load current | 60 mA |
Stall torque | 9.8 mNm |
Stall current | 4625 mA |
Load torque | 1.0 mNm |
Load speed | 29180 rpm |
Load current | 526 mA |
Max. output power | 8.3 W |
Max. efficiency | 79 % |
Back-EMF constant | 0.22 mV/rpm |
Torque constant | 2.15 mNm/A |
Speed/torque gradient | 3320 rpm/mNm |
Rotor inertia | 0.7 g·cm² |
Weight | 12 g |
Operating temperature range | -20~+85 ℃ |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Specification | L1515N5M13-250-12.0 |
---|---|
Voltage | 12 V |
Terminal resistance | 7.7 Ω |
No-load speed | 25000 rpm |
No-load current | 35 mA |
Stall torque | 6.8 mNm |
Stall current | 1558 mA |
Load torque | 1.0 mNm |
Load speed | 21340 rpm |
Load current | 260 mA |
Max. output power | 4.5 W |
Max. efficiency | 72 % |
Back-EMF constant | 0.47 mV/rpm |
Torque constant | 4.48 mNm/A |
Speed/torque gradient | 3660 rpm/mNm |
Rotor inertia | 0.7 g·cm² |
Weight | 12 g |
Operating temperature range | -20~+85 ℃ |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Specification | L1515N5M02-260-7.4 |
---|---|
Voltage | 7.4 V |
Terminal resistance | 2.5 Ω |
No-load speed | 26000 rpm |
No-load current | 70 mA |
Stall torque | 7.7 mNm |
Stall current | 2960 mA |
Load torque | 1.0 mNm |
Load speed | 22610 rpm |
Load current | 600 mA |
Max. output power | 5.2 W |
Max. efficiency | 72 % |
Back-EMF constant | 0.28 mV/rpm |
Torque constant | 2.65 mNm/A |
Speed/torque gradient | 3390 rpm/mNm |
Rotor inertia | 0.7 g·cm² |
Weight | 12.1 g |
Operating temperature range | -20~+85 ℃ |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
