Pallet Conveyor Motoroller 89 045 04

Name: Pallet Conveyor Motoroller 89 045 04 - KOCO MOTION
SKU: Pallet Conveyor Motoroller-Pallet Conveyor Motoroller 89 045 04

incl. 19% VAT

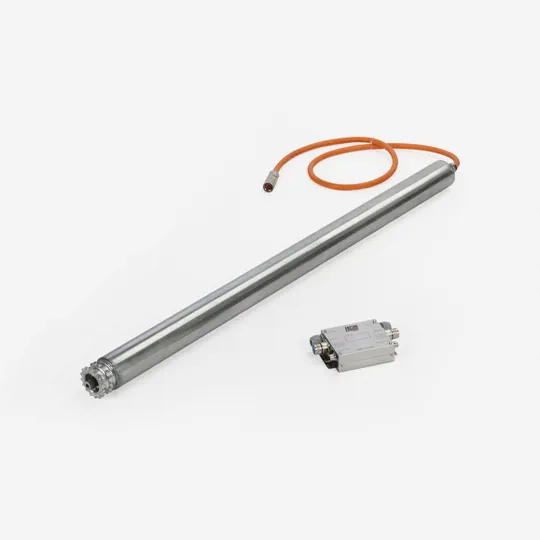

Pallet conveyor Motoroller
Power Pack motoroller 89 geared solution for driving pallet conveyor application
Load up to 1500 kg

SKU: Pallet Conveyor Motoroller-Pallet Conveyor Motoroller 89 045 04 Category: Gearless Rollers

Description

Description

Pallet conveyor Motoroller
Power Pack motoroller 89 geared solution for driving pallet conveyor application
Load up to 1500 kg

Specification	Pallet Conveyor Motoroller 89 045 04
Stall torque	73 Nm
Peak torque	120 Nm
Rated torque	43 Nm
Rated working speed	0.27 m/s
Rated voltage	48 Vdc
Rated voltage	–
Rated output power	355 W
Stall current	9.8 Arms
Peak current	16.9 Arms
Rated current	6.4 Arms
Torque constant +/- 10%	0.187 Nm/Arms
Voltage constant +/- 10%	11.3 Vrsm/Krpm
Phase/pase resistance +/- 10% @25°C	0.67 Ω
Phase/pase resistance +/- 10% @25°C	2.1 mH
Electrical time constant	3.1 ms
Rotor inertia	0.526 kg·cm²
Axial shaft load @ 80 rpm	240 N
Radial shaft load @80 rpm applied on rotor’s centering	3800 N

Options

Feedback

H1 Hall Sensor

Connection

D0 – cable output with connectors

Mechanical Arrangement

Fixed shaft: 01 – Male tread Tube type 01: Standard tube Indle shaft: AA – hex spring loaded Indle shaft: AB – female thread

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

Produkt

datasheet

Dimensions-89 (pdf, 3.45M)

Torque-Speed-Chart-89 (pdf, 1.82M)

MTR-Servodrives (pdf, 3.4M)
