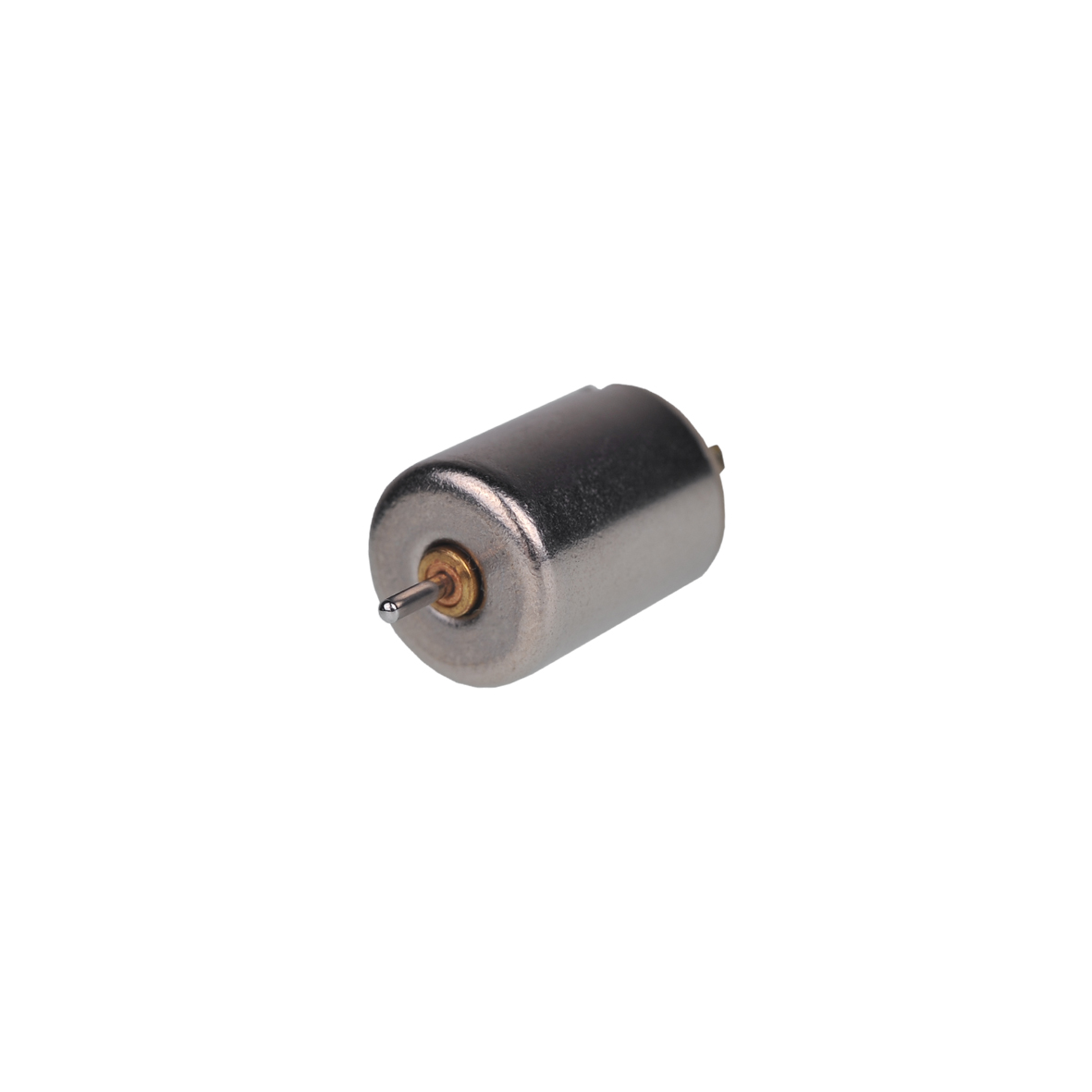

L1015N5M Series – 10mm Micro DC Motors
The L1015N5M family features precision-engineered 10mm DC motors with precious metal brushes, delivering exceptional reliability and performance in compact applications. Supported operating voltages range from 3.7V to 6.0V, allowing seamless integration with a variety of power sources. With peak no-load speeds up to 26,700 rpm and maximum efficiency of 72%, these motors combine power density with high operational efficiency.
- Key Technical Specifications:
- Voltage range: 3.7V, 5.0V, 6.0V
- No-load speed: 21,200–26,700 rpm
- Stall torque: up to 2.32 mNm
- Maximum output power: up to 1.52 W
- Rotor inertia: as low as 0.07 gcm²
- Operating temperature: -20°C to +65°C
- Lightweight construction: 5.1g
- Efficiency: up to 72%
- Applications:
- Miniature UAV propulsion and actuation
- Remote control hobby products
- Precision drives for small household appliances
- Custom Options:
- Customized shaft and lead wire lengths
- Special coil windings
- Gearhead integration
With their small form factor, high rotational speeds, and customizable features, the L1015N5M series delivers robust micro motion solutions for demanding, space-constrained applications across consumer and industrial markets.
