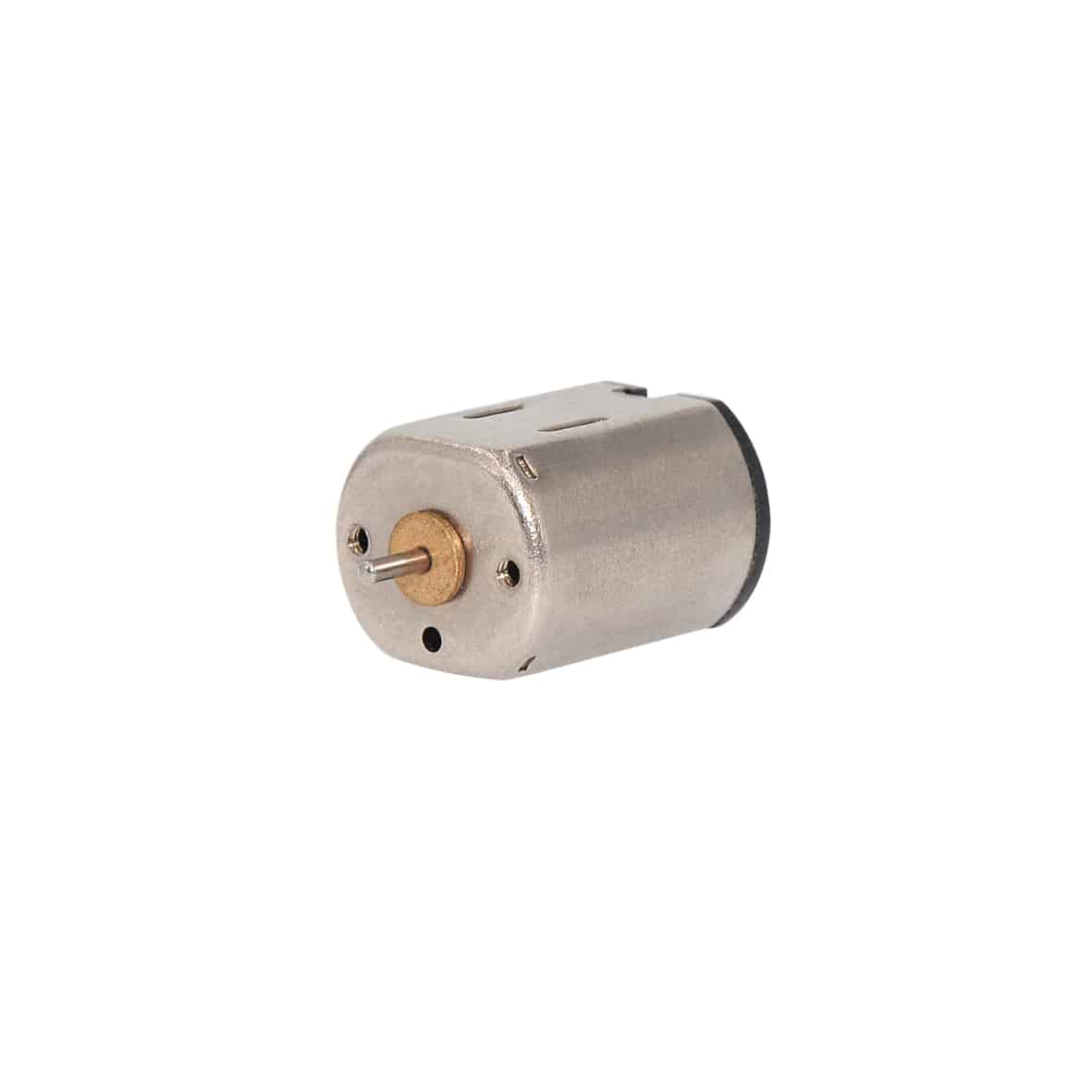

Description
Precious Metal Commutation
| Specification | C1215F13-0086 |
|---|---|
| Voltage | 3.5 V |
| Terminal resistance | 1.7 Ω |
| No-load speed | 25000 rpm |
| No-load current | 100 mA |
| Stall torque | 1.80 mNm |
| Stall current | 1506 mA |
| Load torque | 0.294 mNm |
| Load speed | 20910 rpm |
| Load current | 330 mA |
| Max. output power | 1.18 W |
| Max. efficiency | 56.5 % |
| Back-EMF constant | 0.13 mV/rpm |
| Torque constant | 1.28 mNm/A |
| Speed/torque gradient | 13912 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 5.4 g |
| Operating temperature range | -20~+80 °C |
Applications
security equipment
small electronic products
remote control model aircraft
personal care products
portable electric tools
