Description

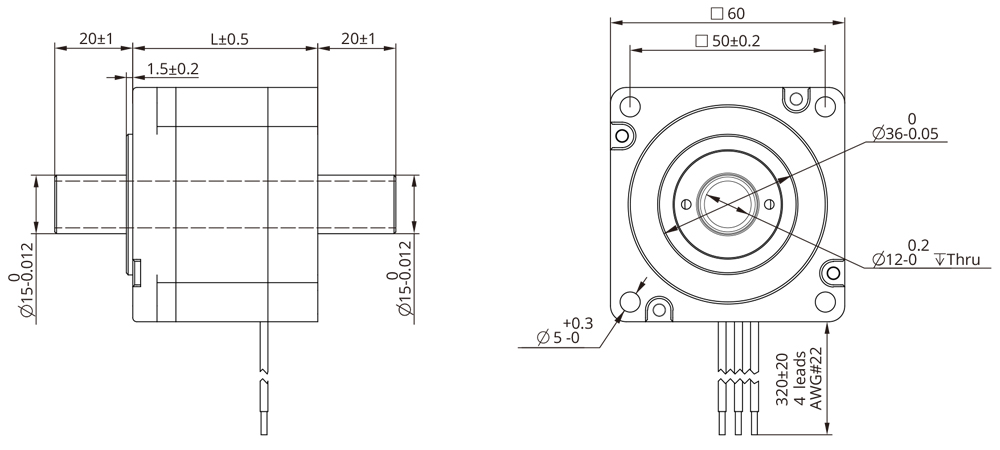

The size 24 [60mm] Hollow Shaft Stepper Motor has Max. 1.9N·m of holding torque.

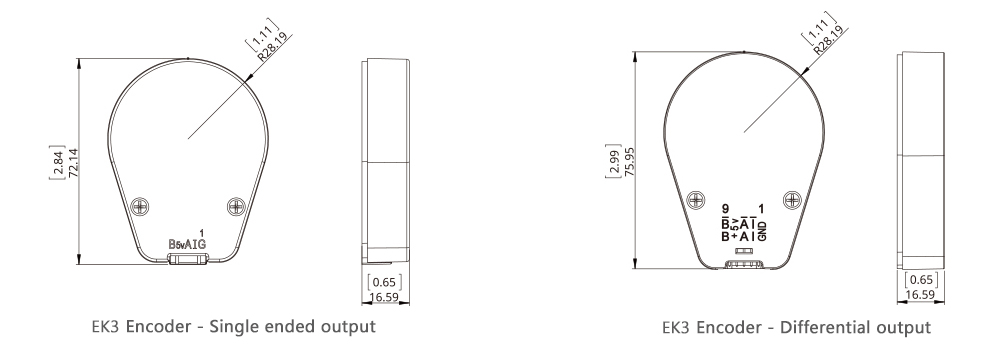

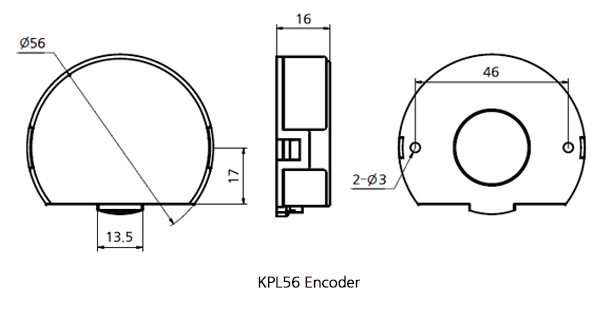

For special windings or customization of shaft, also hollow type of encoder assembly, Please contact KOCO’s for further information.
incl. 19% VAT
The size 24 [60mm] Hollow Shaft Stepper Motor has Max. 1.9N·m of holding torque.
For special windings or customization of shaft, also hollow type of encoder assembly, Please contact KOCO’s for further information.
The size 24 [60mm] Hollow Shaft Stepper Motor has Max. 1.9N·m of holding torque.
For special windings or customization of shaft, also hollow type of encoder assembly, Please contact KOCO’s for further information.

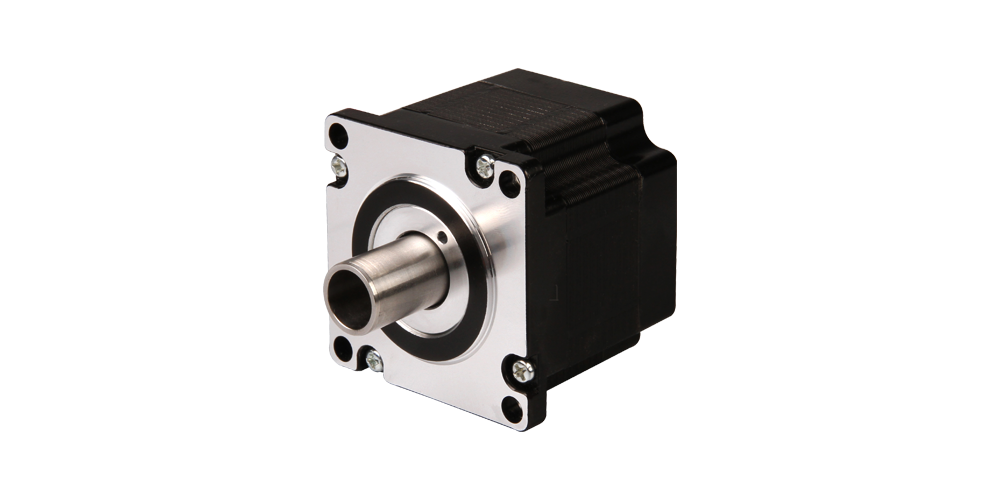

Specification | 24HS2047 |
---|---|
Rated Voltage | 1.52 A |
Current | 4 V |
Resistance | 0.38 Ω |
Inductance | 0.78 mH |
Holding Torque | 0.9 Nm |
Detent Torque | 0.03 Nm |
Motor length | 47 mm |
Size | 34 Nema |
Flange size | 60 mm |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
