Description

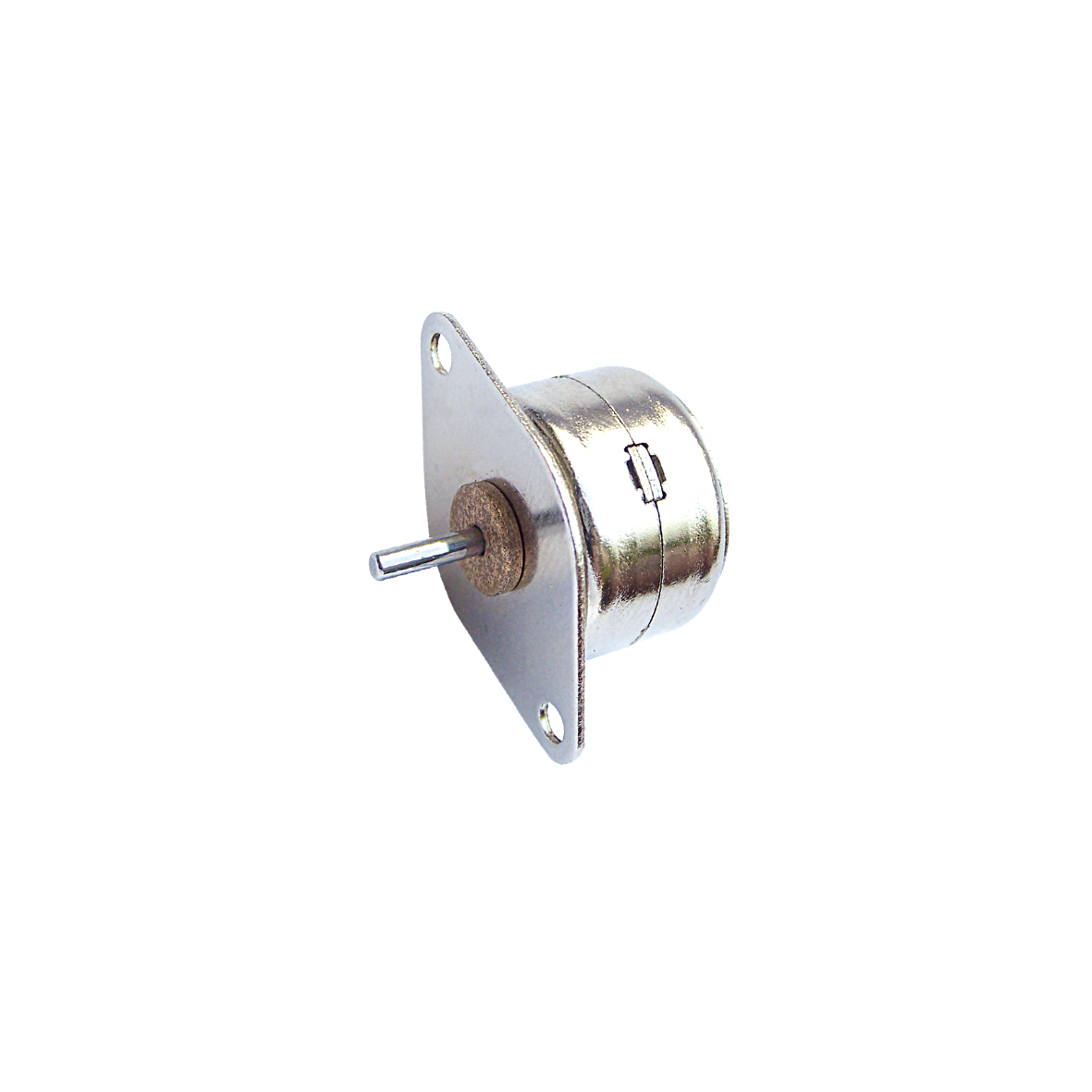

Permanent Magnet
| Parameter | Unit | 1511P0209-013-5.0-002 |
|---|---|---|

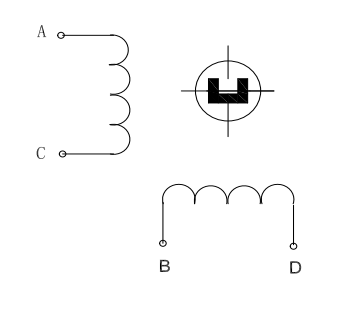

| No. of phase | 2 | |

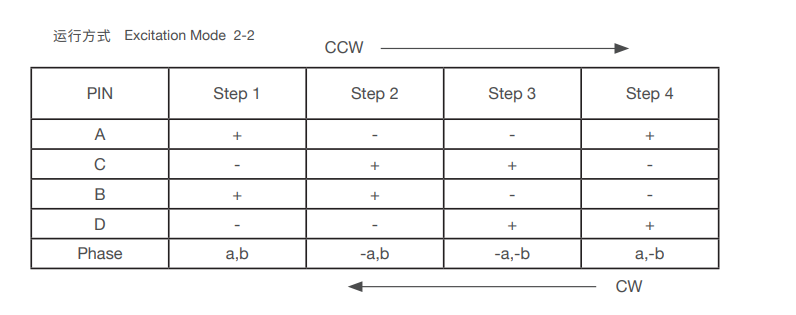

| Excitation Mode | 2-2 | |
| Voltage | V | 5.0 |
| Resistance | Ohm | 12.6 |
| Step Angle | Deg | 18° |
| Current | A | 0.4 |
| No-load Pull-in Frequency | pps | ≥1200 |
| No-load Pull-out Frequency | pps | ≥1300 |
| Detent Torque | mNm | 0.40 |
| Pull-in Torque | mNm | 1 |
| Load pull-in Frequency | pps | ≥800 |
| Weight | g | 9.0 |
| Operating temperature range | °C | -20~+80 |
Applications
office automation systems
medical equipment
mini household appliances
toys
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
